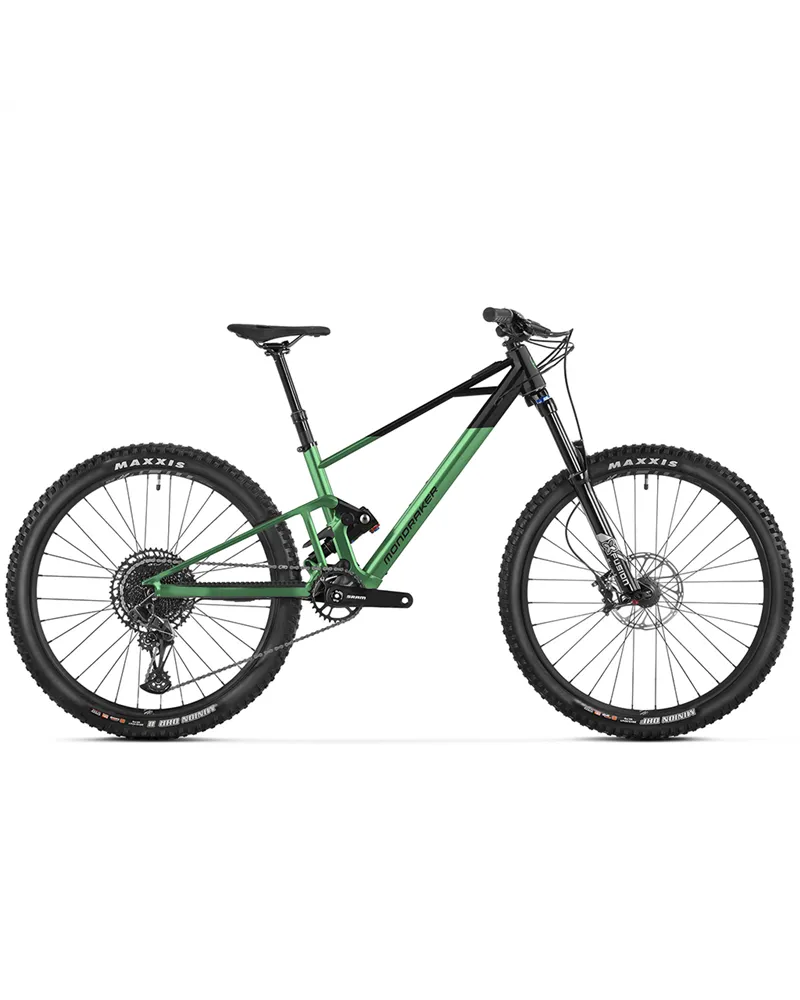

Mondraker F-Play 26 Sram S200 Eagle12sp Mahle X-30 - 250Wh e-Bike, Mintcore MY27
Mondraker F-Play 26 Sram S200 Eagle12sp Mahle X-30 - 250Wh e-Bike, Mintcore MY27
Mondraker F-Play 26 Sram S200 Eagle12sp Mahle X-30 - 250Wh e-Bike, Mintcore MY27
010.27392
€3,499.00
VAT included
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

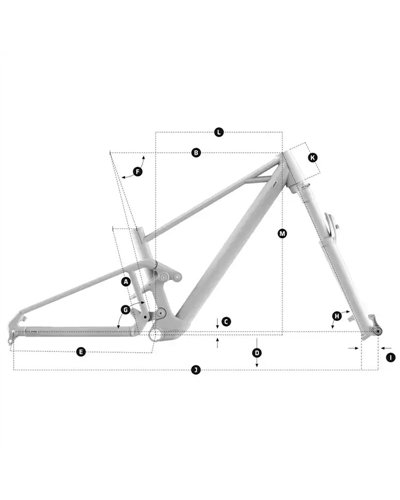

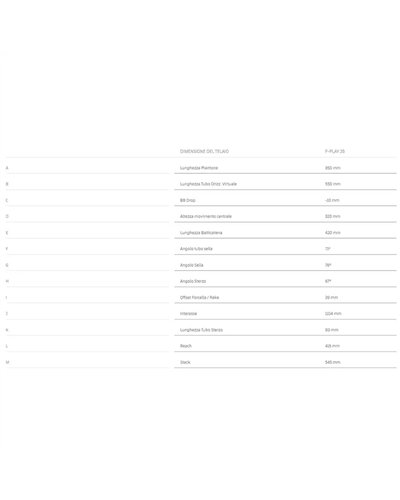

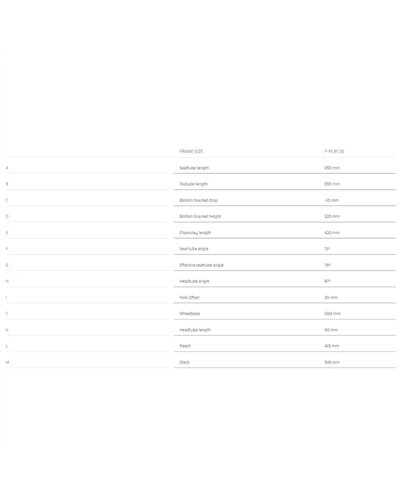

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: F-Play 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible
Sizes: One size: 350mm
Rear shock: X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Shock settings: A-Tune light compression
Fork: X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Beehive, 1lock-on, 135mm
Seatpost: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm
Saddle: SDG Fly JR
Front brake: Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads
Rear brake: Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads
Brake lever: Shimano MT501, servo wave, alloy lever
Rims: MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Mahle-Ebikemotion X-30, HG freehub
Front tire: Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead
Crankset: Sram S200 Eagle, DUB axle, Direct mount chain ring, 155mm
Rings: 30T, Steel, Eagle
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Pedals: SDG Slater JR
Chain: Sram S100 Eagle, 12s, PowerLock
Rear derrailleur: Sram S200 Eagle,12s
Shift levers: Sram Trigger S100, 12s, X-Actuation
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M077
Display: iWoc ONE Head Unit
Motor: Mahle X-30, Drive Unit
Battery: Mahle IX250Wh
010.27392
Data sheet
- Diameter
- 26"
- Gender
- Junior - Kids
- Material
- Aluminium
- Code
- MDK27-AGG210726
- Shifting
- Mechanical
- Brakes
- Hydraulic disc
- Groupset
- SRAM Other
- Motor
- Mahle
- Suspension
- Full suspension
- Type
- Junior - Kids
- Battery capacity
- 250 Wh
No customer reviews for the moment.
Related Products ( 9 other products in the same category )
- -10%
- -10%
- Out-of-Stock
- -10%
- Out-of-Stock
- -15%
Who it is for and how to use it
Ideal for
Young off-road riders
Designed for off-road use and off-road discipline, with a unisex setup and an Alluminio 6061 Alloy Stealth Evo frame.
Those looking for a compact 26" e-bike
The 26" wheels and the One size: 350 mm sizing make it suitable for compact use and easy handling on rough terrain.
Those who want electric assistance for off-road riding
The Mahle X-30 motor and 250 Wh battery are designed for off-road rides with integrated electric assistance.
Use cases
Ideal
Technical off-road trails
The Zero Suspension System with 130 mm of travel helps manage rough sections and demanding passages.
Zero Suspension · 130 mm of travel · Off-road
Ideal
Rides with steep and punchy sections
The Sram S200 Eagle,12s groupset with 11-50T cassette offers ratios suited to climbs and changes of pace.
Sram S200 Eagle,12s · 11-50T · 1x drivetrain
Very suitable
Descending and braking control
The Shimano MT520 brakes with 4-piston caliper and RT56 180 mm IS 6 bolts disc are set up for firm control.
Shimano MT520 · 4 pistons · 180 mm disc
Suitable
Use on junior bikes with a compact setup
The 26" size and One size: 350 mm sizing make it consistent with a compact configuration.
26" · One size 350 mm · Junior - Kids
Who it is for
Young riders focused on off-road
- Looks for
- A compact-geometry e-bike with Mahle X-30 motor and a setup for dirt tracks.
- Why
- This configuration combines 26" wheels, 130 mm suspension and a 1x drivetrain for off-road use.
Frequently asked questions
What motor does this e-bike use?
It uses the Mahle X-30, Drive Unit. It is an integrated electric system for off-road use.
How much energy does the battery provide?
The battery is 250 Wh. This is a useful figure for assessing range according to the type of ride.
What type of suspension does it have?
It uses the Zero Suspension System with 130 mm of travel. This setup is designed to absorb impacts on rough trails.
What drivetrain does it use?
It is equipped with Sram S200 Eagle,12s with Sram Trigger S100, 12s shifter. The setup has 12 speeds.
What brakes does it use?
Shimano MT520 brakes are fitted, with a 4-piston caliper and RT56 180 mm IS 6 bolts disc. The system is suitable for precise control off-road.
Show all (6)
What is the frame size?
The size is One size: 350 mm. The bike is therefore offered in a single size.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
