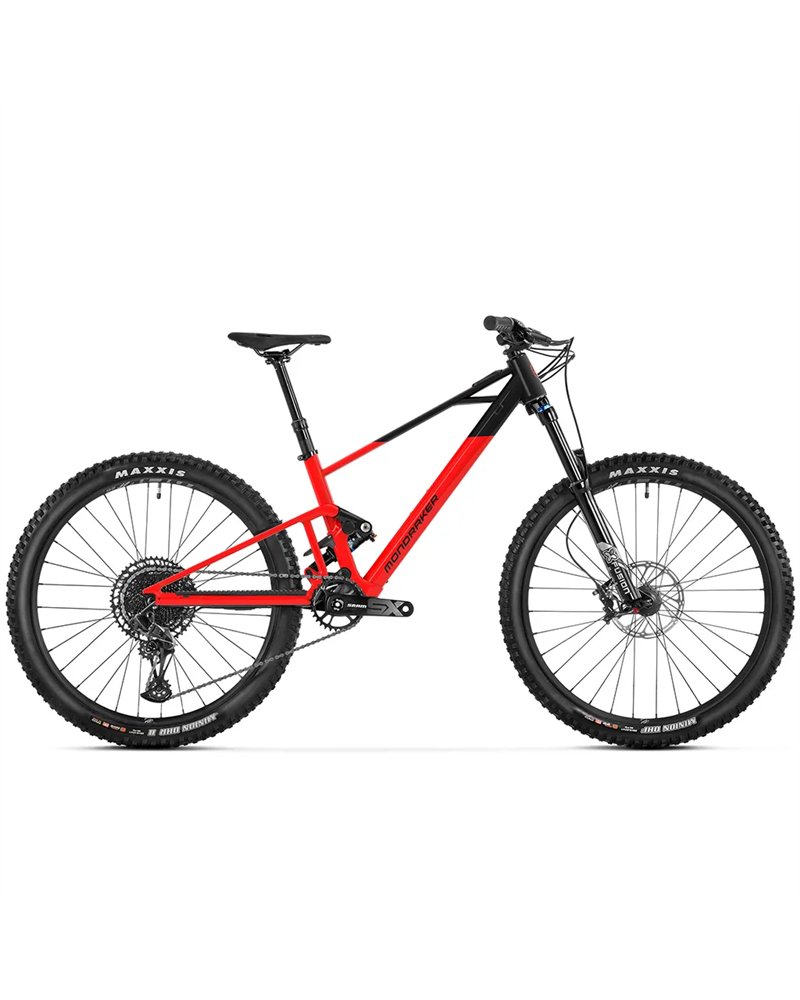

Mondraker F-Play 26 Shimano Deore 12sp Mahle X-30 - 250Wh e-Bike, Chili Red MY26
Mondraker F-Play 26 Shimano Deore 12sp Mahle X-30 - 250Wh e-Bike, Chili Red MY26
Mondraker F-Play 26 Shimano Deore 12sp Mahle X-30 - 250Wh e-Bike, Chili Red MY26
010.26395
€3,499.00
VAT included
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

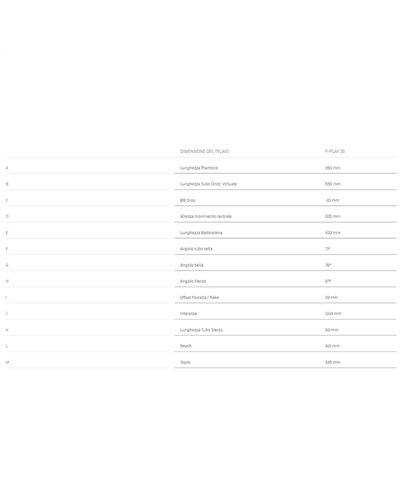

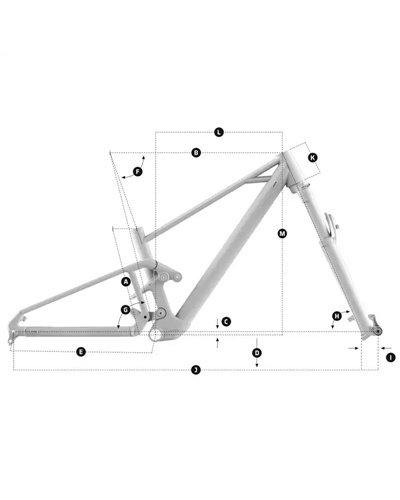

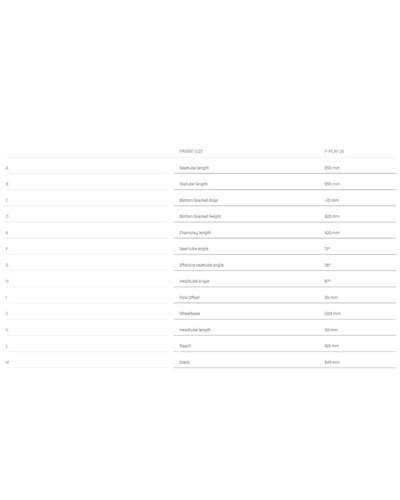

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible
Sizes: One size: 350mm
Rear shock: X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
Shock settings: A-Tune light compression
Fork: X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Beehive, 1lock-on, 135mm
Seatpost: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm
Saddle: SDG Fly JR
Front brake: Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads
Rear brake: Shimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads
Brake lever: Shimano MT501, servo wave, alloy lever
Rims: MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Mahle-Ebikemotion X-30, HG freehub
Front tire: Maxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead
Crankset: Prowheel DMJ-CR094S-TT, Direct mount chainring, 155mm
Rings: 30T, steel
Bottom bracket: Prowheel PW-MBB73 73mm
Pedals: SDG Slater JR
Chain: Shimano Deore M6100, 12s, Quick-link
Rear derrailleur: Shimano Deore M6100, SGS, Shadow+, 12s
Shift levers: Shimano Deore M6100, Rapid Fire Plus, 12s
Casette: Sunrace CSMZ600, 11-51T
Derailleur hanger: Mondraker M077
Weight: 17,8 kg
Display: iWoc ONE Head Unit
010.26395
Data sheet
- Diameter
- 26"
- Gender
- Junior - Kids
- Material
- Aluminium
- Code
- MDK26-AGG140126
- Shifting
- Mechanical
- Brakes
- Hydraulic disc
- Groupset
- Shimano Deore
- Motor
- Mahle
- Suspension
- Full suspension
- Type
- Junior - Kids
- Battery capacity
- 250 Wh
No customer reviews for the moment.
Related Products ( 9 other products in the same category )
- -10%
- -10%
- Out-of-Stock
- -10%
- -15%
Who it is for and how to use it
Ideal for
Junior riders looking for a complete 26" e-bike
Designed for Junior - Kids use, with a 6061 Alloy frame, 26" wheels and a Full set-up for handling and control on varied routes.
Those wanting Shimano Deore 12v transmission and hydraulic disc brakes
Suitable for those looking for a bike with Shimano Deore 12v drivetrain and hydraulic disc brakes, with a technical set-up consistent with junior sport use.
Those seeking a junior e-bike with Mahle X-30 motor
Suitable for riders looking for a junior e-bike with Mahle X-30 motor, 250 Wh battery and a weight of 17.8 kg.
Use cases
Ideal
Junior rides on mixed terrain
The Full configuration, 26" wheels and Shimano Deore 12v transmission make it suitable for junior outings on mixed surfaces.
Full · Ruote 26" · Shimano Deore 12v
Very suitable
Sport use with braking control
The Shimano MT520 hydraulic disc brakes with 180 mm rotors provide precise braking control in sport use.
Freni a disco idraulici · Shimano MT520 · Rotori 180 mm
Very suitable
Junior rides with electric assistance
The Mahle X-30 motor and 250 Wh battery support the electric use intended for the Junior - Kids category.
Mahle X-30 · 250 Wh · Junior - Kids
Suitable
Technical use with suspension adjustments
The X-Fusion Slant RC 26 fork and X-Fusion 02PRO R shock provide useful adjustments to adapt the bike to the route.
X-Fusion Slant RC 26 · X-Fusion 02PRO R · Regolazioni sospensioni
Who it is for
Families looking for a technical junior e-bike
- Looks for
- A Junior - Kids bike with Mahle X-30 motor, 250 Wh battery and Shimano components.
- Why
- This set-up combines electric assistance, 26" wheels and technical components aligned with junior use.
Young cyclists wanting a full-suspension bike with sport components
- Looks for
- A full-suspension aluminium bike with Shimano Deore 12v and hydraulic disc brakes.
- Why
- The F-Play 26 integrates full suspension, a 12v groupset and MT520 brakes for structured sport use.
Frequently asked questions
What frame does the Mondraker F-Play 26 use?
It uses a 6061 Alloy frame with Zero Suspension system and 130 mm travel.
What is the drivetrain group?
The bike is fitted with Shimano Deore 12v. It is a drivetrain designed for precise, complete use in the junior category.
What brakes does it use?
It is fitted with Shimano MT520 hydraulic disc brakes with 4-piston caliper and 180 mm rotors.
What size is it?
The size is single: 350 mm.
What motor and battery does it use?
It is fitted with a Mahle X-30 motor and a 250 Wh battery. This set-up is suitable for the Junior - Kids use indicated in the specification.
Show all (6)
How much does the bike weigh?
The stated weight is 17.8 kg without pedals.
