Mondraker Play 26 Sram NX 11s Mahle-Ebikemotion X-35 - 250Wh e-Bike, Flame Red
Mondraker Play 26 Sram NX 11s Mahle-Ebikemotion X-35 - 250Wh e-Bike, Flame Red
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

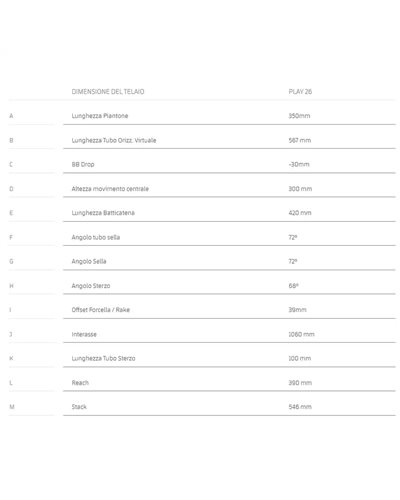

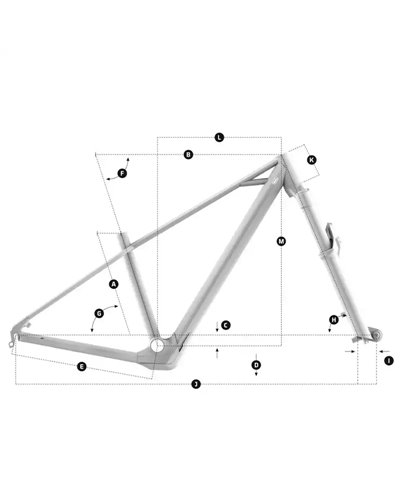

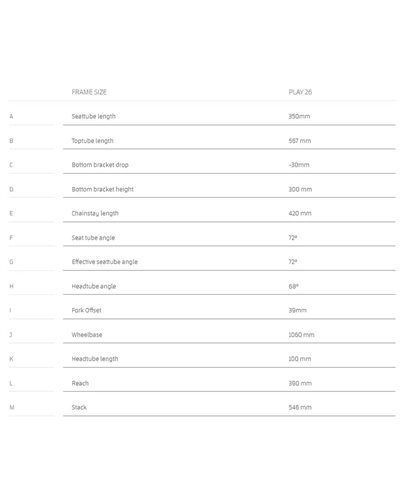

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Play 26 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes: One size: 350mm
Fork: X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset: Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on
Seatpost: MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Saddle: SDG Fly JR
Front brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Mahle-Ebikemotion X-35, HG freehub
Front tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Rear tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Crankset: Samox DM 30T steel, 152mm
Rings: 30T, steel
Bottom bracket: BSA, 73mm
Pedals: SDG Slater JR
Chain: Sram PC1110 11s, Powerlock
Rear derrailleur: Sram NX, 11s, long cage, X-actuation 1:1
Shift levers: Sram trigger NX 11s, X-actuation 1:1
Casette: Sram PG 1030 11-42T, 11s
Derailleur hanger: Mondraker M077
Weight: 16,0 kg
Display: Mahle-Ebikemotion
Motor: Mahle-Ebikemotion X-35
Battery: Mahle-Ebikemotion Internal 250Wh
Data sheet
No customer reviews for the moment.
Junior rider looking for an aluminium e-bike
Designed for those seeking a Junior - Kids bike with a Play 26 Alloy 6061 Stealth Evo frame, 250 Wh internal battery and a low weight of 16.0 kg.
Young cyclists wanting a SRAM NX 11s drivetrain
Suitable for those who want simple pedalling control with a SRAM NX 11s drivetrain and 11-42T cassette.
Anyone seeking hydraulic disc braking and front suspension
Suitable for those who want hydraulic disc braking and front suspension for more stable, manageable cycling use.
Ideal
Junior cycling outings on mixed terrain
With 26" wheels, front suspension and hydraulic disc brakes, it is suitable for rides on varied routes.
Ruote 26" · Sospensione front · Freni a disco
Ideal
Assisted riding for young cyclists
The Mahle-Ebikemotion X-35 motor and 250 Wh internal battery support e-bike use for cycling.
Motore Mahle-Ebikemotion X-35 · Batteria 250 Wh · E-bike
Very suitable
Technical use with 11-speed shifting
The SRAM NX 11s drivetrain with SRAM PG 1030 11-42T cassette provides gearing suited to controlled cycling use.
SRAM NX 11s · Cassetta 11-42T · Cambio meccanico
Very suitable
Routes requiring modulated braking
The SRAM Level brakes with 160 mm Centerline discs and reach adjustment are suitable for precise lever control.
SRAM Level · Disco 160 mm · Regolazione reach
Parent looking for an e-bike for junior riders
It uses a Mahle-Ebikemotion X-35 motor. It is a system designed for cycling use with integrated electric assistance.
The battery is 250 Wh. This figure indicates a capacity suited to junior use with electric assistance.
It uses a SRAM NX 11s groupset with SRAM NX rear derailleur and SRAM PG 1030 11-42T cassette.
It is fitted with SRAM Level hydraulic disc brakes with 160 mm Centerline discs. Braking is set up for precise lever control.
The declared weight is 16.0 kg without pedals. This is a useful figure for assessing handling by a junior rider.
It uses 26" wheels. This size is consistent with Junior - Kids use.
The frame size is one size, 350 mm. This is how it is listed in the technical sheet.
