Mondraker Play 26 Sram GX Eagle 12sp Mahle-Ebikemotion X-35 - 250Wh e-Bike, Aura Blue MY26

Mondraker Play 26 Sram GX Eagle 12sp Mahle-Ebikemotion X-35 - 250Wh e-Bike, Aura Blue MY26

Reference 010.26393

€2,999.00

€2,699.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: One Size Fits All (Contact Us)

One Size Fits All (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

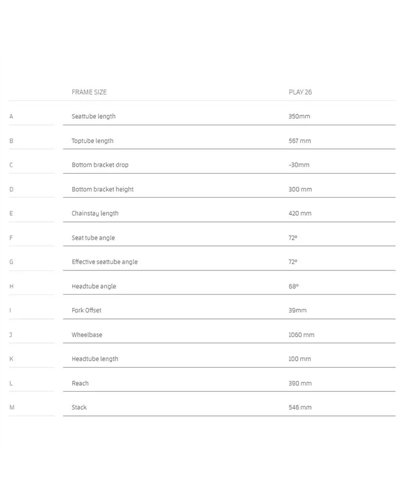

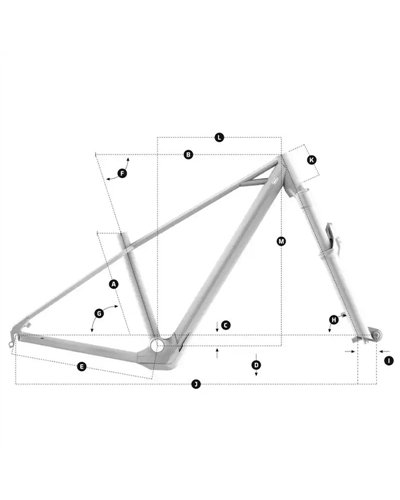

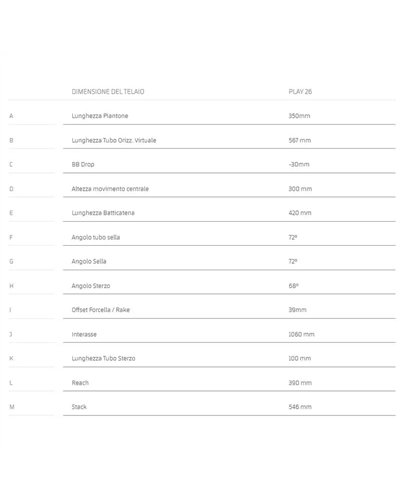

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Play 26 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Sizes: One size: 350mm
Fork: X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Headset: Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Beehive, 1lock-on, 135mm
Seatpost: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
Saddle: SDG Fly JR
Front brake: Sram G2 R, 4-piston caliper, Onoff Cnc 180mm IS 6 bolts two-piece rotor, steel-backed organic pads
Rear brake: Sram G2 R, 4-piston caliper, Onoff Cnc 160mm IS 6 bolts two-piece rotor, steel-backed organic pads
Brake lever: Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims: MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Mahle-Ebikemotion X-35, HG freehub
Front tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Rear tire: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Crankset: Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm
Rings: 30T, steel, X-Sync
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Pedals: SDG Slater JR
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Casette: 11-52T, 12s
Derailleur hanger: Mondraker M077
Weight: 15,9 kg
Display: Mahle-Ebikemotion
Motor: Mahle-Ebikemotion X-35
