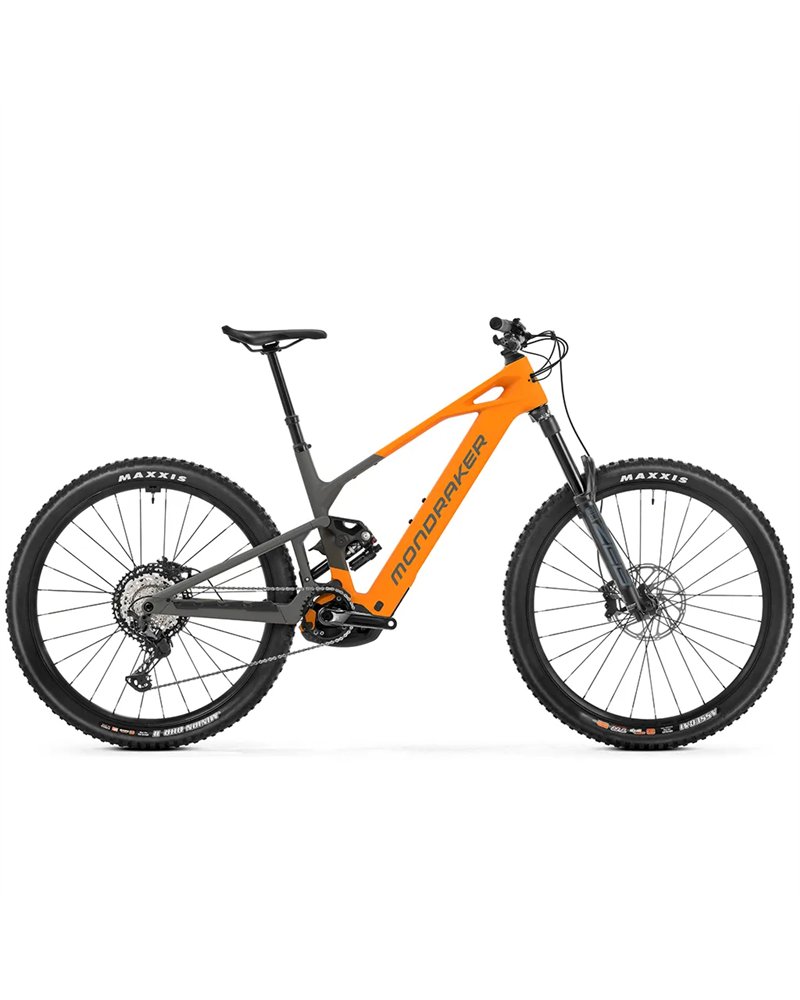

Mondraker Crafty Carbon S 29 Sram 70 Eagle 12sp Bosch CX Smart - 800Wh e-Bike, Atomic Orange MY26

Mondraker Crafty Carbon S 29 Sram 70 Eagle 12sp Bosch CX Smart - 800Wh e-Bike, Atomic Orange MY26

Reference 010.26294

€6,499.00

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: S (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Out-of-Stock

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

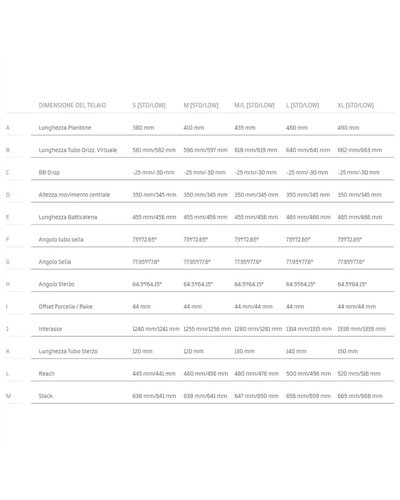

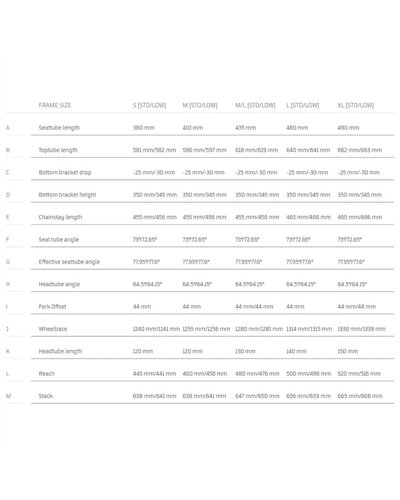

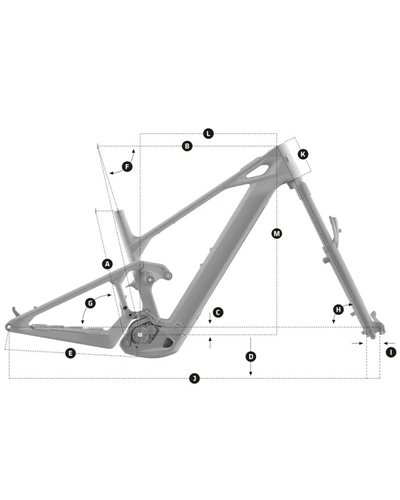

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer
Fork: RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Saddle: Ergon SM-10
Front brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram DB8 Stealth, tool reach adjust, lever pivot bushings
Rims: WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes: WTB Straight gauge spokes & black brass locking nipples
Front hub: WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts
Rear hub: WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings: Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur: Sram 70 Eagle, T-Type, 12s
Shift levers: Sram Trigger 70, 12s, T-Type Actuation
Casette: Sram XS-1270, 10-52T, 12s
Weight: 24,3 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh
