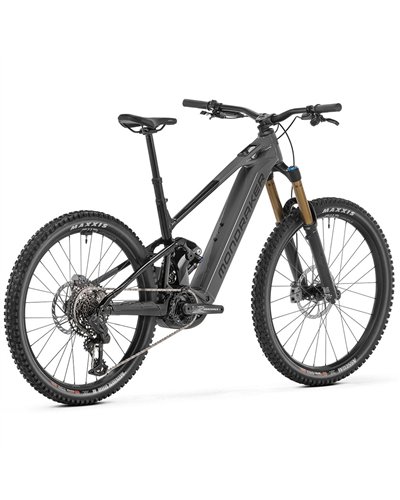

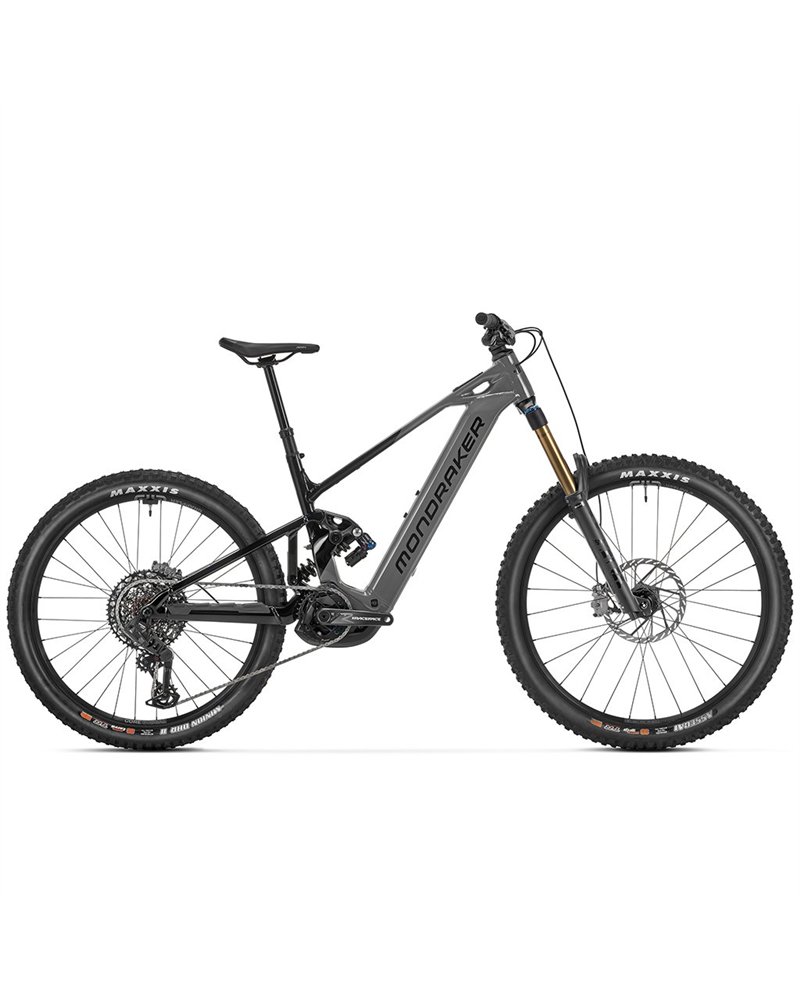

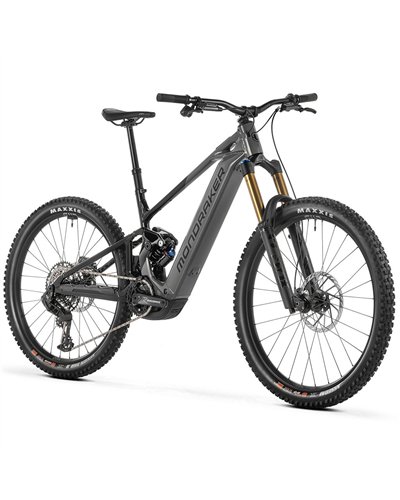

Mondraker Level RR 29 Sram S1000 Eagle AXS 12sp Bosch CX Smart - 800Wh e-Bike, Nimbus Grey
Mondraker Level RR 29 Sram S1000 Eagle AXS 12sp Bosch CX Smart - 800Wh e-Bike, Nimbus Grey
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

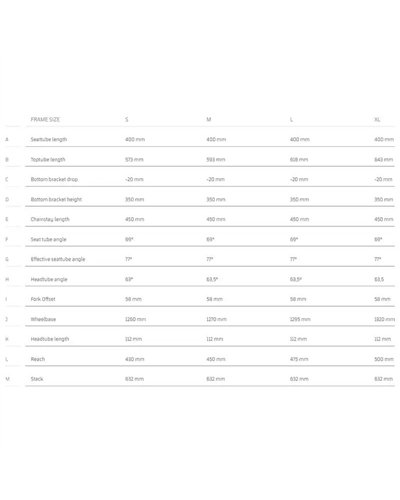

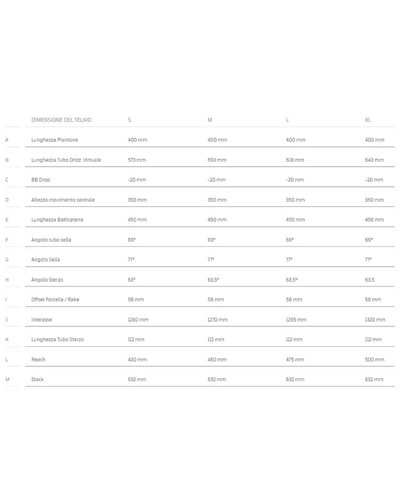

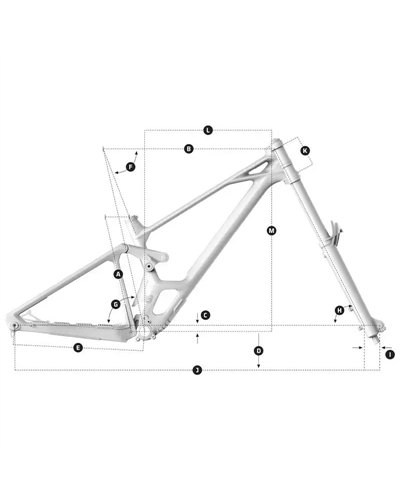

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate:S size 350 lbs, M size 400 lbs, size ML 450 lbs, L size 500 lbs, XL size 500 lbs
Fork: Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle: FIZIK Terra Aidon X5 145mm
Front brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims: e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tire: Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear tire: Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset: Race Face Aeffect ebike, All sizes: 160mm
Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram S1000 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Casette: Sram XS-1270, 10-52T, T-Type, 12s
Weight: 26,9 kg
Display: Kiox 400 / Bosch Mini Remote
Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh
Data sheet
No customer reviews for the moment.
Trail and demanding mountain biking
Designed for riders looking for a mountain e-bike with Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU 384Y) motor, full suspension and a Lega 6061 frame.
Riders who want stable handling on 29" wheels
Suitable for those who want to use 29" wheels and an aluminium structure to maintain stability and control on technical trails.
Cyclists looking for electric support and high range
Recommended for riders who want an 800 Wh battery and a SRAM S1000 Eagle AXS T-Type 12s electronic drivetrain for long, regular rides.
Ideal
Technical climbs and steep trails
The Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU 384Y) motor and full suspension help with progression on demanding sections.
Motore Bosch CX · Sospensioni Full · MTB tecnica
Very suitable
Long rides on mixed trails
The Bosch Powertube 800 Wh battery supports extended rides, while the Lega 6061 frame and hydraulic disc brakes provide consistent control.
800 Wh · Freni a disco idraulico · Trail misti
Very suitable
Descents and aggressive riding
The Fox 38 29 Float GRIPX2 Factory Kashima fork and Fox DHX2 Performance Elite rear shock are designed for a more assertive ride.
Fox 38 · Ammortizzatore Fox · Discesa
Suitable
Routes with variable surface
The 29" wheels and Mullet set-up help to manage changes in pace and different terrain with greater smoothness.
Ruote 29" · Mullet · Fondo variabile
Experienced MTB rider
Athlete tackling demanding trails
It is equipped with a Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU 384Y). This indicates an electric system designed for mountain bike use.
The battery is 800 Wh. This is useful information when assessing range on longer rides.
It is fitted with hydraulic disc brakes. This solution is suitable for off-road control.
The drivetrain is SRAM S1000 Eagle AXS T-Type 12s. It is an electronic 12-speed system.
The frame is made from Lega 6061. The bike also uses aluminium as the main material.
The frame sizes are S: 380 mm, M: 410 mm, ML: 435 mm, L: 460 mm and XL: 490 mm.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
