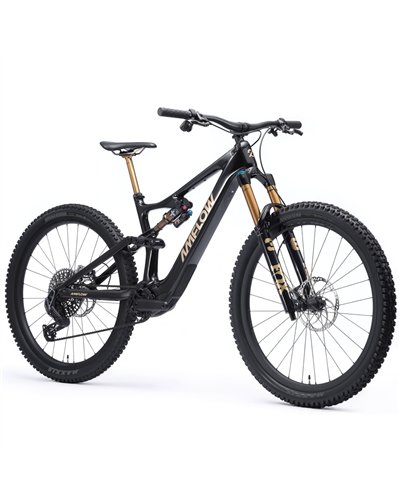

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

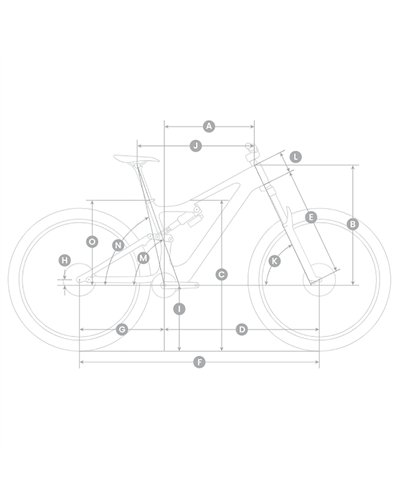

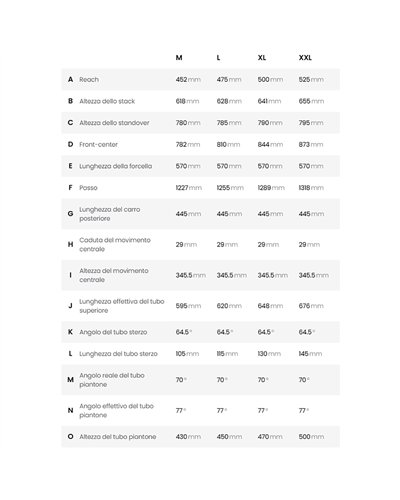

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

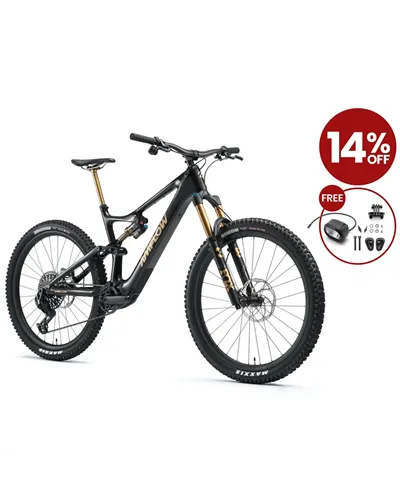

Gift: Amflow Smart Front Light Combo (Front Light + Installation Kit)
TECHNICAL SPECIFICATIONS

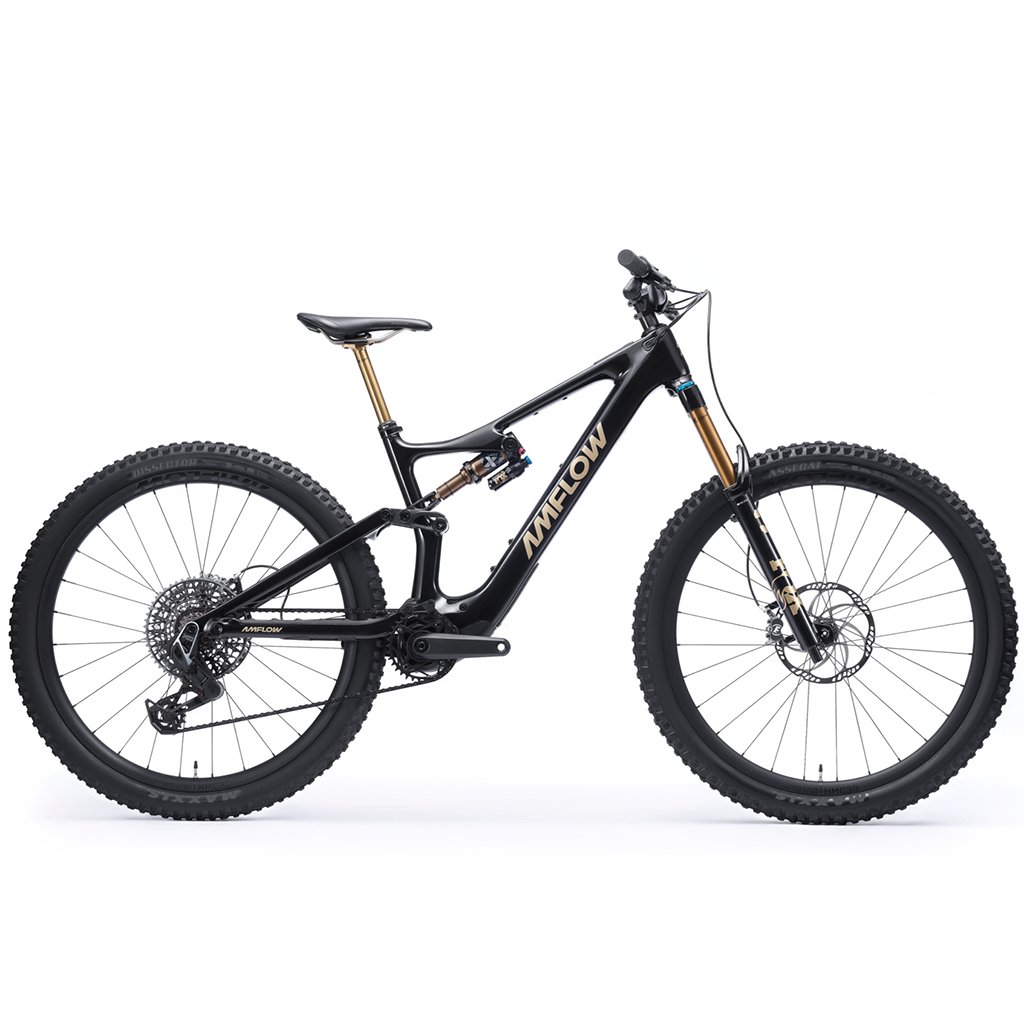

Frame
Amflow PL Carbon Frame
150 mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System

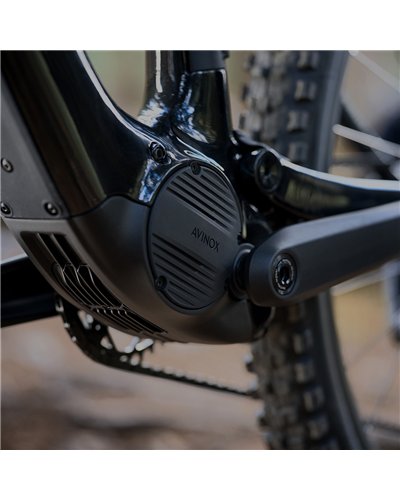

Avinox M1 Motor Unit: 105 N m

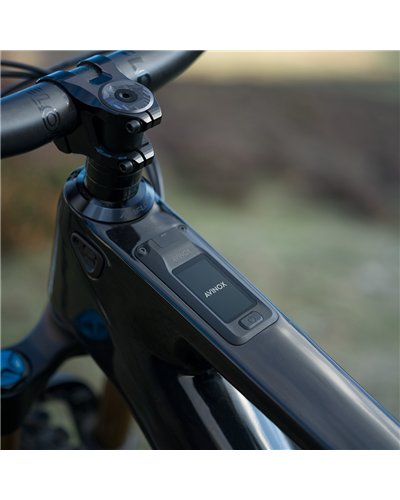

Avinox Display: 2-inch OLED control display
Avinox Integrated Battery: 800 Wh
Avinox Wireless Controls: Left and Right
Avinox Quick Charger: 12A/508W

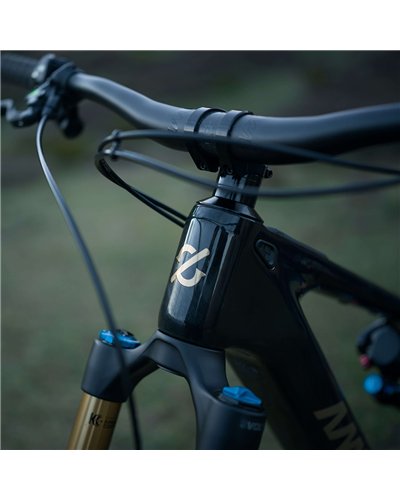

Fork
2026 FOX 36 Factory
160 mm travel, GRIP X2 shock, 15x110 mm, 44 mm offset

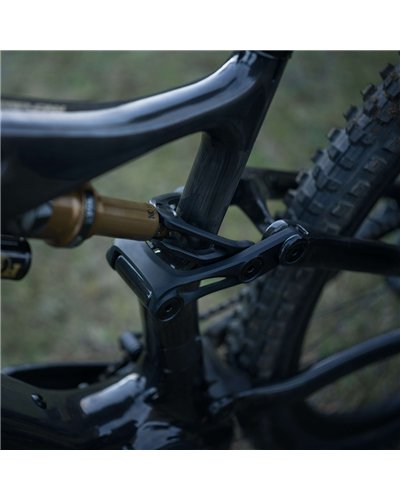

Rear Shock
2026 FOX Float X Factory
Trunnion (185x55 mm), custom fit, EVOL air sleeve, two-position lever with LSC adjustment

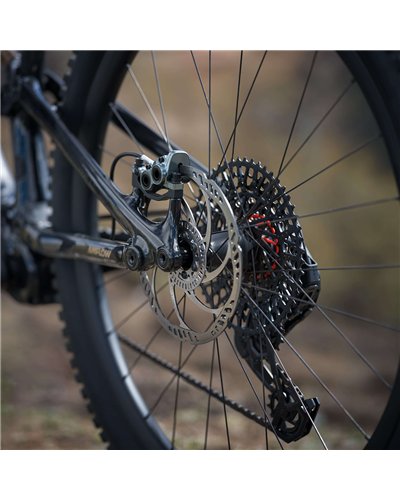

Drivetrain
Rear Derailleur: Front Derailleur SRAM X0 Eagle Transmission with power cable
Chainring: SRAM Eagle Transmission 104BCD 34T E-MTB Chainring
Shifters: SRAM AXS Controller Pod
Cassette: SRAM XS-1295 Eagle Transmission 10-52T
Chain: SRAM X0 Eagle Transmission Flattop Chain
Cranks: Avinox SL Crank (M/L: 155 mm; XL/XXL: 160 mm)
Brakes
Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203 mm Storm HC rotor (front and rear)
Wheels
Amflow HMC-30
Rims: Carbon, 29" 30mm internal width, 28-hole, Tubeless Ready
Spokes: SAPIM E-Light Straight-Pull
Front Hub: Alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 28-hole, Straight-Pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 28-hole, Straight-Pull, 6-bolt, 78T
Tires
Front: Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow carbon handlebar Enduro
Height 35 mm, width 800 mm
5-degree upsweep, 9-degree backsweep
Stem
Amflow Enduro stem, one-piece CNC
Length: 35 mm
Clamping diameter: 35 mm
Saddle
Ergon SM PRO M/L
Seatpost
Fox Transfer Factory, 5 mm adjustable travel
M: 125-150 mm
L/XL: 155-180 mm
XXL: 185-210 mm
Accessories
Quick Start Guide
Torque wrench (3-25 N m, Allen keys 2/3/4/5/6 mm, Torx® 25)
Suspension pump
Front and rear lights
