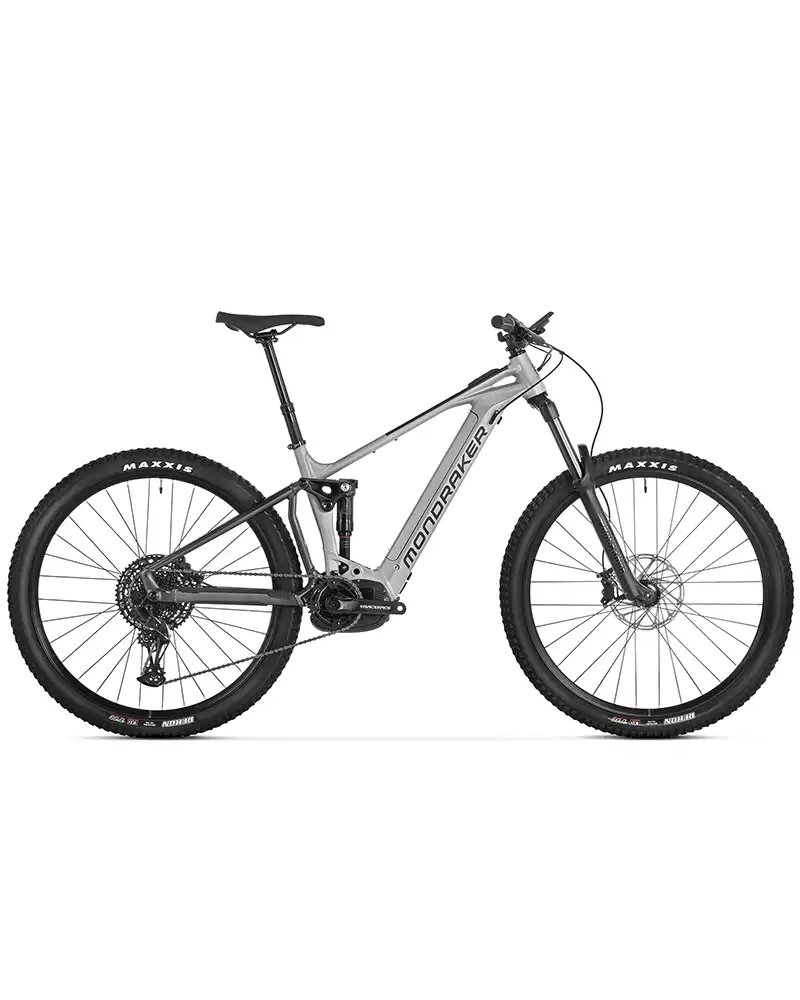

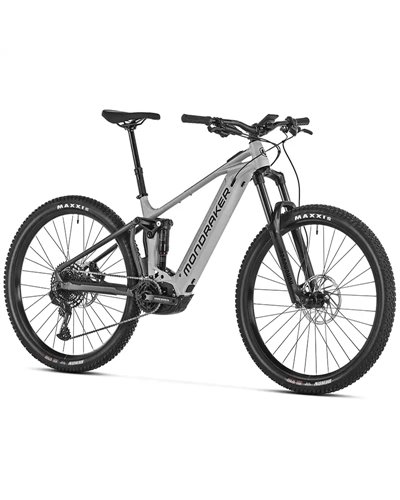

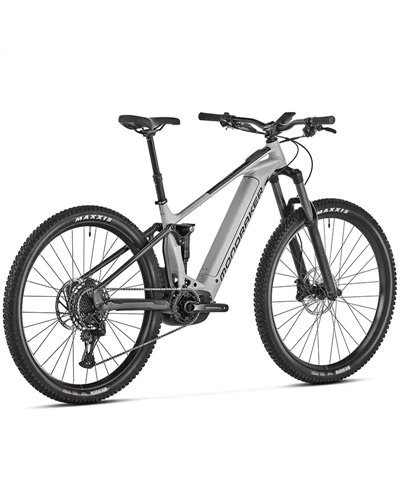

Mondraker Chaser 29 Sram SX Eagle 12sp Bosch CX Smart - 625Wh e-Bike Size M, Fog Grey
Mondraker Chaser 29 Sram SX Eagle 12sp Bosch CX Smart - 625Wh e-Bike Size M, Fog Grey
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

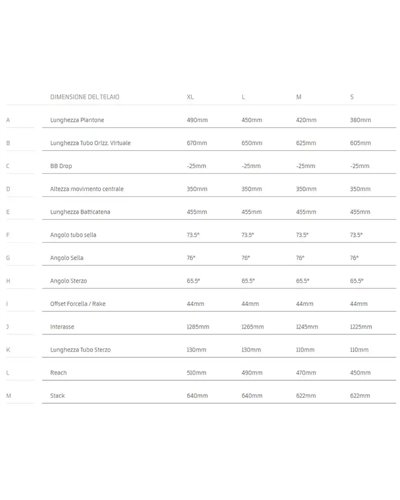

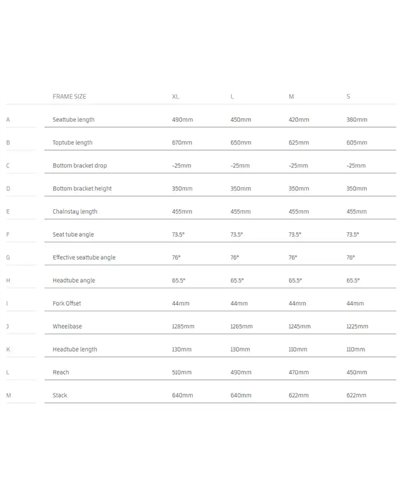

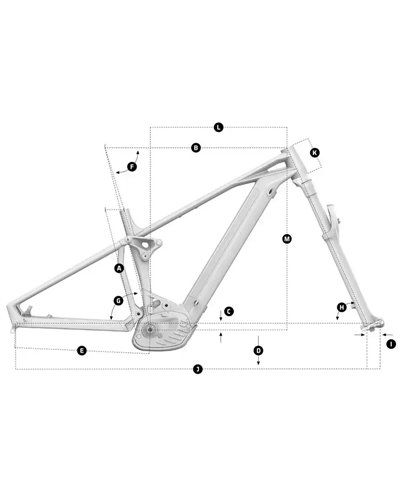

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Rear shock: RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings: DebonAir Progressive, Light compression, Linear rebound, 1 Token
Fork: RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: MDK ebike black
Front brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram DB8, tool-free reach adjust
Rims: MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub: Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset: Race Face Aeffect ebike, 165mm
Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 25,2 kg
Display: Bosch Kiox 300 / Bosch Led Remote
Motor: Bosch Performance Line CX (25km/h) Smart System
Battery: Bosch Powertube 625Wh
Data sheet
No customer reviews for the moment.
Trail off-road
It is designed for those looking for a trail e-bike with Full suspension, a 6061 Alloy frame and 29" wheels. The configuration is focused on off-road use and riding on technical trails.
Those wanting Bosch assistance for demanding rides
It is suited to riders seeking the support of the Bosch Performance Line CX (25 km/h) Smart System paired with a 625 Wh battery. The assistance is consistent with long rides and climbs on dirt trails.
Those looking for a solid and robust platform
The combination of 6061 Alloy, Sram DB8 brakes and Maxxis Rekon 29x2.6 tyres with EXO protection makes it suitable for riders wanting a trail bike focused on control and durability.
Ideal
Trail rides on technical routes
The Full suspension, the RockShox 35 Silver TK 29 fork with 160 mm travel and the Zero Suspension system with 150 mm travel are designed for trail use. The 29" wheels help maintain smooth rolling and stability.
Sospensioni Full · Forcella 160 mm · Ruote 29" · Trail
Very suitable
Long rides with electric assistance
The Bosch Performance Line CX (25 km/h) Smart System and the Bosch Powertube 625 Wh battery are suited to extended rides. The 25.2 kg weight defines an e-bike with a substantial build.
Motore Bosch CX · Batteria 625 Wh · Peso 25,2 kg · Smart System
Very suitable
Descents and braking off-road
The Sram DB8 with 4-piston caliper and 200 mm Centerline disc with 6-bolt IS mounting are suitable for trail use where braking control is required.
Freni a disco · 4 pistoncini · Disco 200 mm · Off-road
Suitable
Use on mixed surfaces and compact dirt
The Maxxis Rekon 29x2.6 tyres, tubeless ready, with dual compound and EXO protection are suitable for mixed use on compact dirt and trail.
Maxxis Rekon · Tubeless ready · Protezione EXO · Sterrato
Trail rider with a technical setup
Sport rider wanting assistance and range on the ride
It uses the Bosch Performance Line CX (25 km/h) Smart System. It is a motor designed for trail use with integrated electric assistance.
It uses a Bosch Powertube 625 Wh battery. This specification indicates a capacity suited to off-road rides with good potential range.
It has Full suspension. The specification also indicates a Zero suspension with 150 mm travel and a RockShox 35 Silver TK 29 fork with 160 mm travel.
It uses Sram SX Eagle 12s. The drivetrain is set up in a 1x12s configuration.
It uses Sram DB8 with 4-piston caliper and 200 mm Centerline disc with 6-bolt IS mounting. It is a configuration suited to trail use where braking control is important.
The weight is 25.2 kg without pedals. This is the figure to consider when handling the bike on technical sections and during manoeuvres.
The stated frame size is M.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
