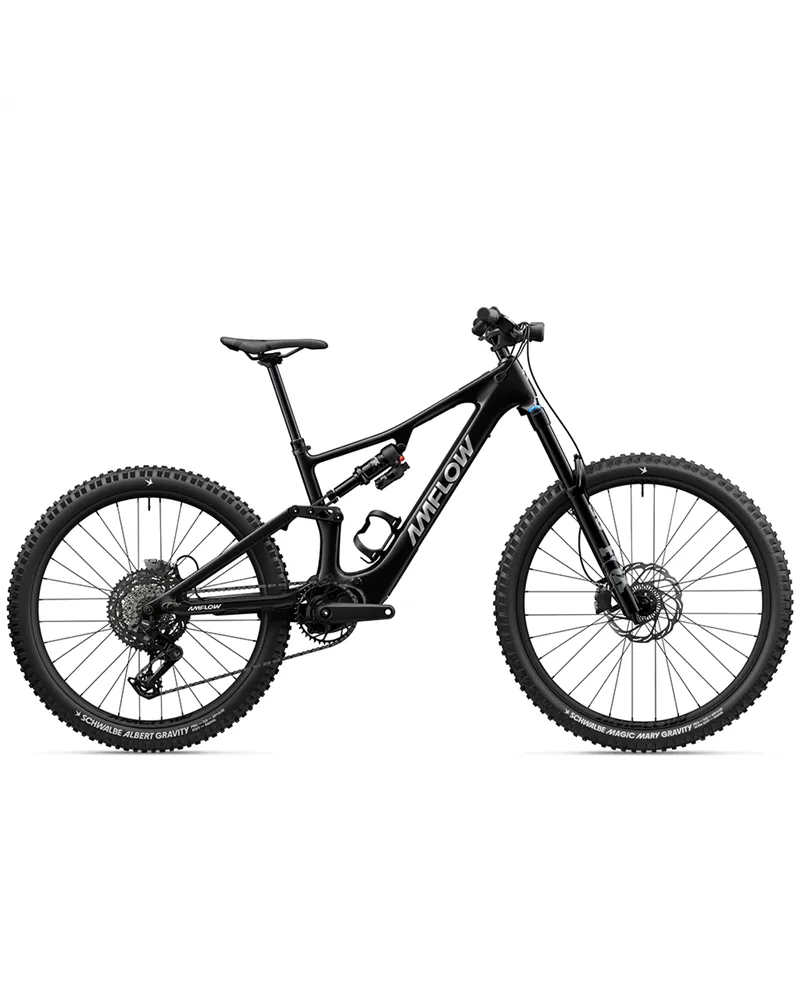

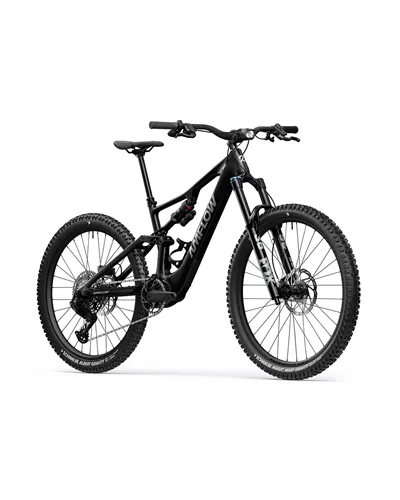

Amflow PX Carbon Mullet 27.5/29 Sram Eagle S1000 Eagle 12sp Avinox M2S - 700Wh e-Bike, Phantom Black

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS

Frame
Amflow PX Carbon Frame
Phantom Black
40 Adjustable Geometry Configurations*
Compatible with 27.5" and 29" rear wheels

* The bike offers five headtube angle settings, two bottom bracket height settings, and four chainstay length settings. Users can combine these settings to suit different riding styles and terrain conditions. These parameters can theoretically create up to 40 geometry configurations. The actual adjustment range and its effects depend on actual use.

E-Bike System
Avinox M2S Drive Unit: Rated Torque 130 N m, Peak Torque 150 N m
Avinox Display: 2" OLED Control Display
Avinox Integrated Battery: 700 Wh
Avinox Wireless Controls: Left and Right
Avinox Quick Charger: 12 A/508 W

Rear Shock
FOX Float X Performance (MY 2027)
Two-position lever, custom tuning, LSR adjustment, 210 x 55 mm, air shock

Fork
FOX 36 Performance (MY 2027)
160 mm travel, GRIP cartridge, Sweep/LSR adjustment, 15 x 110 mm, 44 mm offset

Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission
Crown: SRAM DM chainring Eagle Transmission 38T for Avinox
Shifters: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission 10-52T Cassette
Chain: Flattop Chain for SRAM Eagle 70 Transmission
Power Supply: Electronic Power Cable for Avinox M2 Series Rear Derailleur (SRAM AXS Extension)
Crankset: Avinox SL Crank (M/L: 155 mm; XL/XXL: 160 mm)

Brakes
Magura Gustav Pro hydraulic disc brake, four-piston calipers
Magura rotor with magnet (203 mm, 2.5 mm)

Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29", 30 mm internal width, 32-hole, Tubeless Ready
Rear Rim: Alloy, 27.5", 30 mm internal width, 32-hole, Tubeless Ready
Spokes: SAPIM E-Light
Front Hub: Alloy, two sealed bearings, 15x110 mm thru-axle, 32-hole, six-bolt
Rear Hub: Alloy, four sealed bearings, 12x148 mm thru-axle, 32-hole, six-bolt, four-pawl 36T, HG

Tires
Front: Schwalbe Magic Mary radial, 29x2.5, Gravity Pro, ultra soft, Tubeless Ready
Rear: Schwalbe Albert, radial, 27.5x2.5, Gravity Pro, Addix Soft, Tubeless Ready

Handlebar
Amflow Enduro alloy handlebar
40 mm rise, 800 mm width, 35 mm diameter
5-degree upsweep, 9-degree backsweep

Grips
Amflow Enduro Grip 2 lock-on grips

Stem
Amflow mountain bike split stem
Length: 35 mm
Clamping diameter: 35 mm

Saddle
Amflow mountain saddle

Drop seatpost
Amflow dropper seatpost spacer (adjustable travel: 0/5/10/15/20/25 mm)
Frame M/L: 190 mm
Frame XL: 210 mm
Frame XXL: 230 mm mm

Accessories
Avinox front light
Amflow bottle cage
Three geometry adjustment systems (0.5°/1° headset cups, rear triangle flip-chip)
5/10 mm dropper seatpost travel reducer spacer
Rear light
Torque wrench
Transparent frame protector
Suspension pump
Quick start guide
