BMC Frameset Teammachine SLR01, Carbon MY27
BMC Frameset Teammachine SLR01, Carbon MY27
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops

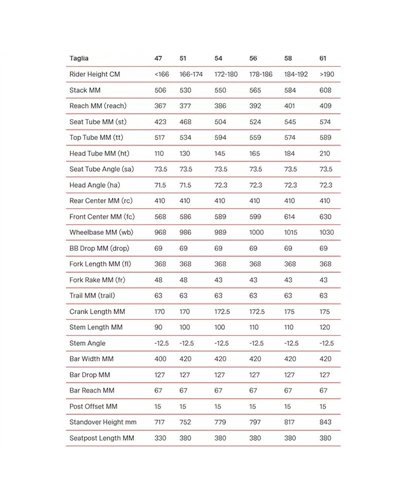

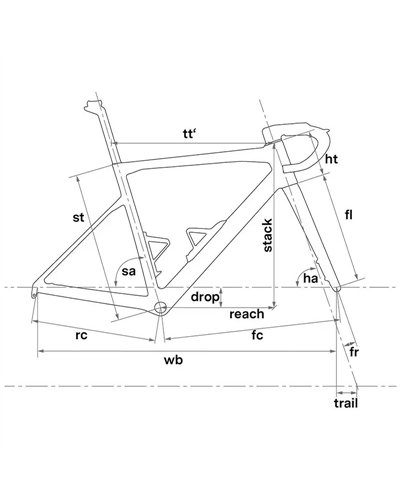

Frame geometry on the attached sheet.
The Teammachine SLR 01 frameset is where peak BMC meets your vision: the ultimate carbon climbing frame, ready for your choice of components.
Engineered in ultra-light 01 Premium Carbon, the frame teams ruthless power transfer uphill with an uncompromisingly low weight and the sharpest handling on the way down. Evolved aerodynamics across the frame unlock free speed – bringing our most advanced lightweight road bike closer than ever to the Teammachine R 01 in outright aerodynamic performance.
With TCC Race compliance and wickedly precise handling, it carries the unmistakable BMC character across changing gradients, making it comfortable on rough roads and controlled in the corners.
This frame-only variant, comprising frame, fork and seatpost, is for those who want to create their own speed.
SPECIFICATIONS
Frameset
Frame: Teammachine SLR 01 Gen 5 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Full Mount - UDH | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork: Teammachine SLR 01 Gen 5 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61
Seat
Seatpost: Teammachine SLR 01 Gen 5 | 01 Premium Carbon Aero Shaped Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Drivetrain
Front Derailleur: Derailleur hanger for Front Derailleur (2x drivetrain - 44.5mm chainline), and Cover (1x drivetrain)
Rear Derailleur: Full Mount - UDH
Bottom Bracket: Press-Fit 86.5mm Road
Brakes
Rotor Size (F/R): Rotor compatibility: 160mm front | 140mm or 160mm rear
Accessories
In the Box: Aerocore Bottle Cages | SRAM UDH derailleur hanger | SHIMANO Direct Mount derailleur hanger | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers
Additional Information
Tire Clearance: 32mm measured tire
Weight without Pedals: 1490g | Size 54 as pictured with all accessories
ASTM Classification: Level 1
System Weight Limit: 110kg
General Product Safety Regulation (GPSR): Safety Instructions GPSR (EU) / Responsible person according to GPSR (EU)
Data sheet
No customer reviews for the moment.
Road cyclist focused on maximum lightness
Designed for those seeking a very light carbon frame, with a racing setup and VAR0 raw carbon finish.
Those who want a rigid and precise road frame
Suitable for those who prioritise stiffness, precise handling and direct response on road rides.
Those planning a custom build from a frame
Suitable for those looking for a base to customise, with a paint-ready surface and a frame-only setup.
Ideal
High-performance road build
The Premium Carbon structure and TCC Race compliance make it suitable for a performance-focused road build.
Strada · Premium Carbon · TCC Race
Very suitable
Custom frame-only project
The VAR0 finish and paint-ready surface make it easier to create a bespoke project starting from a bare frame.
Solo telaio · VAR0 · Personalizzazione
Suitable
Racing use on fast routes
The integrated aerodynamic layout and 12x142 mm thru-axle support a race configuration on tarmac.
Gara · Aerocore · 12x142 mm
Experienced road cyclist
No, it is a frame kit. The drivetrain group listing indicates frame only, so a complete build is required.
Mountain hydraulic disc brakes. This is a solution suited to a modern road setup.
Yes, the intended use and discipline are Road. The setup is that of a road racing frame.
No, the suspension is rigid and the motor is none. It is therefore a muscular road frame.
The main material is Carbon and the frame material is Premium Carbon. The specification indicates a construction focused on lightness.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
