Bianchi Aria e-Road Shimano 105 Di2 12sp - Mahle X35 Plus 250Wh, 1A CK16/Black Glossy MY24

Bianchi Aria e-Road Shimano 105 Di2 12sp - Mahle X35 Plus 250Wh, 1A CK16/Black Glossy MY24

Reference YTBN9I591A

€5,599.00

€3,440.40 Save 38.55%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: 59 (Contattaci)

59 (Contattaci)

Quantity

Add to Wishlist

Add to Compare

Out-of-Stock

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

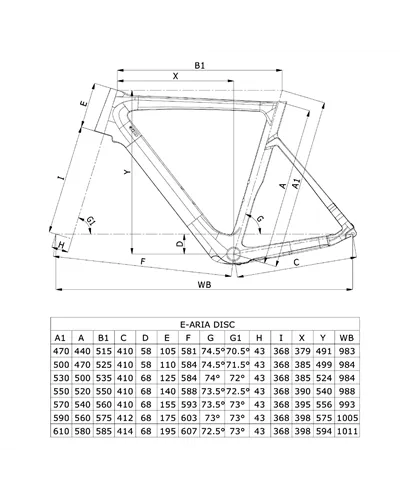

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECH SPECS

MOTOR UNIT
MOTOR: Mahle X35 Plus 250W motor unit, iWOC One remote control, BLE and ANT+ compatible
BATTERY: Mahle X35+ 250Wh

FRAMESET
FRAME: E-Road Aria aero carbon, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.1/8", integrated seat clamp, full carbon dropout, aero shape DT-ST, Disc brake flat mount, QR sytem, OLD 135mm sizes 47-50-53-55-57-59-61cm
FORK: Full Carbon Aero Road 1.4">1.1/8" integrated head , Disc brake flat mount, thru axle 12x100
HEADSET: FSA Orbit C-33, NO.44E, 1-1/8

DRIVETRAIN
SHIFTERS: Shimano DISC BRAKE SET, 105, ST-R7170
REAR DERAILLEUR: Shimano, RD-R7150, 105,12-SPEED
FRONT DERAILLEUR: Shimano, FD-R7150, 105
CRANKSET: Shimano, FC-R7100, 105, 50-34T Crank Length: 47-50-53 - 170mm 55-57-59 - 172.5mm61L - 175mm
BOTTOM BRACKET: Shimano,SM-BB72-41B, PRESS FIT TYPE FOR ROAD, BEARING, INNER COVER
CHAIN: Shimano, CN-M7100, HG 12-SPEED

BRAKES
BRAKES: Shimano included in the shifter
ROTOR: Shimano, SM-RT86, S 160MM

WHEELS
WHEELS: FSA Vision Trimax alloy disc with rear Mahle motor hub
REAR HUB: FSA Vision Trimax alloy disc with rear Mahle motor hub
TIRE: Vittoria Rubino Pro G2.0 graphene, 700 x 28c, 150TPI

COCKPIT
STEM: Velomann, raise - 6°, height 38mm, Oversize, 1 1/8", size 90/100/110/120cm Ext: 90mm-48/50cm, 100mm-52/54cm, 110mm-56cm, 120mm-58cm
HANDLEBAR: Velomann, Flat Top, alloy 6061 diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm, 420mm-55/59cm, 440mm-61cm
GRIPS / EXTENSIONS: La Spirale Ribbon cork

SADDLE
SEATPOST: Full Carbon Aero special dimension, special Clamp type with alloy head adjustable and reversible +/- 35mm; lenght: 300mm - 47/50cm; 350mm - 53/61
SADDLE: Velomann, carbon steel rail, 262x145
