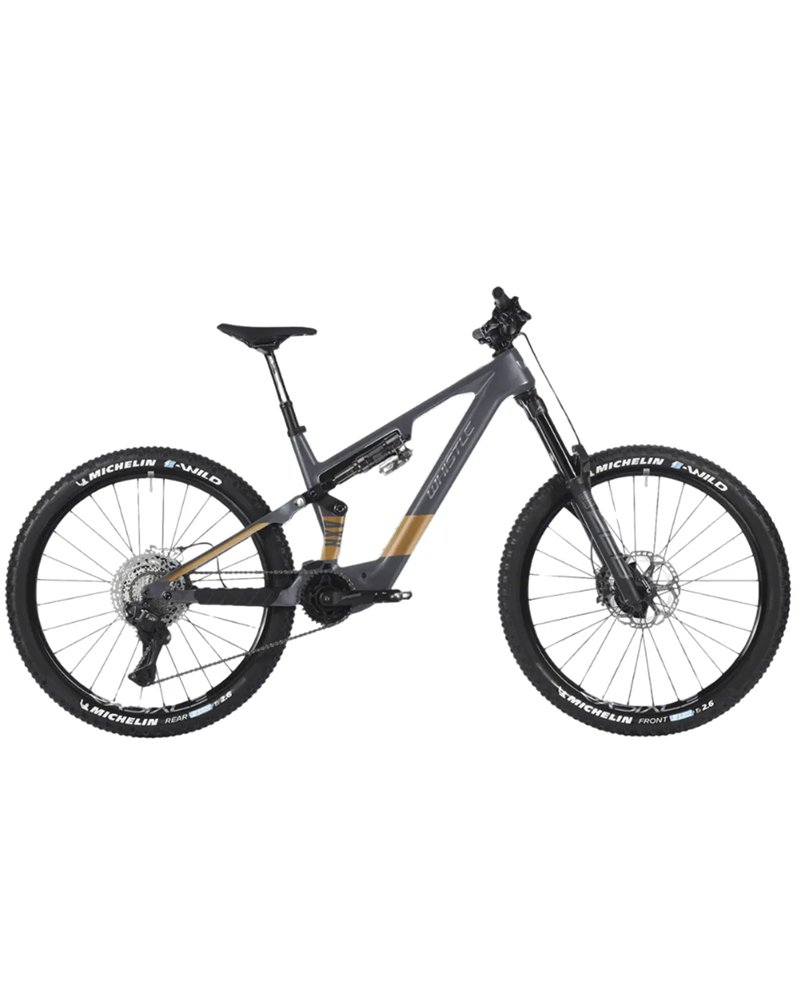

Atala Whistle e-MTB AXR C8.6 Shimano XT Di2 12sp Avinox M2S 800Wh, Anthracite/Titanium

Atala Whistle e-MTB AXR C8.6 Shimano Deore XT Di2 12sp Avinox M2S 800Wh, Anthracite/Titanium

Atala Whistle e-MTB AXR C8.6 Shimano Deore XT Di2 12sp Avinox 800Wh, Anthracite/Titanium

Reference 0116888520

€5,999.00

€5,399.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Bike frame sizes: 48

Quantity

Add to Wishlist

Add to Compare

Out-of-Stock

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Contact us for more information, technical details and availability.

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

ELECTRIC KIT: Avinox

MECHANICAL SPECIFICATIONS
Frame: Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
Fork: RockShox ZEB RC eMTB, Debon Air+, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
Shock: RockShox Super Deluxe, Debon Air Progressive, 230x65
Headset: FSA CRII Dual, 1.5”, Internal routing
Crankset: FSA CK320, 34T MegaTooth
Gear: Shimano XT RD-M8250 SGS Di2, 12s
Shifters: Shimano Deore SW-M6250 Di2, 12s
Brakes: Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm
Sprocket Set: Shimano CS-M6100, 12-speed, 10/51
Pedals: Alu MTB Full +
Front Hub: Shimano TC500B, 15x110, CL, 32h Radial J110, 15x110, CL, 32h
Rear Hub: Shimano TC500B, 12x148, CL, MicroSpline, 32h Formula, 12x148, CL, MicroSpline, 32h
Rims: Radial X30, eDesign, Asymmetric, Tubeless Ready, 622x30c
Stem: Alu, 35 mm bar, Extension S-M frame 35 mm L-XL 50 mm
Handlebar: Alu, 780 mm, 35 mm bar, 15 mm rise
Seatpost: Dropper A1, Diameter 31.6 mm, remote
Saddle: Selle Royal SRX
Tires: Michelin e-Wild Front & Rear Competition Line, 29" x 2.60", Tubeless ready
Weight: 22.8
Wheel Diameter [inches]: 29"
Speeds [gears]: 12

ELECTRICAL SPECIFICATIONS
Battery: Avinox 800 Wh (Fixed), weight 3.74 kg
Display: Avinox DP100
Motor: Avinox M2S 2,6 kg
Maximum power and torque: 1300 W / 150 Nm
Charger: 12 A / 2.5 hours
Maximum assistance: Auto / Eco / Trail / Turbo / Boost
Maximum speed: 25 km/h

Reference 0116888520

Data sheet

Diameter: 29"
Gender: Men
Women
Material: Carbon
Code: ATA2526-LIST1125-STK141026
Shifting: Electronic
Brakes: Hydraulic disc
Groupset: Shimano Deore
Motor: Avinox
Suspension: Full suspension
Type: MTB
Battery capacity: 800 Wh

No customer reviews for the moment.

Focus Jarifa² 6.7 Shimano...

MTB

€2,999.00 -10% €2,699.10

Focus Jarifa² 6.7 Shimano Cues 9sp - Bosch Performance 600Wh, Dream Violet/Diamond Black

Out-of-Stock

Cube Stereo Hybrid One44...

MTB

€4,499.00

Trails, your way.

-10%

Santa Cruz Vala 1 CC Mullet...

MTB

€10,999.00 -10% €9,899.10

Santa Cruz Vala 1 CC Mullet 27.5/29 Shimano Deore XT Di2 12sp Reserve e-MTB, Matte Carbon Sparkle

-10%

Santa Cruz Bullit 4 CC...

MTB

€7,699.00 -10% €6,929.10

Santa Cruz Bullit 4 CC Mullet 27.5/29 Shimano Deore 12sp e-MTB, Gloss Purple Smoke

-10%
Out-of-Stock

Focus Thron² 6.7 Shimano Cues 10sp - Bosch Performance CX 800Wh, Urban Green/Magic Black

Focus Thron² 6.6 Shimano...

MTB

€3,999.00 -10% €3,599.10

Focus Thron² 6.6 Shimano Cues 10sp - Bosch Performance CX 800Wh, Diamond Black

Mondraker Scree R 29 Sram...

Full

€5,999.00

The natural step up in performance: upgraded components to make the most of every trail. Greater response on climbs and descents. For riders...

-20.85%

Whistle e-MTB B-Rush C5.2 Shimano Deore 12sp Bosch CX 750Wh, Black/Silver Matt/Gloss

Atala Whistle e-MTB B-Rush...

MTB

€4,439.00 -20.85% €3,513.47

Atala Whistle e-MTB B-Rush C5.2 Shimano Deore 12sp Bosch CX 750Wh, Black/Silver Matt/Gloss

Amflow PR Carbon Mullet...

MTB

€4,499.00

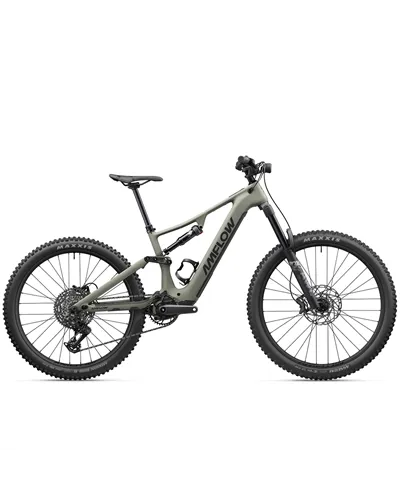

Amflow PR Carbon Mullet 27.5/29 Sram S1000 Eagle 12sp Avinox M2 - 800Wh e-Bike, Moss Green

-25%

Mondraker Scree S 29 Sram...

Full

€5,499.00 -25% €4,124.25

Accessible, and with maximum range: Fitted with a removable 800Wh battery just like its bigger siblings. For riders who want longer days on...

-10%

Santa Cruz Bullit 4 CC...

MTB

€9,799.00 -10% €8,819.10

Santa Cruz Bullit 4 CC Mullet 27.5/29 Sram GX Eagle AXS 12sp e-MTB, Matte Carbon

-12.49%
Out-of-Stock

Focus Thron² 6.8 ABS...

MTB

€5,599.00 -12.49% €4,899.82

Focus Thron² 6.8 ABS Shimano Deore 12sp - Bosch Performance CX 800Wh, Steel Grey/Diamond Black

-16.24%
Out-of-Stock

Focus Jam² 6.9 Shimano...

MTB

€6,999.00 -16.24% €5,862.10

Focus Jam² 6.9 Shimano Deore XT 12sp - Bosch Performance CX 800Wh, Nepal Silver/Emerald Green

-31.37%

Atala Whistle e-MTB O-Rush...

MTB

€3,509.00 -31.37% €2,408.23

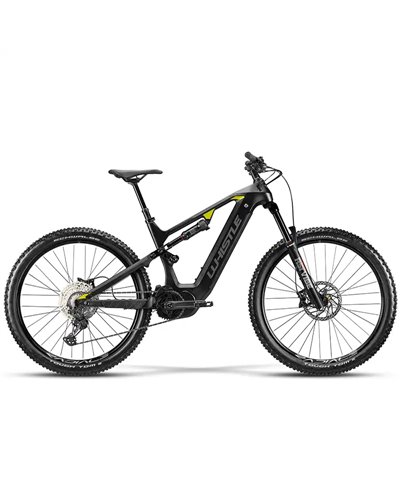

Atala Whistle e-MTB O-Rush C4.4 Shimano Deore 10sp OLI Edge 603Wh, Black Matt Anthracite/ Yellow
