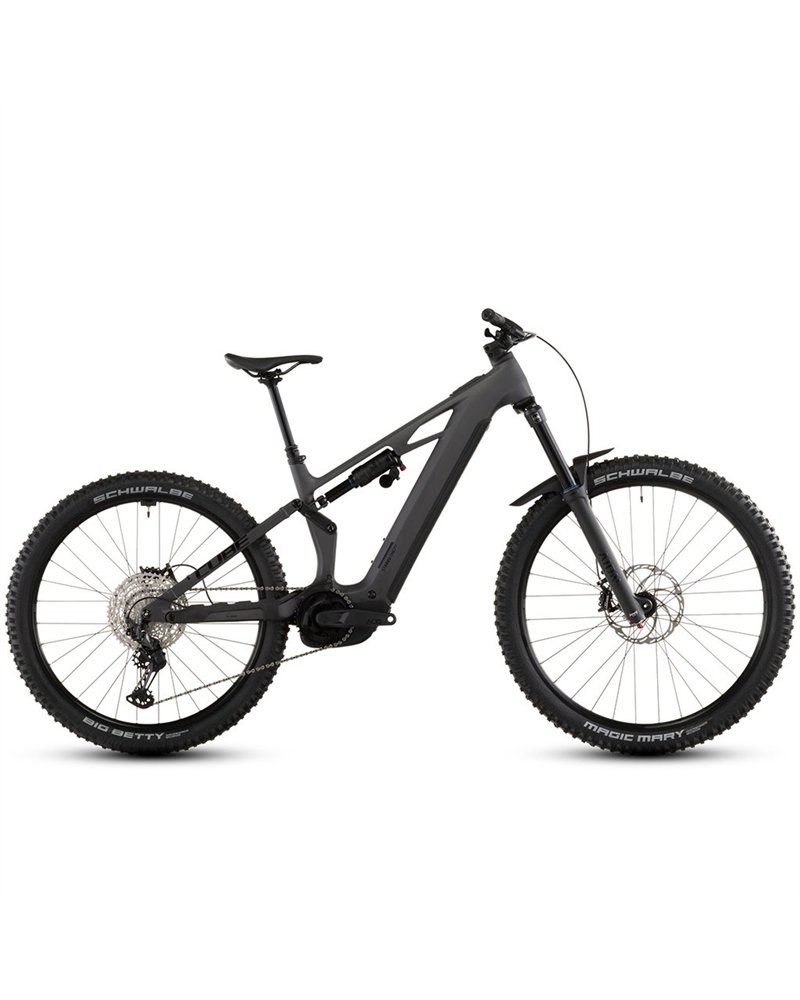

Cube Stereo Hybrid One77 HPC Race 800 27.5"/29" e-MTB Shimano XT 12sp Bosch CX 800Wh, Irongrey/Black (2026)

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

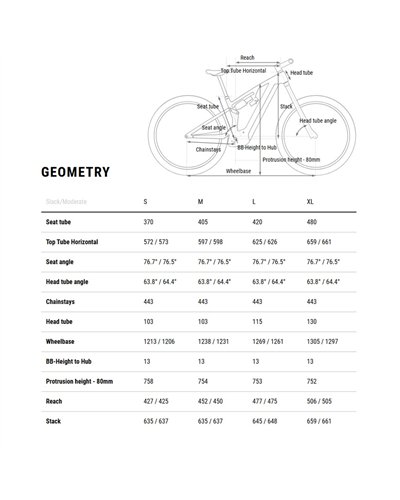

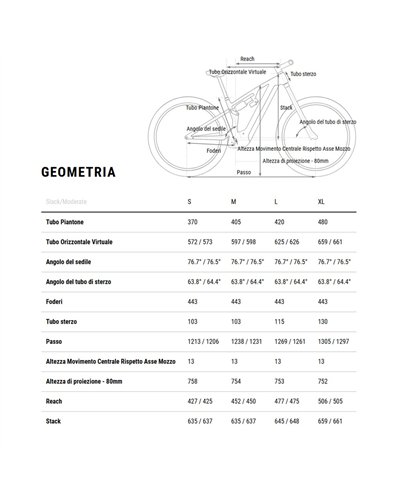

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

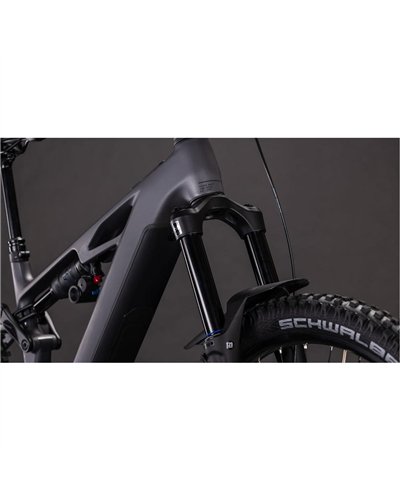

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

TECH SPECS

Frame
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

Suspension
Suspension fork: SR Suntour Aion 38X 2CR Air, Tapered, 15x110mm, Lockout, 170mm

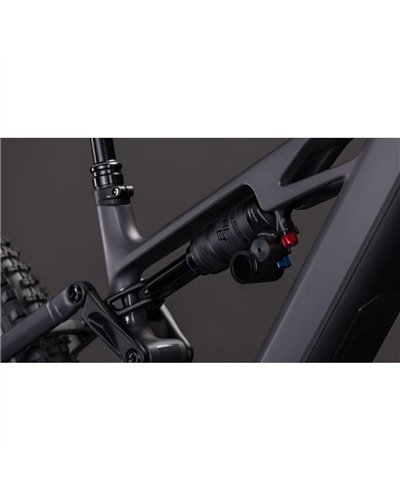

Shock: SR Suntour TRIAir 2CR 230x65mm
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm

E-bike system
Drive unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38)

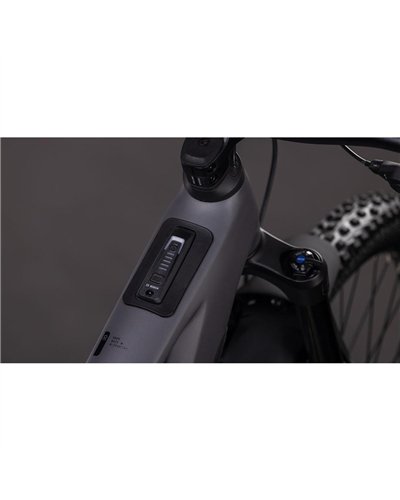

Remote: Bosch System Control, incl. Mini Remote
Battery: Bosch PowerTube 800
Charger: Bosch 2A

Drivetrain & brakes
Brake system: Magura Louise, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100, Rapidfire-Plus

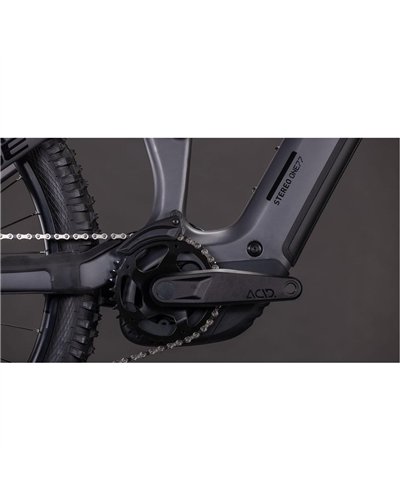

Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Cockpit
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound

Wheels
Wheelset: ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
Front tyre: Schwalbe Magic Mary, Performance, 2.4
Rear tyre: Schwalbe Big Betty, Performance, 2.4

Finishing kit
Saddle: ACID Venec EMTB Trail 140
Seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Pedals: ACID PP MTB

Product information
Colour: irongrey´n´black
Weight: 25,4 kg
Art. No: 103100

More Information
Bike category of use: 4
Maximum rider weight: 120 kg
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body
