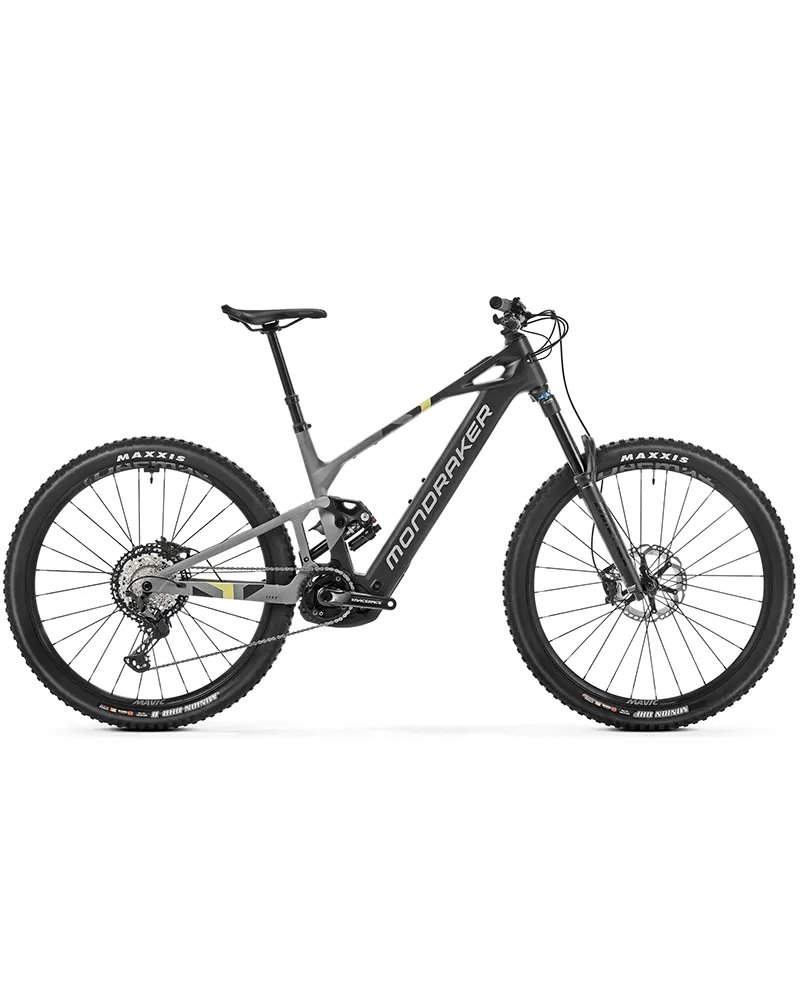

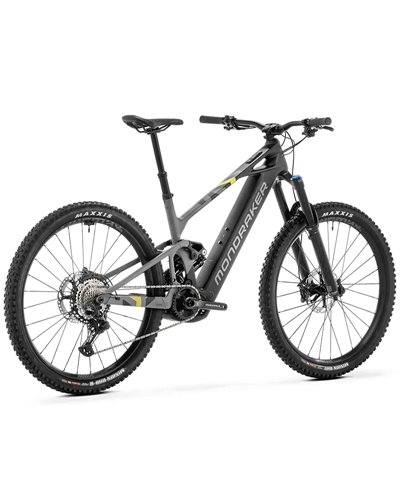

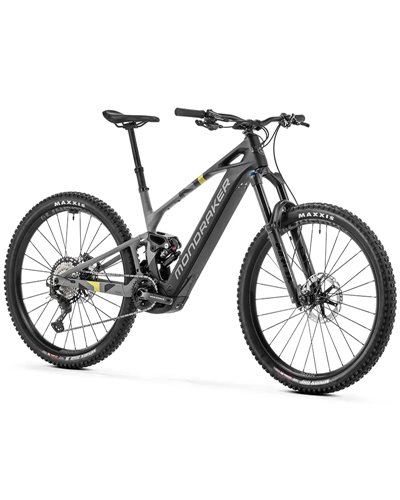

Mondraker Crafty Carbon R 29 Shimano XT 12sp Bosch CX Smart - 800Wh e-Bike Size M/L, Black MY25

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

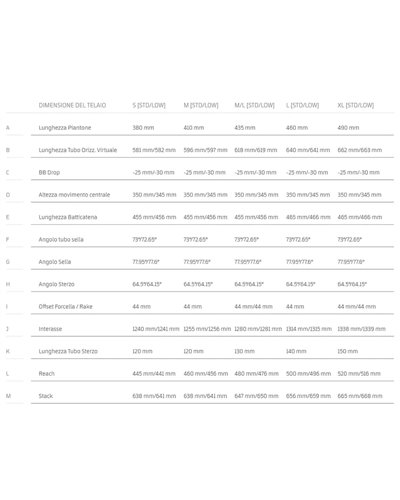

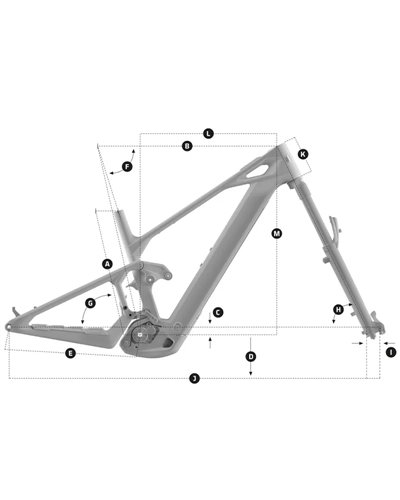

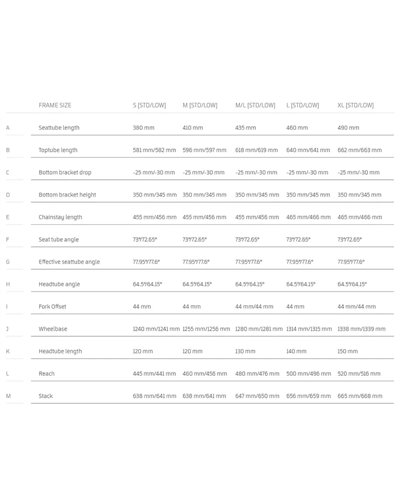

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer
Fork: Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips: Onoff Forest, CNC lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle: Ergon SM-10
Front brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Rear brake: Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin
Brake lever: Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust
Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes: Mavic J-bend double butted, contactless lacing
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub
Front tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset: Race Face Aeffect-R ebike, 160mm
Rings: Race Face, 34T, steel, direct mount
Chain: Shimano XT M8100, 12s
Rear derrailleur: Shimano XT M8100, SGS, Shadow+
Shift levers: Shimano XT M8100, Rapid Fire Plus, 12s
Casette: Shimano XT M8100 10-51T Hyperglide+, 12s
Derailleur hanger: Sram UDH
Weight: 23,9 kg
Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor: New Bosch Performance Line CX Cruise (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh
