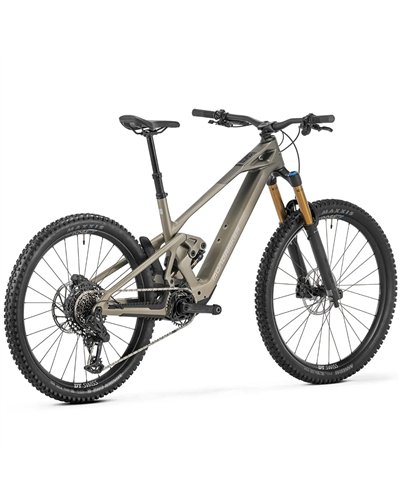

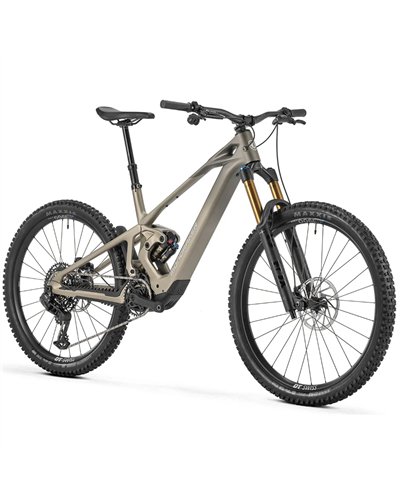

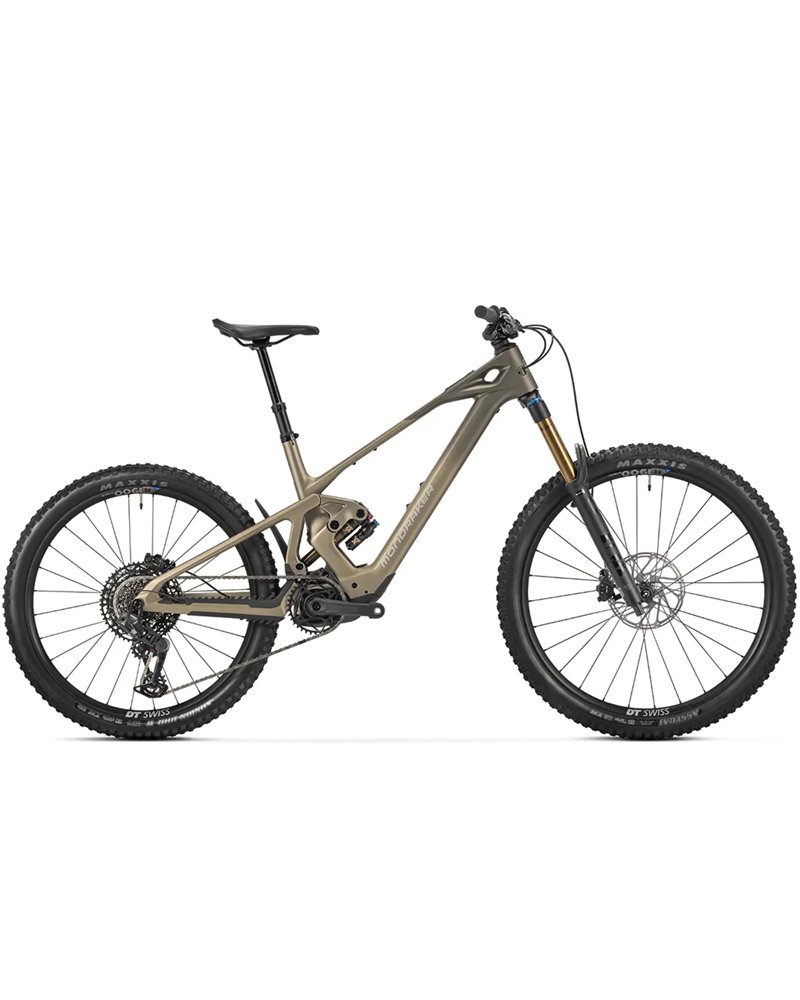

Mondraker Zendit RR Mullet 27.5/29 Sram S1000 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike Size M, Saturn MY27
Mondraker Zendit RR Mullet 27.5/29 Sram S1000 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike Size M, Saturn MY27
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

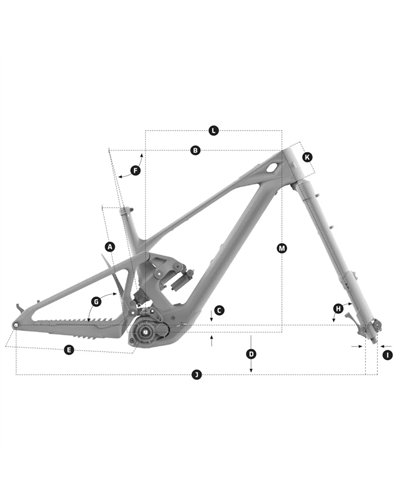

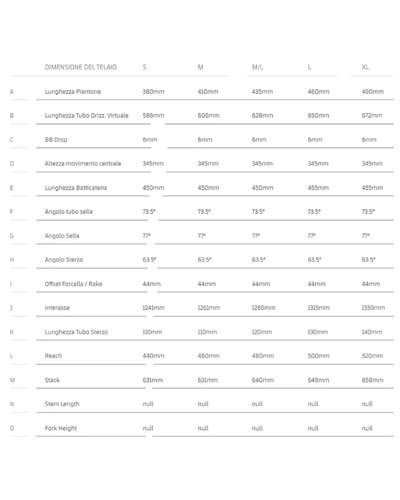

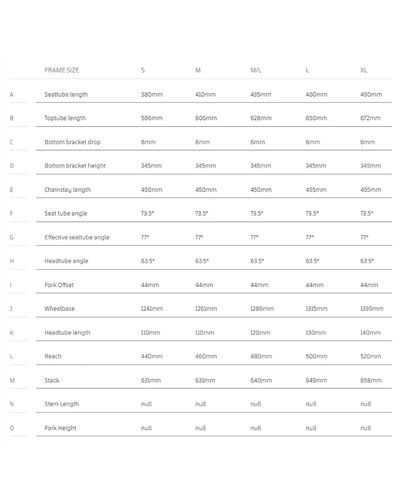

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings: CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork: Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle: Ergon SM10 E-Mountain Black.
Front brake: Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Rear brake: Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Brake lever: Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust
Rims: DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes: DT Swiss Straightpull spokes, DT Hybrid I, black
Front hub: DT Swiss 370, Boost 15x110mm, IS 6 bolts
Rear hub: DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset: e*thirteen Helix Race e*spec alloy. All sizes: 155mm
Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur: Sram S1000 Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod Controller w/discrete clamp, 12s
Casette: Sram XS 1270, 10-52T, T-Type, 12s
Others: Sram AXS Extension Cord / Avinox 4A Charger
Weight: 22.8 Kg
Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor: Avinox M2S
Battery: Avinox 800Wh Battery
Data sheet
No customer reviews for the moment.
For riders looking for a carbon e-MTB for demanding terrain
Suitable for those who want an electric mountain bike with a carbon frame, Avinox M2S motor and 800 Wh battery for tackling demanding routes.
For those who prefer a full-suspension MTB with Mullet wheels
Suitable for those looking for a full MTB with 27.5/29" wheels and full suspension for stable handling on technical sections.
For riders wanting electronic components and hydraulic disc brakes
Suitable for those looking for Sram S1000 Eagle AXS transmission, electronic shifting and hydraulic disc brakes.
Ideal
Steep climbs and demanding trails
Avinox M2S motor, 800 Wh battery and full suspension make it suitable for the toughest and longest routes.
Avinox M2S motor · 800 Wh battery · Full suspension
Very suitable
Technical descending and aggressive riding
The Zendit Stealth Air full Carbon frame, Fox 38 29 Float GRIP X2 Factory Kashima fork and Sram Maven Base brakes support precise riding on technical sections.
Carbon frame · Fox 38 fork · Hydraulic disc brakes
Suitable
MTB rides with mixed 27.5/29" setup
The 27.5/29" Mullet setup combines agility and rolling efficiency on mixed-surface MTB rides.
27.5/29" wheels · MTB · Carbon
Experienced MTB rider
It is an MTB designed for demanding terrain. The specification sheet identifies it as an e-MTB with a technical setup.
The frame is made from Zendit Stealth Air full Carbon.
It is fitted with the Avinox M2S motor.
The battery is 800 Wh. This indicates a unit designed to support long and demanding rides.
It is fitted with hydraulic disc brakes, with Sram Maven Base at the front and rear.
It has 27.5/29" wheels. The Mullet configuration is useful for combining handling and rolling efficiency.
The declared weight is 22.8 kg without pedals.
Frame sizes: S: 380 mm / M: 410 mm / ML: 435 mm / L: 460 mm / XL: 490 mm.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
