Mondraker Crafty Carbon RR SL 29 Sram XX Eagle AXS 12sp Bosch CX Race Smart - 600Wh e-Bike, Superblack MY26

Mondraker Crafty Carbon RR SL 29 Sram XX Eagle AXS 12sp Bosch CX Race Smart - 600Wh e-Bike, Superblack MY26

Reference 010.26319

€12,999.00

€11,699.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: S (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

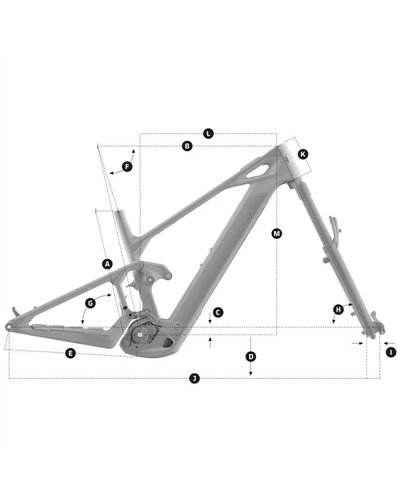

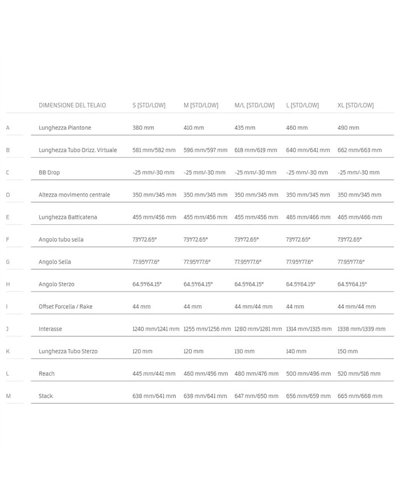

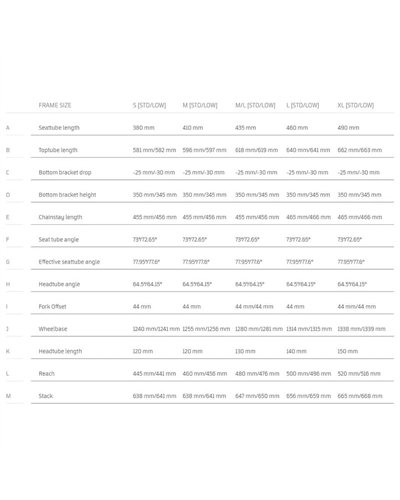

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float Factory Kashima EVOL 185x55mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CM compression, SCLRM5.2 rebound, CML, 0.2 volume spacer
Fork: Fox 36 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle: Fizik Vento Argo 00 Carbon 150mm
Front brake: Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Ultimate, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
Rims: e*thirteen Sylvan Race Carbon IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5, tubeless ready, 3C Maxx Grip, EXO+ Protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 tubeless ready, 3C Maxx Terra, EXO+ Protection, 60TPI, folding bead
Crankset: E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram XX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram XX Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Casette: Sram XS-1295, 10-52T, T-Type, 12s
Weight: 20,9 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line CX RACE (25Km/h) SMART SYSTEM (BDU386Y)
Battery: Bosch Powertube 600Wh
