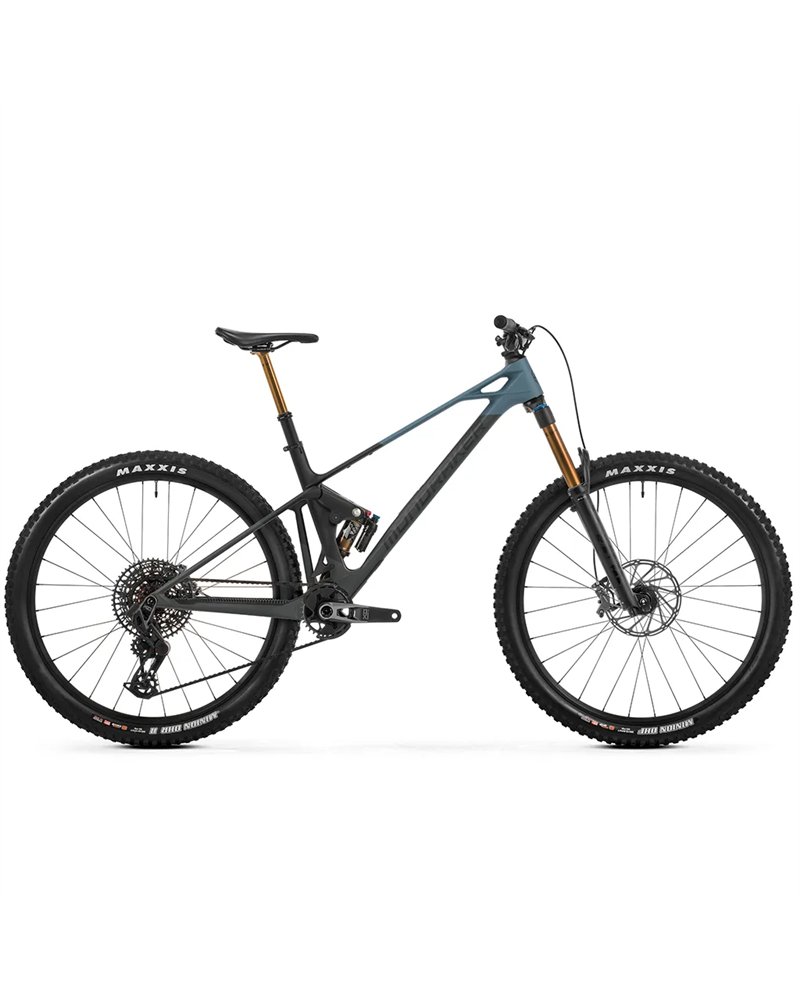

Mondraker Raze Carbon RR 29 Sram X0 Eagle AXS 12sp, Obsidian Grey MY26

Mondraker Raze Carbon RR 29 Sram X0 Eagle AXS 12sp, Obsidian Grey MY26

Reference 010.26049

€7,299.00

€6,569.10 Save 10%

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: S (Contact Us)

S (Contact Us)
M (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

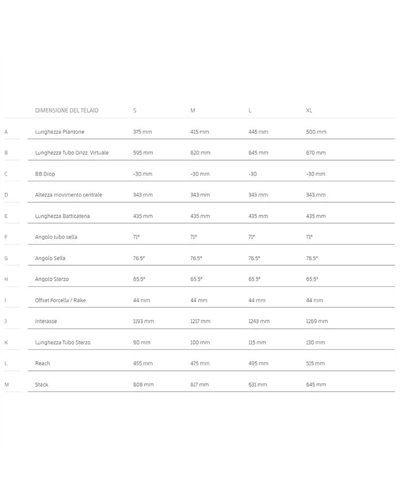

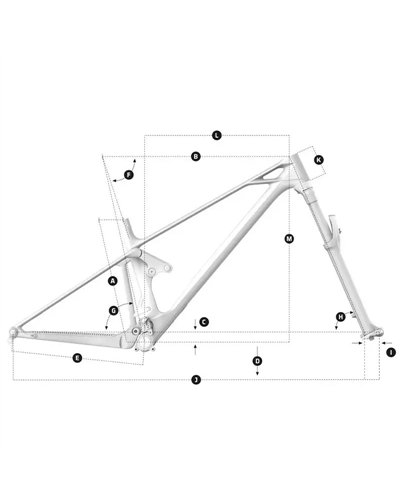

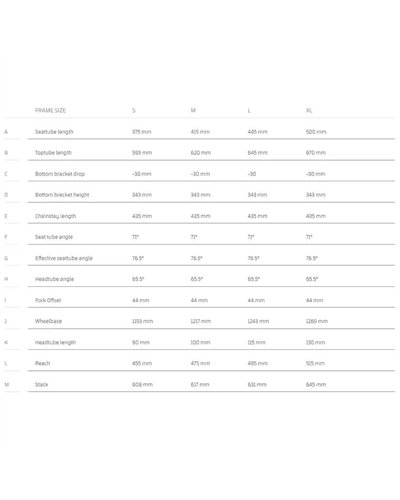

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock: Fox Float-X Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CS40 compression, RL40 rebound, Rezi B40, air volume spacer 0.6
Fork: Fox 36 29 Float GRIPX2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offsete. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0°, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle: Fizik Vento Argo X5
Front brake: Sram Motive Silver 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Motive Silver 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Motive Silver, tools-free reach adjust, lever pivot bearings
Rims: DT Swiss XM1700 Spline 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes
Spokes: DT Competition, straightpull
Front hub: DT 350, Boost 15x110mm, IS 6 bolts
Rear hub: DT 350, Boost 12x148mm, 36T SL Ratchet system, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset: Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 165mm, CL 55
Rings: 32T, CNC-machined alloy, T-Type
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram X0 Eagle AXS T-Type,12s
Shift levers: Sram Eagle AXS Pod, 12s
Casette: Sram XS-1275, 10-52T, T-Type 12s
