Colnago V5RS Disc - STBU

Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

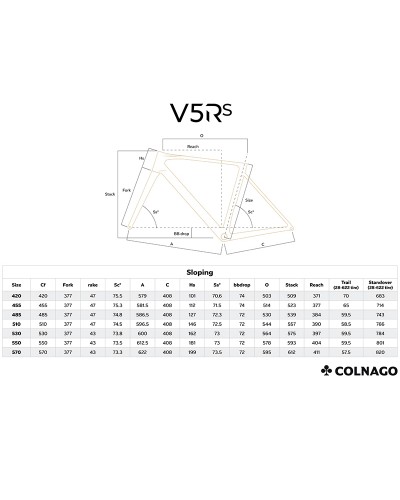

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

KIT V5RS DISC:
#001: Groupset Campagnolo Super Record WRL - Wheels Bora Ultra WTO 45
#002: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5
#003: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5 - PowerMeter for Shimano Dura Ace Di2
#004: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50
#005: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50 - PowerMeter for Shimano Dura Ace Di2
#006: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45
#007: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45 - PowerMeter for Shimano Dura Ace Di2
#008: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Fulcrum Sharq 57
#009: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Vision SC45
#010: Groupset Sram Red AXS E1 - Wheels Vision SC45 - PowerMeter for Sram Red eTap AXS
#011: Groupset Sram Force AXS E1 - Wheels Vision SC45

SIZE: 420 - 455 - 485 - 510 - 530 - 550 - 570

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.

To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.

FEATURES

The lightest Colnago ever
The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.

Thinner profiles
The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.

Narrow frontal area
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.

Stiff and responsive
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.

More precise steering
The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.

Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.

The V5Rs has been designed to improve every aspect of riding: weight, aerodynamics, rigidity and handling, taking into account the real needs of racing. The only goal: to win.

TECHNICAL DETAILS

Weigth
Weigth: Size 485 unpainted frame: 685g
Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

Frame kit
Frame (material): Colnago V5Rs Monocoque carbon frame
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.
Headset: 1"1/8 and 1"1/4 - SLT Treated Bearings
Seatpost: Standard Option: Carbon seatpost, 15mm offset - Sold separately: Carbon seatpost, 0 mm offset
Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
