BMC Teammachine R 01 Four Shimano Ultegra Di2 12sp, Carbon Doodle MY27

Product available in 10 working days.
Contact us for more information, details and availability.

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

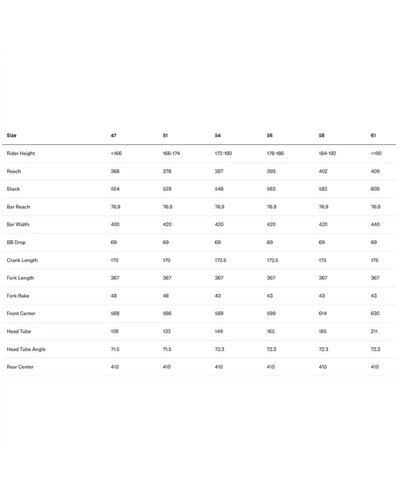

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

The Teammachine R 01 FOUR delivers pure race performance, shaped by data, testing and competition. Developed with Red Bull Advanced Technologies, it brings elite race engineering to every rider.
Our 01 Premium Carbon layup keeps this frameset exceptionally light and brutally efficient, with stiffness exactly where a racer needs it. Shimano’s Ultegra Di2 groupset provides reliable, precise braking and shifting with a 4iii power meter for real-time performance insight. The ICS Carbon Aero Gen 2 one-piece cockpit and CR 50 Carbon tubeless-ready wheels complete a system designed to hold speed when it matters most.
And then there’s the front end. The wide-stance fork isn’t just fast – it’s unmistakable. By calming turbulence and stabilizing airflow around the wheel, it gives the Teammachine R 01 FOUR an aerodynamic advantage visible from a distance and undeniable on the road.

SPECIFICATIONS

Frameset
Frame: Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork: Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit
Handlebar: ICS Carbon Aero Gen 2 | One-Piece Full Carbon Cockpit | 135mm drop, 81mm reach, 12° flare
Grips: BMC Tacky 3mm

Seat
Seatpost: Teammachine R 01 | 01 Premium Carbon Seatpost | 0mm Offset Size 47-51 and 10mm Offset Size 54-61
Saddle: Selle Italia SLR Elite | Lightweight Tubular Steel Rails | 145mm

Drivetrain
Crankset: SHIMANO Ultegra (FC-R8100)
Chainrings: 52-36T
Power Meter: 4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette: SHIMANO Ultegra (CS-R8101)
Cassette Size: 11-34T
Chain: SHIMANO CN-M8100
Front Derailleur: SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur: SHIMANO Ultegra Di2 (RD-R8150)
Shifters: SHIMANO Ultegra Di2 (ST-R8170)
Gears: 2 x 12
Bottom Bracket: SHIMANO Ultegra Press-Fit Bottom Bracket (SM-BB72-41B)

Brakes
Brake Levers / Calipers: SHIMANO Ultegra (BR-R8170)
Rotors: SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R): 160 / 160mm

Wheels
Rims: CR 50 Carbon | Tubeless Ready | 50mm
Hubs (F/R): TXC-812 & TXC-240A Center Lock
Tires: Pirelli P Zero Race TLR | Tubeless | 28mm
Tubeless Information: Tubeless Rim | Tubeless Tires

Accessories
In the Box: Aerocore Bottle Cages | High and low ICS top cones, 3x10mm spacers , 2x3mm spacers

Additional Information
Tire Clearance: 30mm measured tire
Weight without Pedals: 7.6kg | Size 54 as pictured with all accessories
ASTM Classification: Level 1
System Weight Limit: 110kg

General Product Safety Regulation (GPSR): Safety Instructions GPSR (EU) / Responsible person according to GPSR (EU)
