The natural evolution of our high-end aerodynamic bike used by professionals.
The natural evolution of our high-end aerodynamic bike used by professionals.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

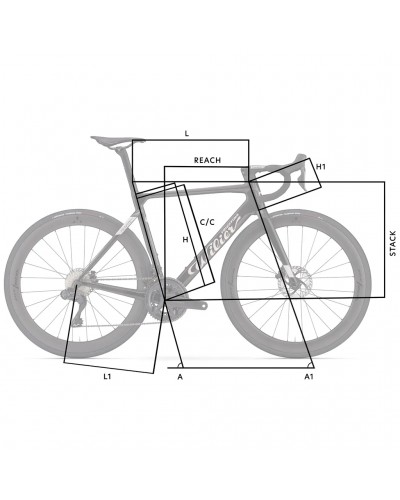

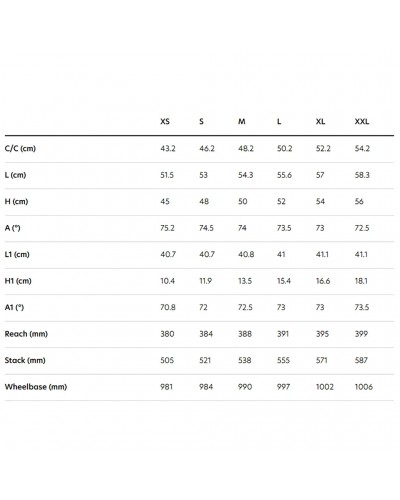

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
KIT FILANTE SLR:
#001 - E603WLE: Groupset CAMPAGNOLO SUPER RECORD WRL 2x13 - Wheels MICHE KLEOS RD 50 CARBON | CERAMICSPEED BEARINGS
#002 - E503TBE: Groupset SRAM RED AXS E1 2x12 + POWERMETER - Wheels MICHE KLEOS RD 50 CARBON | CERAMICSPEED BEARINGS
#003 - E603IDC: Groupset SHIMANO DURA ACE Di2 R9270 - Wheels MICHE SWR EVO 50 CARBON
#004 - E603F3O: Groupset SRAM FORCE AXS E1 2x12 - Wheels MICHE KLEOS 50 CARBON
#005 - E503LDO: Groupset SHIMANO ULTEGRA Di2 R8170 - Wheels MICHE KLEOS 50 CARBON
#006 - E603LDC: Groupset SHIMANO ULTEGRA Di2 R8170 - Wheels MICHE SWR EVO 50 CARBON
#007 - E603IP3D: Groupset SHIMANO DURA ACE Di2 R9270 + POWERMETER - Wheels MICHE S 50 CARBON
#008 - E603ID3D: Groupset SHIMANO DURA ACE Di2 R9270 - Wheels MICHE S 50 CARBON
SIZES: XS - S - M - L - XL - XXL
The natural evolution of our high-end aerodynamic bike used by professionals.
Filante SLR is an extremely lightweight aerodynamic bicycle with a significantly improved stiffness-to-weight ratio.
Aerodynamic
Filante SLR was designed to maximise aerodynamic performance in real environmental conditions. The design was based on data recorded in the wind tunnel (where the wind is very clean for homogeneous empirical results) while also taking the real world into account. In this way, we not only evaluate typical wind tunnel data (yaw angles from -20° to + 20°), but also consider environmental turbulence that impacts the bike for many different reasons.
That’s why we redesigned the profiles, starting with the standard NACA airfoils/ KAMM tail that no longer have sharp edges on the back. The softened angles improve performance even when the airflow is disturbed.
The inside of the front fork has been widened by 7 mm, making it 13.6% wider than the Cento10PRO. In doing so, we moved the fork blades away from the wheel, reducing turbulence and improving aerodynamics.
240 Fittings available
Since the fork steerer tube is no longer bevelled, we can install up to 35 mm of spacers under the handlebar. By combining frame sizes, handlebar sizes, and spacers, we can achieve 240 different fittings, with no overlap between combinations. This doubles with the two available seat posts, with a 15 mm or 0 mm setback.
Lightweight and Responsive
The new aerodynamically optimised profiles helped us eliminate extra weight in the frame’s construction. The shape has no sharp edges and, therefore requires less material and less resin in the corners. This improves the homogeneity of the inside, reducing the frame’s weight to a mere 870 grams. The assembled bike with top-of-the-range specifications weighs 6.8 kg.
Thanks to the different types of carbon we used in combination with the Liquid-Crystal Polymer, the unique fibre positioning and the construction technology, we have reached an absolute level of lightness and stiffness.
The lower overall weight compared to the exceptional stiffness increases STW by 12.5%. This improvement is clearly felt with the steering precision and the feeling of safety at high speeds.

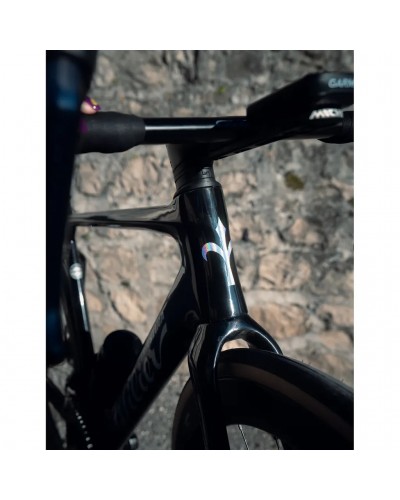

Handlebar and integrated cables
In addition to being lightweight, (350 grams for the 101x42 size) the integrated carbon monocoque Filante Bar handlebar houses the brake and derailleur cables, directing them toward the inside of the frame. Its design is very simple, with sinuous and rounded lines for maximum grip ergonomics.
Balanced Design
Six sizes, one feeling. The sections of the tubes of various sizes were designed to maintain consistent rigidity, handling quality and comfort on every frame size.
Easy-fit spacer
The spacers between the frame headset and the handlebar are made of a high-stiffness composite material, with a special cavity for the cables. They are composed of two parts for quick assembly and disassembly without interfering with the cables running from the handlebar to the frame.
Miche Light RD Thru Axles
These axles, made of anodized AL 7075-T6, embody the perfect blend of strength and lightness. Specifically engineered for Wilier Triestina's Verticale SLR, Filante SLR, and 0 SLR road models, they deliver exceptional reliability and optimal performance.
Weighing just 64 grams per pair, these axles provide both speed and ease of use, making them the ideal choice for those striving for the best in any situation.
TECHNICAL DETAILS
Frame: FILANTE SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Fork: FILANTE SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Headset: CUSTOM SUPERSLIM 1-1/4" UPPER BR | FSA MR137 1-1/4" LOWER BR
Axle: MICHE THRU AXLE LIGHT 12X119.5F 12X166.5R
Frame weight: 870 g +/- 5%
Fork weight: 360 g +/- 5%
Data sheet
