MAIN FEATURES
Superlight and durable for everyday performance
ISM4D rim weighs only 400g.
Patented lightweight aero spokes and 22mm deep/19mm wide rims keep inertia low and control high.
Solid upper rim bridge eliminates the need for rim tape, saving 60g.
Laterally stiff, vertically compliant for a more dynamic ride
Fore technology keeps the rim upper bridge solid to make the rim stiffer.
New Infinity hub plaform: stiff axle, durable bearings and new hub design guarantees wheel stability.
ID360 freewheel technology for improved power transfer.
Improved UST Road delivers more speed, comfort and control in an easy to use tubeless system
No tubes means less friction, better efficiency and grip, a reduced risk of punctures.
New rim bed shape makes it easier to mount and change tires.
Fore drilling technology doesn't require the use of rim tape.
SPECIFICATIONS
Weight
Weight Pair: 1575 g
Weight Front: 723 g
Weight Rear: 852 g
Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 19 mm
Drilling: Fore tapeless tubeless technology (front/rear 24 holes)
Braking: disc
ETRTO size: 622x19TC hooked
Tire: UST Tubeless Ready
Spokes
Material: steel
Material: stainless steel
Shape: straight, aero, constricted, antirot (front and rear)
Nipples: brass, black
Screw: M6
Lacing: crossed 2 (front and rear)

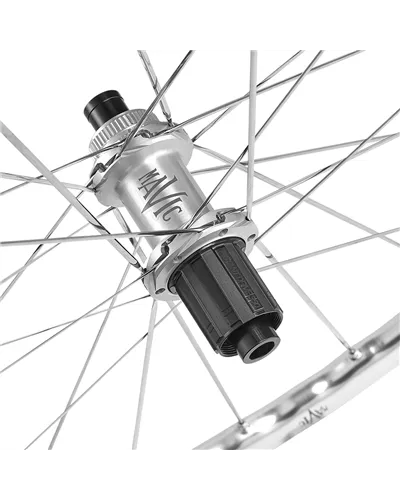

Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminum
Axle size: front 12x100 / rear 12x142
Freewheel technology: Instant Drive 360
Freewheel: -
Bearing technology: QRM automatic setting - sealed cartridge
Compatibility
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Delivered with
User guide
UST valve not mounted on wheel
2 Multifonction adjustment wrench with the rear wheel
Intended use
Minimum tyre size: width 23mm - pressure max. 6.75Bar/97PSI
Maximum tyre size: width 62mm - pressure max. 3.8Bar/55PSI
ASTM category 2: road and offroad with jumps less than 15cm
Maximum weight supported by the wheels: must not exceed 120 kg (bike weight included)
Data sheet
