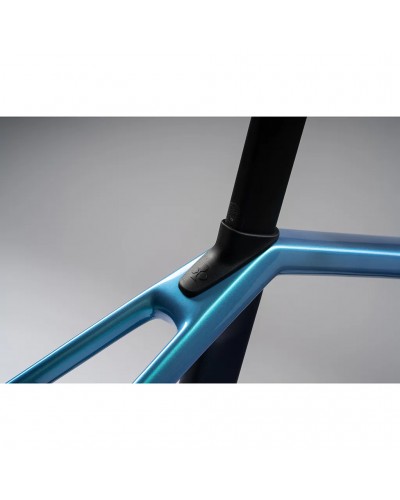

Colnago C72 Disc - HFTB - Bike Sport Adventure

Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

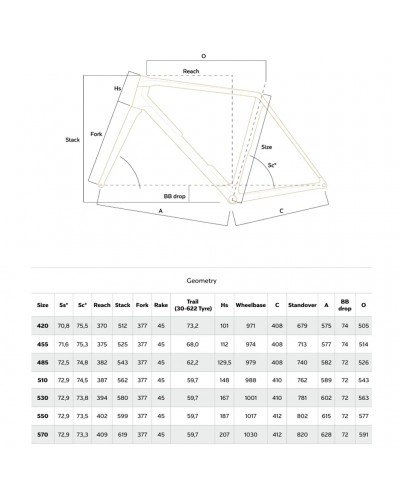

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

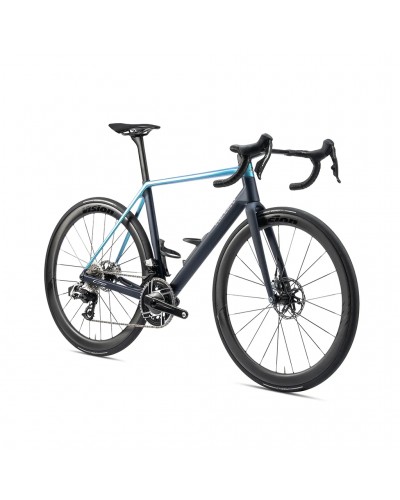

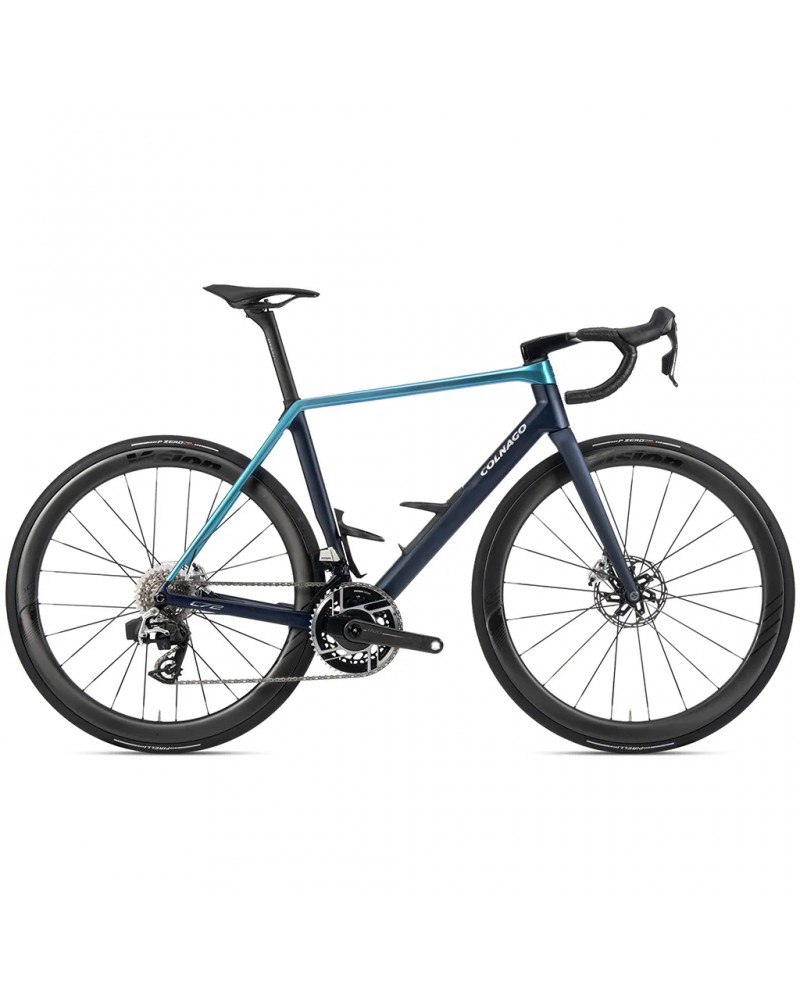

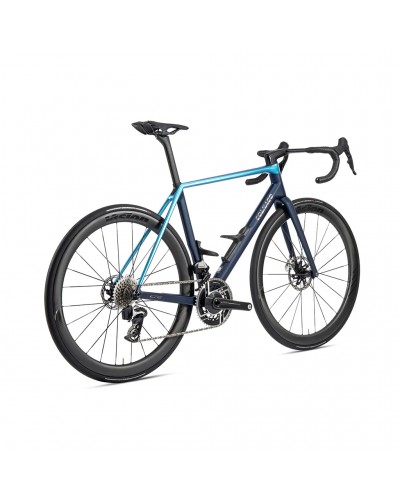

Handmade in Italy, the C72 represents a new synthesis of performance, craftsmanship and design. In the C72, every element is developed in harmony — structure, materials, geometry and ride feel working together as a cohesive whole - perfectly composed.

KIT C72 DISC:
#001: Groupset Campagnolo Super Record WRL Disc - Wheels Campagnolo Bora ULTRA WTO 45 DB
#002: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Enve SES 4.5
#003: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Enve SES 4.5 - PowerMeter for Shimano Dura Ace Di2
#004: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Fulcrum Sharq 57
#005: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Fulcrum Sharq 57 - PowerMeter for Shimano Dura Ace Di2
#006: Groupset Sram Red AXS Disc - Wheels Enve SES 4.5 - PowerMeter for Sram Red eTap AXS

SIZE: 420 - 455 - 485 - 510 - 530 - 550 - 570

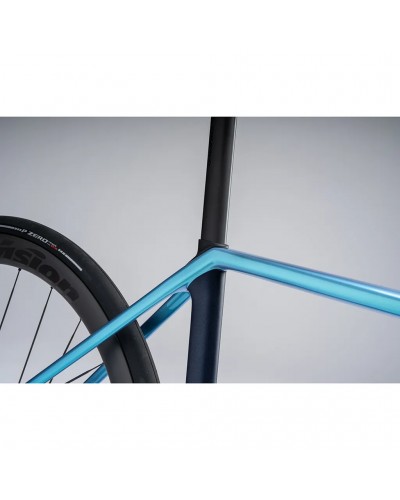

Improved compliance and wider tires (up to 35mm)
Comfort and control are enhanced through improved vibration absorption and increased grip. A redesigned rear triangle and seat area improve compliance, while wider tire clearance allows for larger tires — reducing road vibrations and enhancing traction, especially on longer or rougher rides.

Integrated storage box
For a bike conceived to deliver a total riding experience, a neatly integrated storage compartment was created - with a twist of the tab at its bottom, the bottle cage lifts off to reveal a storage compartment.

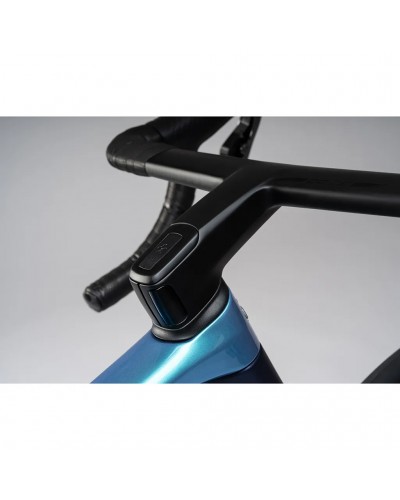

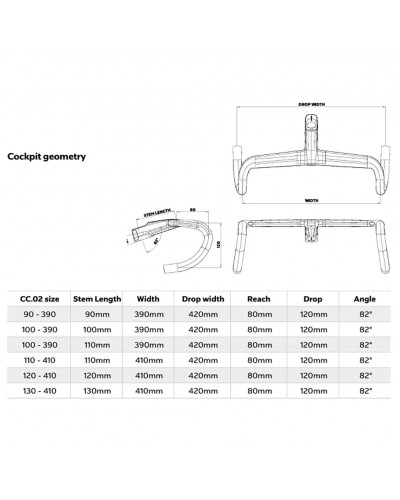

The new CC.02 integrated cockpit
The CC.02 has a new curve shape, that enables a more aggressive position and better brake control on a lower position - for better handling and confidence. It is lighter than its predecessor - 15 grams less than the CC.01.

Updated geometry - it adapts to your needs
While maintaining its racing DNA, the bike can now be set up for greater comfort on long rides. An updated geometry — with an increased stack-to-reach ratio — allows for a more relaxed, endurance-oriented position when needed.

Lighter than the previous C
The frame is lighter than its predecessor, enhancing responsiveness and overall riding feel. A size-485 unpainted frame (with no metal parts) weighs 895g, 30g less than C68. With the right setup the bike can easily reach a weight of 6.8kg

A unique riding feeling - a bicycle perfectly composed
The C72 delivers a unique riding feeling — perfectly composed. Responsive when pushed, yet stable and refined over distance, it adapts to the rider, revealing the true essence of performance: the ability to make every ride its own.

The C72 proudly continues the tradition of the modular frame
The frame is constructed from several carbon parts that are hand-assembled in Italy through joints and interlocks. The number of parts that complete the frame, i.e. 7, is the same as the previous C model

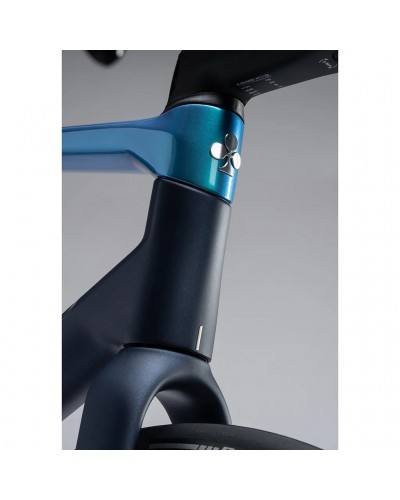

A new design language for lugs: panel gap
On the C72, multi-piece construction evolves into a design language. Each junction is defined with the precision of panel gap matching, where alignment and continuity shape the perception of quality. The result is a frame that feels cohesive, refined, and deliberately composed.

An art jealously guarded and handed down
The tradition of modular carbon frames began at Colnago in the early 1990s. Colnago was the first brand in cycling history to introduce carbon frames to professional teams, winning a technically demanding race like the Paris Roubaix with the legendary C40.

Greater care and precision in module production compared to a complete frame
The smaller moulds of the individual modules allow us to work with greater care and obtain the highest quality carbon parts.

TECHNICAL DETAILS
Weigth: Size 485 unpainted frame: 895g
Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg
Frame (material): Modular carbon frame construction: 7 carbon parts.
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section
Headset: ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

Reference C72-DISC-HFTB_#001-42

Data sheet
