The elegance of steel, reinvented.
The elegance of steel, reinvented.
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

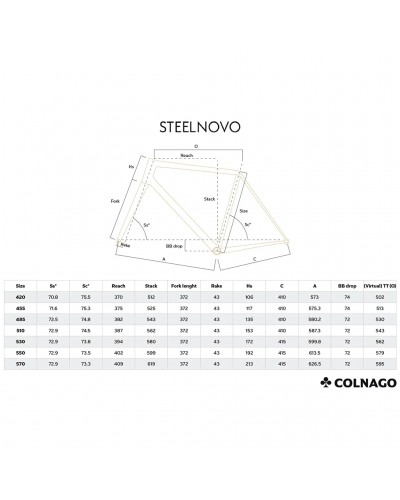

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
KIT STEELNOVO DISC:
#001: Groupset Campagnolo Super Record WRL Disc - Wheels Campagnolo Bora ULTRA WTO 45 DB
#002: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Enve SES 4.5
#003: Groupset Shimano Dura Ace R9270 Di2 Disc - Wheels Enve SES 4.5 - PowerMeter for Shimano Dura Ace Di2
SIZE: 420 - 455 - 485 - 510 - 530 - 550 - 570
Hidden Welds
The essential shapes of the tubes blend seamlessly into one another, thanks to precise welding.
Complete Integration
The cables on this bike are fully integrated, giving the bike a modern look on par with top-of-the-line carbon fiber models.
3D-Printed Lugs
The Steelnovo features innovative 3D-printed lugs, allowing for perfect insertion into the frame with precision of less than one hundredth of a millimeter.
Columbus Tubes
The tubes are manufactured by Columbus, Colnago's longtime partner, which has produced the brand's most iconic and prestigious steel models, from the Colnago Super to the Master.
TECHNICAL DETAILS
Frame (material): Steel tubes and lugs with 3D-printed steel lugs
Fork (material, section note): Carbon fork for disc brakes, integrated cables, 1.5" section
Headset: 1.5" - 1.5" (tapered)
Seatpost: Carbon seatpost not included, compatible with round section 27.2mm
Thru-axles: Diameter: 12mm, length 100mm (front) - 142mm (rear)
Bottom bracket: Compatible with standard T47 - 86mm (not included)
Maximum tire size: 35mm + 4mm clearance
Weight: Size 510 painted frame: 1,895g
Weight limit: This model has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 110kg
Data sheet
No customer reviews for the moment.
Road cyclists looking for an advanced steel frame
Designed for road cycling, with a steel frame and 3D-printed lugs. Full internal cable routing and hydraulic disc brakes make it suitable for a technical, clean setup.
Anyone wanting a rigid bike with a modern setup
Suitable for those seeking a rigid structure, with a carbon fork for disc brakes and integrated cable routing. The configuration keeps a precise, tidy road-oriented setup.
Cyclists interested in multiple frame sizes
Sizes 420, 455, 485, 510, 530, 550 and 570 cover different fitting requirements. It is a useful choice for those looking for a steel road bike with geometry to be checked against the dedicated spec sheet.
Ideal
Road rides with hydraulic disc brakes
Perfect for road use, with braking control entrusted to hydraulic disc brakes. The setup remains consistent with a rigid, precise road bike.
Hydraulic disc brakes · Road · Rigid frame
Very suitable
Road bike build with dedicated wheels
Suitable for builds with Campagnolo Bora ULTRA WTO 45 DB or Enve SES 4.5. The wheels listed in the spec sheet complete a bike designed for road use.
Campagnolo Bora ULTRA WTO 45 DB · Enve SES 4.5 · Road bike
Suitable
Custom fit with different frame sizes
Suitable when a choice between several frame sizes is needed. The availability of sizes from 420 to 570 helps define the correct fit.
Sizes 420-570 · Steel frame · Road
Experienced road cyclist
Customer wanting a steel road bike
The intended use is road racing. The spec sheet therefore places it in the road category.
The frame is made from steel tubes and lugs with 3D-printed steel lugs. It is a metal structure with very careful workmanship.
It is fitted with hydraulic disc brakes. In use, this means braking designed for road riding and precise control.
Campagnolo Bora ULTRA WTO 45 DB and Enve SES 4.5 are listed. The spec sheet presents them as configuration options.
The frame sizes are 420, 455, 485, 510, 530, 550 and 570. This makes it possible to choose the most suitable fit.
It has no motor. It is therefore a traditional road bike.
