Cinelli Nemo Tig Disc Road Frameset (Factory Colors)

Contact us for availability of your size, color and estimated delivery times.

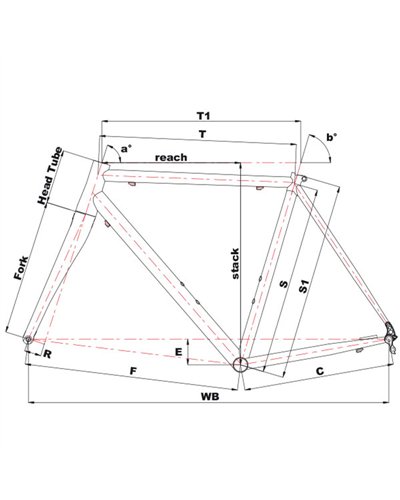

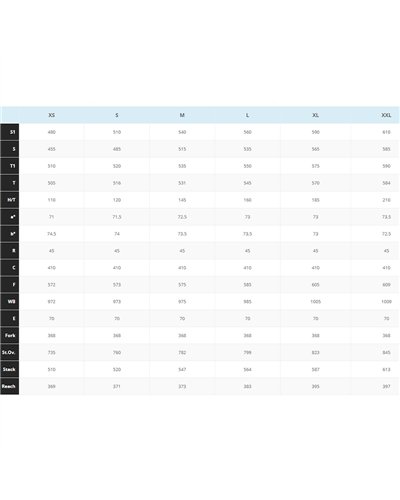

Frame geometry on the attached sheet.

The Nemo TIG is Cinelli’s latest Made in Italy high-performance steel road frame. It looks and rides the way in which the legendary Supercorsa – the world’s longest running production steel frame – might have looked had it been designed for racing today rather than in the 1950s.
The first prototypes of this frame were born according to the specifications of a recently retired Italian professional rider working at Cinelli who, seduced by the Columbus tubing being manufactured on the factory floor attached to the Cinelli offices, demanded that Cinelli produce a pure racing steel frame that took full advantage of the latest advances in high tech steel tubing manufacturing.
Accordingly the Nemo has been designed for riders used to riding high-end carbon fiber racing frames, unwilling to sacrifice “race feeling”, but looking for something incomparably pleasurable to ride in the way only a steel frame can be. It employs custom-shaped Columbus Spirit triple-butted tubes (the seat stays, for example, are the identical shape of those found on the original 1981 Cinelli Laser road model), with a highly contemporary 44mm mega-oversized downtube, conical CNC’d head tube and Columbus’ latest Futura straight blade monocoque carbon fiber fork.

AERODYNAMIC: 4/6
CLIMB: 4/6
REACTIVITY: 4/6
COMFORT: 6/6

Sizes: XS (48) - S (51) - M (54) - L (56) - XL (59) - XXL (61) - Made to Measure (€ 350 UPCHARGE FOR Custom geometry)
Frame: COLUMBUS SPIRIT HSS Tubeset
Headset: IS 42/28,6 | IS 52/40
Seat Post: Ø 27,2mm
Seat Clamp: Integrated
BB standard: BSA 68mm / Press Fit 86,5 x 41 (custom)
Front derailleur: Clamp Ø31,7mm
Cable routing: External / Internal Hydraulic Disc brake housing
Tire clearance: up to 700x28c
Fork: COLUMBUS FUTURA Disc 1-1/8” - 1-1/2”
Weight: Frame 1850 g (size M) - Fork 440g
Brakes standard: Flat mount disc brake - Rotor size up to 160mm
Hub spacing: Rear TA Ø12x142mm / M12x1,5 L173mm skewer - Front TA Ø12x100mm / M12x1,5 L119mm skewer
Frame Kit: Front derailleur clamp / Front&Rear Skewer / Headset
Features: Columbus Extralight custom / Winged dropouts / Internal painting

Colors: 34 Factory Colors (Black Dog / Anthracite / Silver / Silver Bullet / Pearl White / Champagne / Deep Red / Cherry Bomb/ Radiant Orange / Racing Red / Copper / Brow / Moka / Eggplant / Marc / Purple Haze / Deep Pink / Pink / Blue / Turquoise / Light Blue / Water Green / Sugar Paper / Sun / Green Special / Emerald Green / Olive Green / Green / Lime Green / Yellow Moon / Gold / Grey Room / Blue Sky / Orange Blossom)
