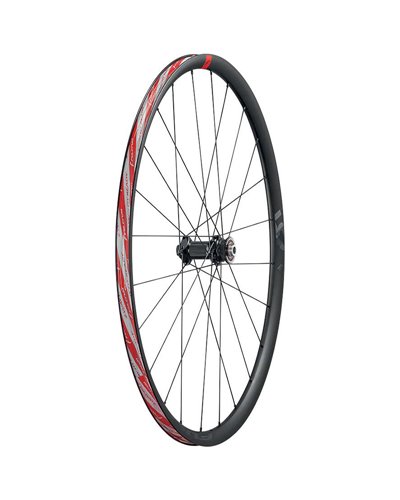

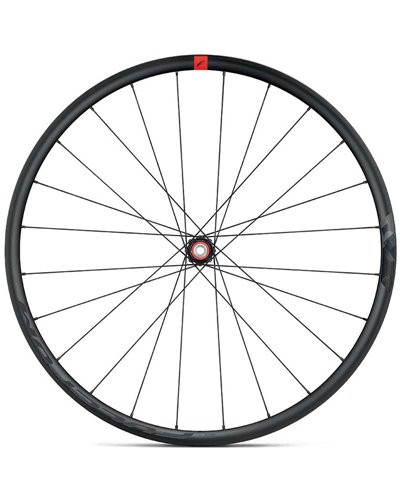

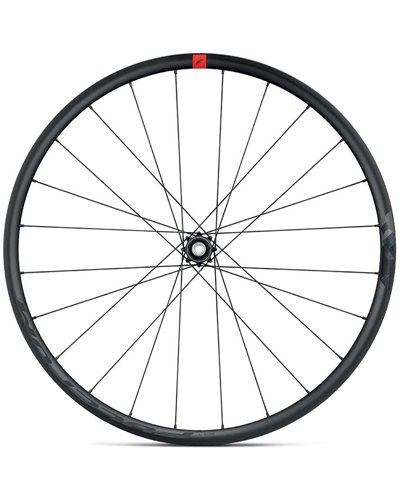

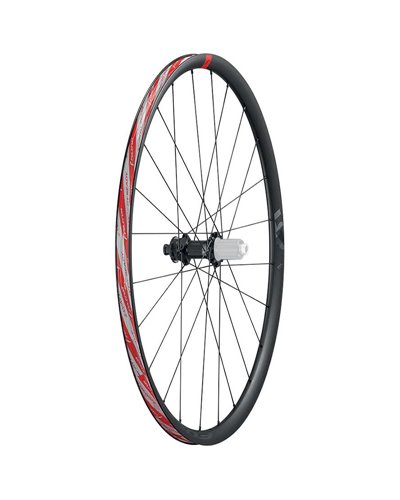

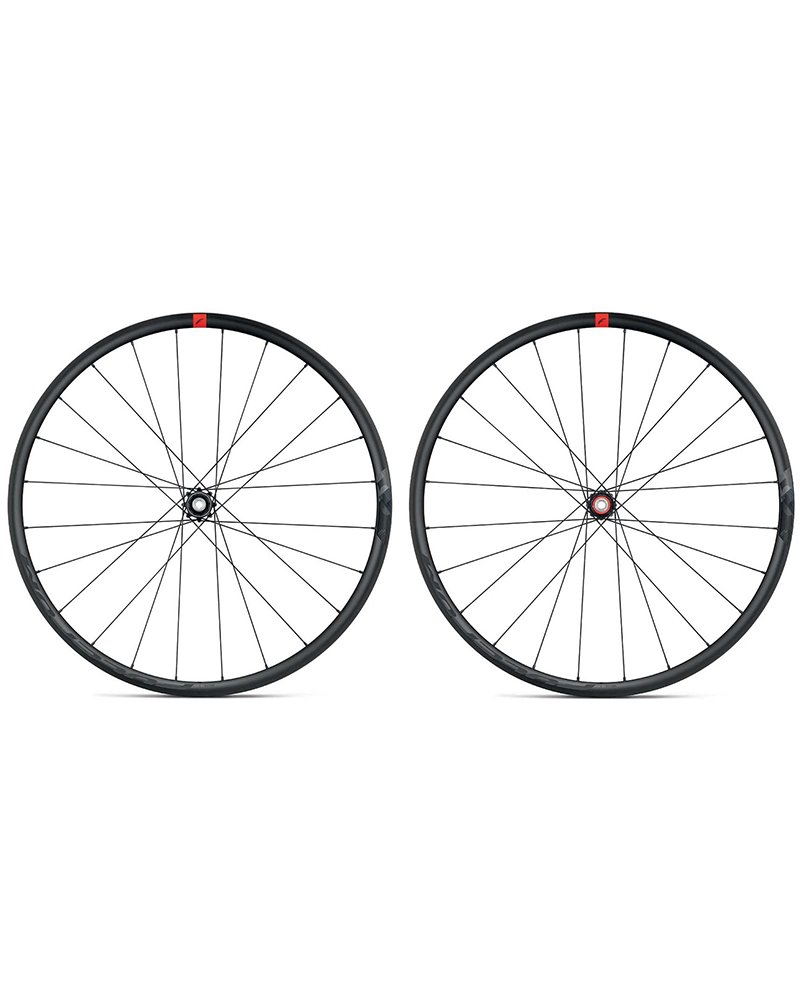

The new Racing 5 DB wheels are the perfect choice for endurance bikes.
The new Racing 5 DB wheels are the perfect choice for endurance bikes.
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
The new Racing 5 DB wheels are the perfect choice for endurance bikes. The lower aerodynamic resistance and decreased stiffness, achieved with the lower 24 mm U-shaped profile, makes them the ideal technical choice for long rideswithout having to worry about climbing, rain or wind, with a consequent saving in energy and increased comfort.

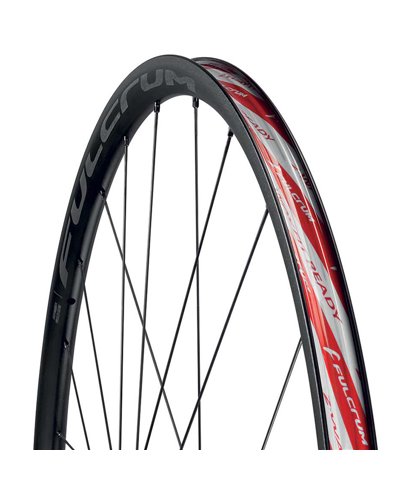

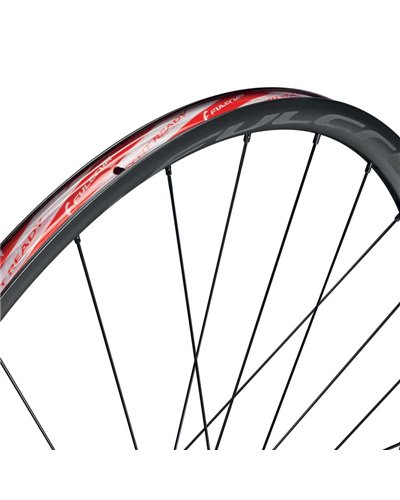

In this case to the aluminium rim has seen an increase in the inner channel width, up to 20 mm from the previous model’s 17 mm, and the addition of theinnovative 2 Way Fit system, to comfortably fit 25-28 mm tyres, both clinchers and tubeless (tubeless tape installed and valves included).
The aesthetics have undergone the same intervention as the Racing 4 DB model, with the new laser etched graphics, ensuring the long life of their striking design.
TECHNOLOGIES
Anti-Rotation System™
F.I.C. Fulcrum Identification Card - 100% HANDMADE QUALITY
Tracciabilità
AFS axle system™
Disc specific Rim
Asymmetric-rim
2-Way Fit™ Ready (Road)
FEATURES
Tyre type: 2-Way Fit™ Ready (Clincher/Tubeless ready)
Tyre size: 700c
Discipline: Road
ASTM Category: 2
Weight: 1660 g
Rim material: Aluminum
Rim material details: Aluminum
Profile height: Low
Rim height: Front and rear 24 mm
Rim width: 25 mm
Inner rim width (channel): 20 mm
Braking system: Disc brake
Braking surface/ Brakes Options: AFS™
Front axle compatibility: HH12-100
Rear Axle compatibilty: HH12-142
Front wheel spokes: 24, Left 16 - Right 8
Rear wheel spokes: 24, Left 8 - Right 16
Spokes: material: Stainless steel
Spokes: profile technology: Rounded, straight pull
Nipples: Aluminum

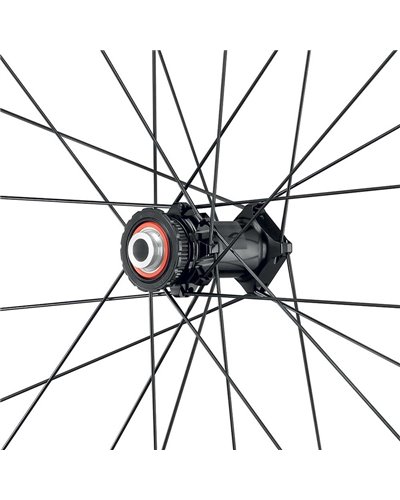

Front hub: Aluminum, Aluminum flanges

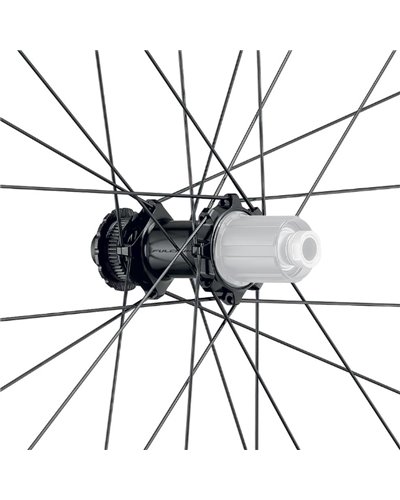

Rear hub: Aluminum, Aluminum flanges
Bearings: Sealed cartridge bearings, adjustable
Others: Lasered + Stickers
Weight limit (system): 120 kg
FWB Version: HG, XDR, N3W
* The "Racing 500 DB" custom model has the same technical features as the "Racing 5 DB" model described here
Data sheet
No customer reviews for the moment.
Endurance road bike
Designed for riders using an endurance road bike who want an aluminium wheelset with a 24 mm low-profile rim. The structure prioritises comfort, durability and lower aerodynamic drag on long rides.
Set-ups with 25-28 mm tyres and tubeless
Suitable for riders who want to use 25-28 mm tyres, including tubeless versions. The 2-Way Fit™ Ready system supports use with clincher or tubeless ready tyres.
For riders seeking a regular-use road wheelset
Suitable for those looking for a 700c aluminium wheelset weighing 1660 g and featuring AFS™ standard. The configuration is aimed at practical and reliable road use.
Ideal
Long road rides
The 24 mm low-profile rim helps reduce fatigue on long road rides. The wheel is designed for endurance bikes and regular use.
24 mm profile · Endurance bike · Road
Very suitable
Use with tubeless ready tyres
The 20 mm internal width and compatibility with 25-28 mm tyres, including tubeless versions, make it suitable for this setup.
20 mm internal width · Tubeless ready · 25-28 mm tyres
Very suitable
Disc braking on a road bike
The AFS™ standard and compatibility with HH12-100 and HH12-142 make it suitable for a disc brake installation on a road bike.
AFS™ · Disc brake · HH12-100 / HH12-142
Suitable
Aluminium wheelset for regular use
The aluminium construction and 1660 g weight place it in a range suitable for consistent road use.
Aluminium · 1660 g · Wheelset
Endurance road cyclist
Rider fitting a road bike with disc brakes
The intended use is Road. The product sheet lists it as a solution for endurance bikes.
The weight is 1660 g. The same value is also listed as component weight.
The diameter is 700c, with a rim height of 24 mm and a rim width of 25 mm.
Yes, it is compatible with 25-28 mm tyres, including tubeless versions. The product sheet indicates the 2-Way Fit™ Ready system.
The product sheet lists HH12-100 and HH12-142. Compatibility with AFS™ is also stated.
The main material is Aluminium. The wheel material and the rim are also listed as Aluminium.
