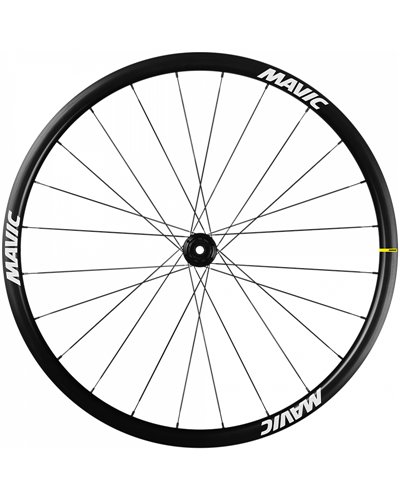

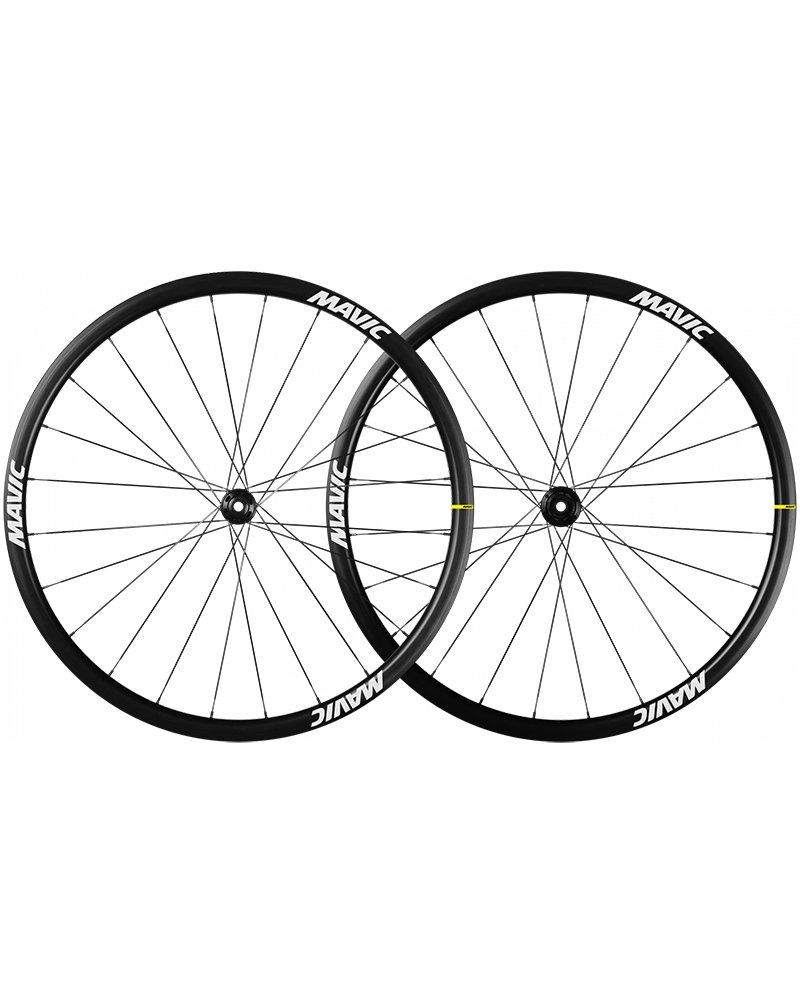

Mavic Ksyrium 30 Disc DCL Center Lock Wheelset

KEY BENEFITS

Light and aero rim?
30mm deep profile Optimized rim wall thickness Welded

Dynamic and agile
Double butted spokes Infinity hub design ID360 freewheel?

Refined tubeless technology helps you roll faster and smoother and is easy to set up and maintain?
Optimized UST rim bed shape Durable and perfectly airtight tape system

The new Ksyrium 30 Disc is a perfect entry point into high-level race performance. This all-new UST Road Tubeless system delivers a smoother ride and improved puncture resistance while retaining a lightweight feel for climbing and accelerating.

By removing the tube, we’ve also removed friction, so there’s less rolling resistance, which means it requires less energy to reach higher speeds.

The 30mm deep rim optimizes aero performance and improves stability in crosswinds. The alloy rim benefits from our unrivaled experience creating light yet strong rim extrusions. We do this by carefully tuning the thickness of the rim wall to hit the sweet spot between stiffness, strength and weight.

The bladed straight pull spokes are laced to our high-end Infinity hub platforms : optimal spoke tension balance is a guarantee for perfect stiffness and great durability, with only 1 spokes length for both wheels to worry about.
The Instant Drive 360 ratchet freewheel system is quick to engage and offers low friction.
This hub easily converts from Shimano/SRAM to Campagnolo or XD cassette and is compatible with Center Lock disc rotors.

SPECIFICATIONS

Weight
1790 grams (Pair)

Rims
Material: Maxtal
Height: 30 mm
Drilling: traditional
Disc brake specific profile
Tire: UST Tubeless and tubetype
Internal width: 19 mm
ETRTO size: 622x19TC
UST tubeless technology
SUP welding technology

Spokes
Material: steel
Shape: straight pull, flat, double butted
Nipples: steel, ABS
Count: 24 front and rear
Lacing: front and rear crossed 2, contactless

Hubs
Front and rear bodies: aluminum
Axle material: aluminum
Front: Quick release and 12x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Infinity hubs
Instant Drive 360 freewheel technology
QRM Auto bearing preload technology

Versions
Disc standard: Center Lock® only
Freewheel: Shimano/Sram or XD-Road

Compatibilitys
Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters

Compatible Adapters and freewheel bodies
12 to 9mm front adapter for quick release ([LV2680300])
12mm front hub cap ([LV2680500] - Delivered with the wheel)
12x142 rear axle adapters ([LV2510700] - Delivered with the wheel)
12 to 9mm rear adapter for quick release ([LV2510800] - Delivered with the wheel)
ID360 Shimano / Sram Light freewheel body ([LV3850100])
ID360 Campagnolo freewheel body ([LV3440100])
ID360 XD-R freewheel body ([LV2580100])
ID360 Shimano / Sram freewheel body ([LV3430100] - Delivered on the wheel)

Intended use
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
Recommended tire sizes: 25 to 32 mm
Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2

Delivered with
Front QR adapters
Rear QR adapters for Instant Drive 360
UST valve and accessories
Pre-installed tubeless rim tape
User guide
