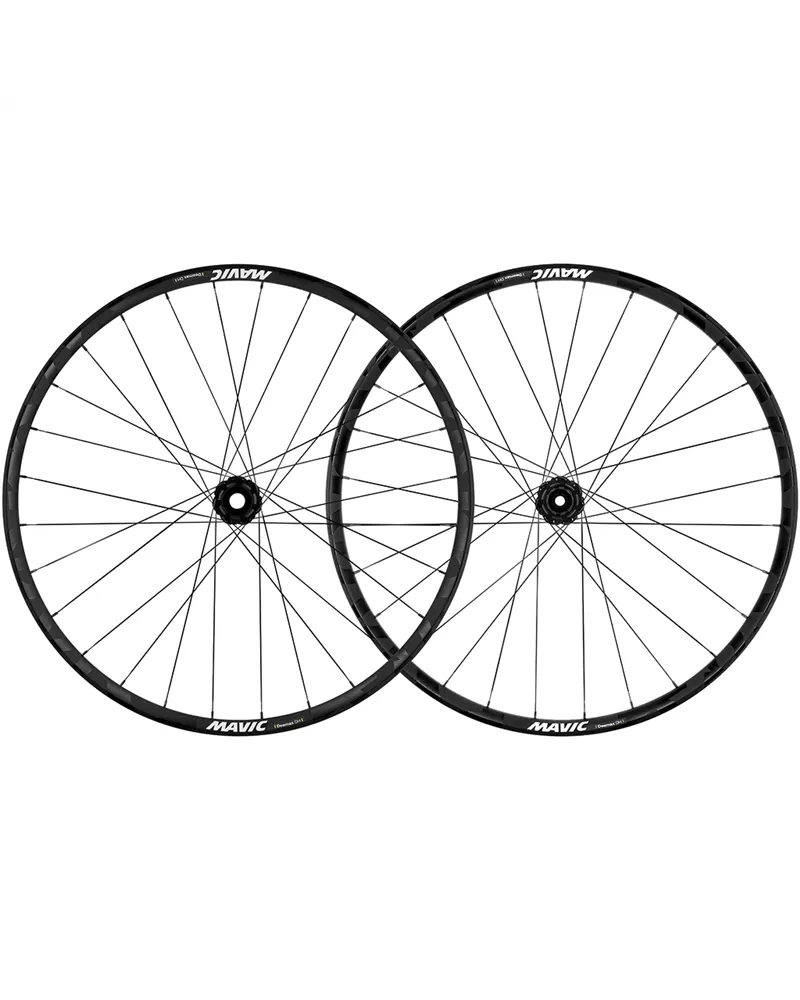

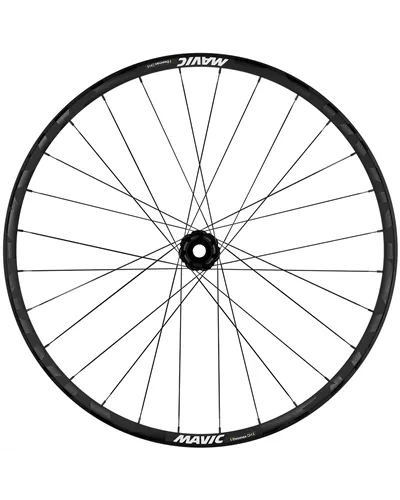

Mavic Deemax DH 29", Wheelset Boost 12x148

Designed at the foot of the French Alps and built in our workshops, this exceptional wheel has been developed, tested and approved by the Mavic DH team riders on the most demanding World Cup tracks. The Deemax DH 29 features a 30mm wide welded rim specifically designed to absorb heavy impacts, shocks and other vibrations, providing maximum confidence on rough terrain. The Deemax DH 29 makes aggressiveness fun—and vice versa.

Laced with 28 J-Bend spokes in swaged steel, the Deemax DH offers the ideal balance between robustness and compliance for maximum performance on the most demanding descents. The spokes are designed to be easy to repair, so you can get back on the track quickly and avoid a tedious pit stop or the workshop. Each wheel comes with two replacement spokes for even greater peace of mind.

To meet the demands of the DH track the double Blackshield treatment offers two levels of resistance to impacts from rocks and scratches.

The wide rim shape makes it easy to fit DH tires with cross-sections between 2.0" and 3.0", giving riders exceptional versatility to adapt their tire setup to the conditions.

The ultimate downhill wheel, the Deemax DH 29 embodies Mavic heritage and innovation and is the ideal choice for any rider looking for top performance on the roughest descents. Choose total confidence in any terrain, with ease of maintenance and versatility as bonuses.

MAIN FEATURES

Take on rough terrain with confidence
Wider welded rim (30mm width) is designed to absorb heavy impacts.
The 28 double-butted J-Bend spokes offer the best compromise between strength and dynamism.
The double rims surface protection (Blackshield), preserves the aesthetic condition of the rim against stones impacts.

Proven by pro riders
Developed, tested, and proven to meet the standards of World Cup DH racers.

Easy to service
Quick and easy to fix thanks to J-Bend spokes.
Two replacement spokes delivered with every wheelset.
Wide rim shape facilitate DH casing tire between 2,0’’ and 3,0’’ set-up, which allows pilots to choose their favourite set-up.

SPECIFICATIONS

Weight
Weight Pair: 2090 g
Weight Front: 995 g
Weight Rear: 1095 g

Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Drilling: traditional (front/rear 28 holes)
Braking: disc
Profile: asymmetrical
ETRTO size: 622x30TC hooked
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape

Spokes
Material: steel
Shape: bent radius, flat, constricted (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 3 (front and rear)

Hubs
Body material: aluminium
Disc standard: 6 Bolts only
Axle material: aluminum
Axle size: front 20x110 / rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: -
Bearing technology: QRM automatic setting - sealed cartridge

Compatibility
Front axle adapters: 20x110 convertible to 15x110 (kit 12982801 sold separately)
Front axle adapters: convertible to 20x31mm with Torque Cap (kit V2650401 sold separately)
Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)

Delivered with
User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel

Intended use
Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
ASTM category 5: gravity riding focused on the descent
Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)
