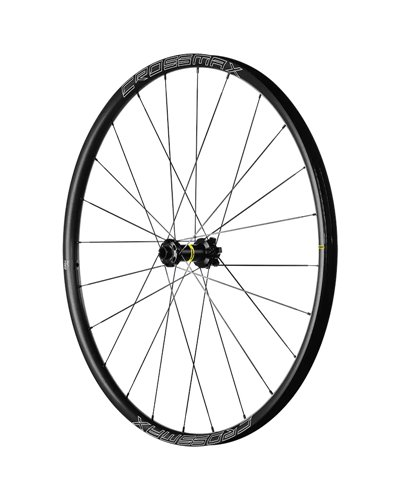

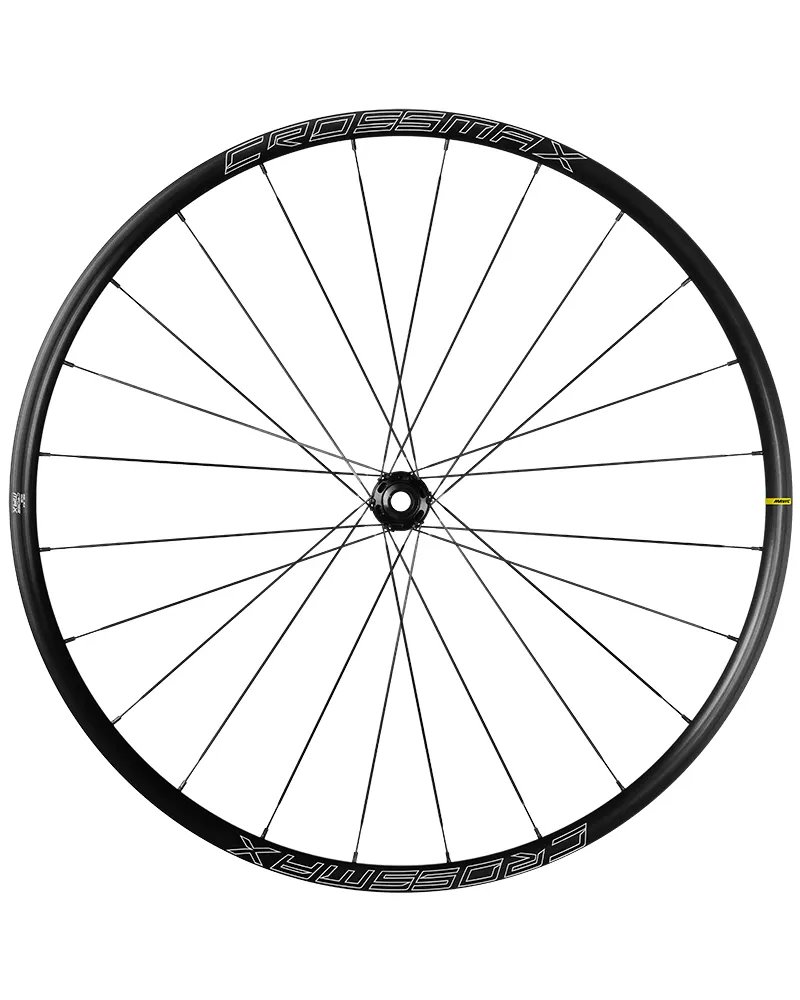

Mavic Crossmax 29" MTB 6-bolt Front Wheel

MAIN FEATURES

Light and durable
Welded rim construction for: a light and strong rim profile and a a perfectly sealed rim

Dynamic and agile
24 double butted spokes
Infinity hub platform
ID360 double ratchet freewheel​ system

Tubeless ready technology
A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability.

SPECIFICATIONS

Weight
Weight: 820 g

Rims
Material: Maxtal
Height: 21 mm
Joint: SUP welding technology
Internal width: 25 mm
Drilling: traditional (front/rear 24 holes)
Braking: disc
Profile: asymmetrical and hookless
ETRTO size: 622x25TSS
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape

Spokes
Material: steel
Shape: straight, extra-flat, constricted, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 2 (front and rear)

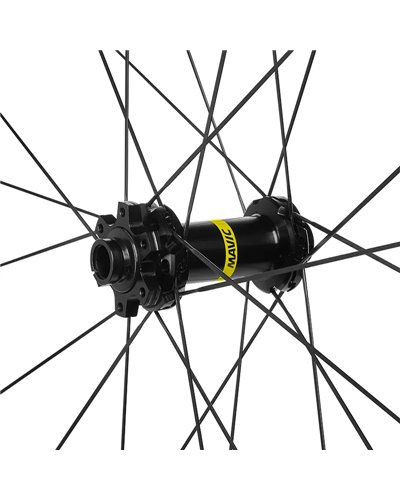

Hubs
Body material: aluminium
Body design: INFINITY
Disc standard: 6 Bolts
Axle material: aluminum
Axle size: front 15x110
Bearing technology: QRM automatic setting - sealed cartridge

Compatibility
Front axle adapters: 15x100 convertible to 9x100 (kit 99694101 sold separately)
Front axle adapters: 15x110 convertible to 9x110 (kits 99694101 + V2372501 sold separately)
Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)

Delivered with
User guide
Rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes with each wheel
Multifonction adjustment wrench with the rear wheel

Intended use
Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI
Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI
ASTM category 3: cross country
Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)
