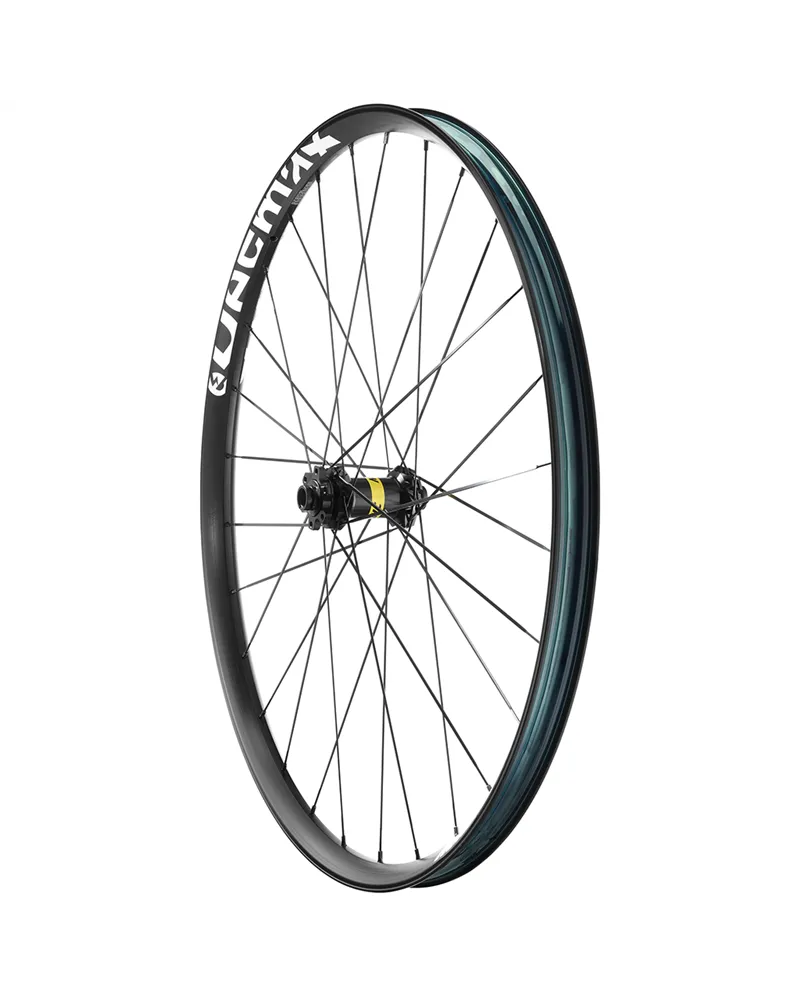

Mavic e-Deemax 30 27.5" Gen2 6-bolt MTB Front Wheel Boost

KEY BENEFITS

Strong and durable
Welded rim with Pinch Flat Protection (PFP) for less risk of flat
Super strong rim profile
New Infinity hub design specifically made for the rigor of E-MTB riding

Made to handle the extra power and torque of E-Bike motor
28 bladed reinforced spokes
Maximum load supported byt the wheel: 180kg
Steel freewheel body for improved resistance

Improved tubeless compatibility
Wider rim central channel to ease installation of reinforced tyres
Tubeless rim profile with tubeless tape makes it easy to ride tubeless tires for more traction and less risk of flat

The name E-Deemax has become a reference for E-Bike riders. This new E-Deemax lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price.

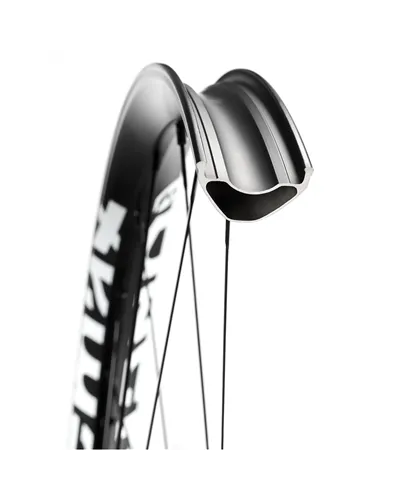

A brand new rim profile has been engineered for this new version. Now featuring a wider central channel, installing even the strongest and most rigid tyres has never been so easy.
Our exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tyre can resist to 20% harder impact before being cut.

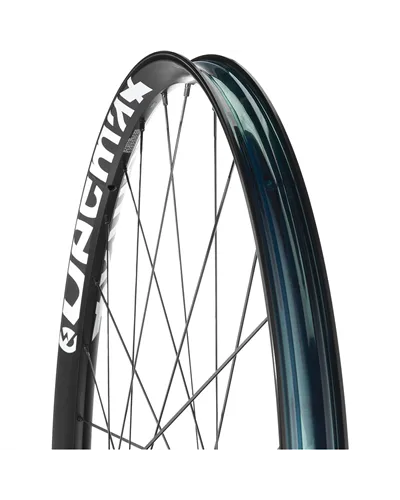

The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.

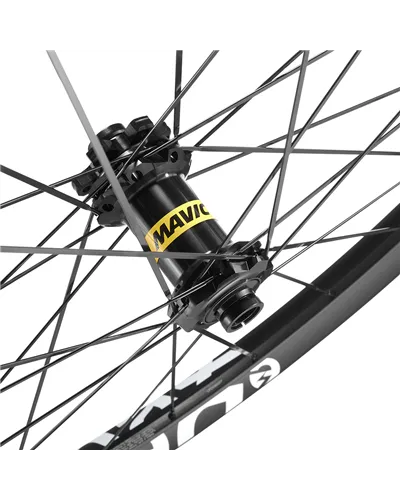

This new generation of E-Deemax is laced on our brand new heavy duty Infinity 28 hub. Infinity means that only 1 spoke length is requiered for both the front and rear wheel, left and right side, and replacing a spoke can be made without removing the disc or the cassette.
The reinforced spokes should protects against damages, but in any case, each wheel is delivered with 2 spare spokes.

SPECIFICATIONS

Weight
Weight: 1016 g

Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Braking: disc
Profile: asymmetrical
ETRTO size: 584x30TC hooked
Tire: Tubetype or UST Tubeless Ready with Mavic Tubeless Tape
Drilling: traditional (front/rear 28 holes)

Spokes
Material: steel
Shape: straight, flat, antirot (front and rear)
Nipples: steel, ABS, black
Lacing: crossed 3 (front and rear)

Hubs
Body material: aluminium
24 teeth ratchets / 15°
Body design: INFINITY
Disc standard: 6 Bolts
Axle material: aluminum
Axle size: 15x110
Bearing technology: QRM automatic setting - sealed cartridge

Delivered with
User guide
Tubeless rim tape mounted on wheel
UST valve not mounted on wheel
2 replacement spokes

Intended use
Minimum tyre size: width 47mm - pressure max. 3.6Bar/52PSI
Maximum tyre size: width 71mm - pressure max. 2.59Bar/37.5PSI
ASTM category 5: gravity riding focused on the descent
Maximum weight supported by the wheels: must not exceed 180 Kg (bike weight included)
