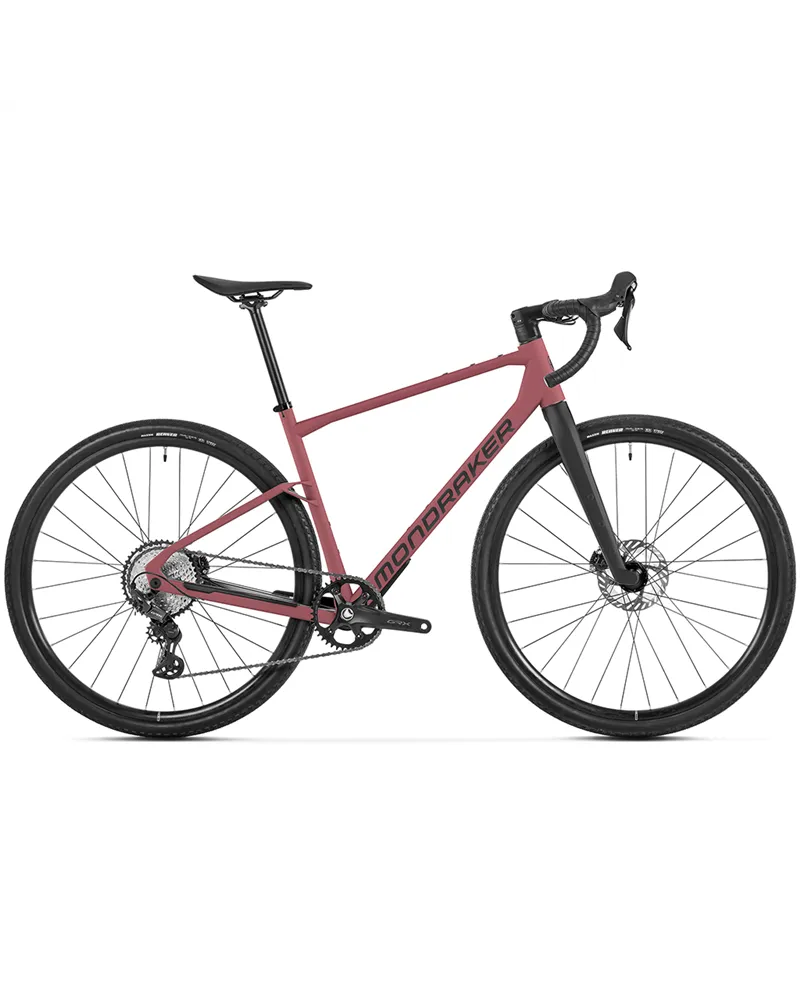

Mondraker Arid S 700 Shimano GRX 12sp, Rustbelt Red MY27
Mondraker Arid S 700 Shimano GRX 12sp, Rustbelt Red MY27
Mondraker Arid S 700 Shimano GRX 12sp, Rustbelt Red MY27
010.27085
€2,299.00
VAT included
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

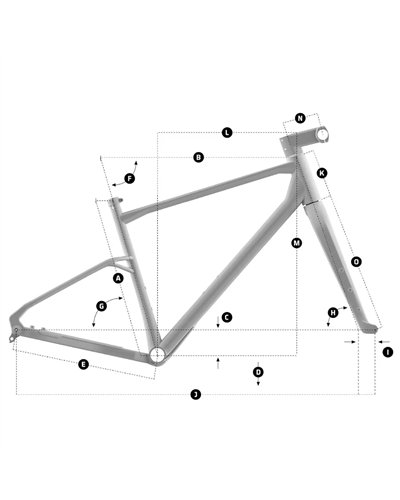

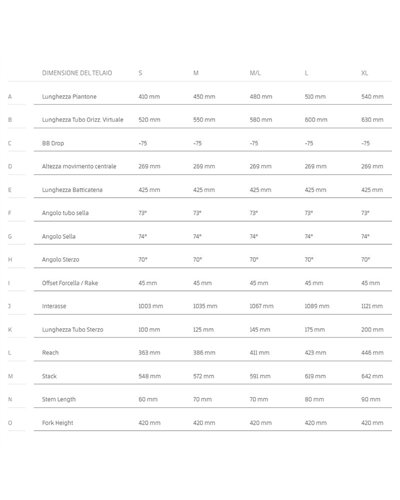

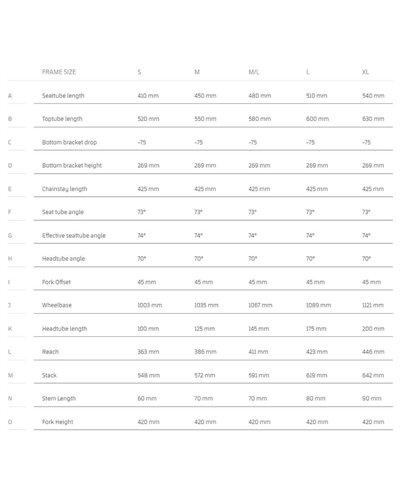

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Arid 6061 Alloy Stealth Evo, hydroformed tubing, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff S3, 31.8mm barbore, 6061 alloy, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Grips: Onoff HEX Bartape
Seatpost: Onoff S3 0-R, diameter 27,2mm, length 400mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Shimano GRX RX610, RX410 caliper, CL-700 ice tech 160mm centerlock rotor, resin pad
Rear brake: Shimano GRX RX610, RX410 caliper, CL-700 ice tech 160mm centerlock rotor, resin pad
Brake lever: Shimano GRX RX610, tooled reach adjust, aluminium lever.
Rims: Mavic Allroad Disc, 25mm internal width, hookless, 28 spokers
Spokes: Mavic Steel J Bent spokes
Front hub: Mavic, 12x100mm, Centerlock
Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, Centerlock, MS Freehub
Front tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Crankset: Shimano GRX RX610, S size: 165mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings: Shimano 40T, direct mount, steel
Bottom bracket: Token T47 BSA sealed bearings, 85,5mm
Chain: Shimano SLX CN-M7100, Quick-Link
Rear derrailleur: Shimano GRX RX822-SGS, 12s
Shift levers: Shimano GRX RX610 dual control, alloy lever
Casette: Shimano SLX CS-M7100, Hyperglide+, 10-51, 12s
Derailleur hanger: Sram UDH
010.27085
Data sheet
- Diameter
- 700
- Gender
- Men
Women - Material
- Aluminium
- Code
- MDK27-AGG210726
- Shifting
- Mechanical
- Brakes
- Hydraulic disc
- Groupset
- Shimano GRX
- Suspension
- Rigid
- Type
- Gravel
No customer reviews for the moment.
Related Products ( 16 other products in the same category )
- -10%
- Out-of-Stock
- -20%
- Out-of-Stock
- -36.32%
- -10%
- -29.3%
- Out-of-Stock
- -15%
- -10%
- -10%
- Out-of-Stock
- -20%
- -20%
- Out-of-Stock
Who it is for and how to use it
Ideal for
For those looking for a rigid, precise gravel bike
Designed for those who want a gravel bike with an Arid Alloy frame, carbon fork and rigid setup. The structure prioritises direct response on compact off-road terrain and tarmac.
For those who want a 1x drivetrain for gravel
Suitable for those who prefer a Shimano GRX drivetrain with a 1X setup and dedicated gravel use. The configuration reduces complexity and remains well suited to mixed rides.
For those looking for a light gravel bike
Suitable for those who want to keep weight down without giving up hydraulic disc brakes and Mavic Allroad Disc wheels. The 10,9 kg weight makes it suitable for dynamic rides.
Use cases
Ideal
Fast gravel rides on mixed surfaces
Performs well on mixed stretches thanks to the Arid Alloy frame, carbon fork and Mavic Allroad Disc wheels. The geometry remains focused on precise handling.
Lega Arid · Forcella in carbonio · Ruote Mavic Allroad Disc
Very suitable
Long rides at a steady pace
Suitable for longer gravel rides with a rigid setup and hydraulic disc brakes. The combination of Shimano GRX and UST rims helps maintain control and consistency.
Shimano GRX · Freni a disco idraulico · Cerchi UST
Suitable
Technical routes on compact gravel
Performs well on compact gravel thanks to the Maxxis Reaver 700x45 tubeless ready tyres and the rigid frame structure. The response is direct when changing line.
Maxxis Reaver 700x45 · Tubeless ready · Sterrato
Suitable
Sport riding with braking control
The Shimano GRX RX-610 brakes with CL-800 Ice Tech 160 mm rotors help with braking control. It is a consistent solution for those seeking technical feel on gravel.
Shimano GRX RX-610 · CL-800 Ice Tech 160 mm · Freni a disco idraulico
Who it is for
Experienced gravel rider
- Looks for
- A responsive bike, with Shimano GRX drivetrain and 1X setup.
- Why
- The Arid Alloy structure, carbon fork and Mavic Allroad Disc wheels deliver a technical, precise ride feel.
Sportive rider alternating tarmac and gravel
- Looks for
- A light gravel bike with a stiff setup and hydraulic disc brakes.
- Why
- The 10,9 kg weight and the Maxxis Reaver 700x45 configuration make the bike suitable for mixed, dynamic use.
Frequently asked questions
What groupset does this bike use?
It uses Shimano GRX, with a Shimano GRX RX-822-GS rear derailleur and 12 speeds. It is a configuration designed for gravel use.
What type of brakes does it use?
It uses Shimano GRX RX-610 hydraulic disc brakes with CL-800 Ice Tech 160 mm rotors. This means technical, controlled braking for gravel use.
What wheels are fitted?
Mavic Allroad Disc, UST wheels are fitted, with 25 mm internal width and hookless construction. The structure is designed for gravel use with tubeless ready tyres.
What is the bike's weight?
The weight without pedals is 10,9 kg. This is consistent with a gravel bike focused on responsiveness.
What frame sizes are available?
The frame sizes are S: 410 mm, M: 450 mm, ML: 480 mm, L: 510 mm and XL: 540 mm. Size selection should be made based on the geometry shown in the spec sheet.
