Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Atmos MY27
Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Atmos MY27
Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Atmos MY27
010.27115AT
€5,399.00
VAT included
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

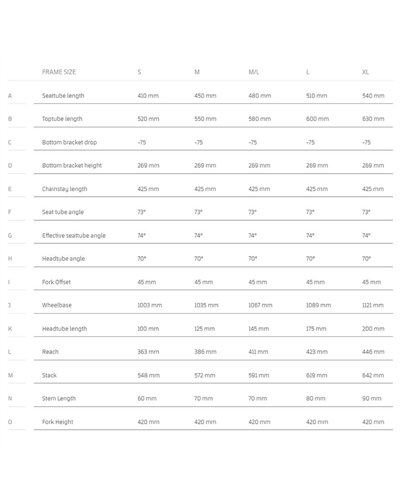

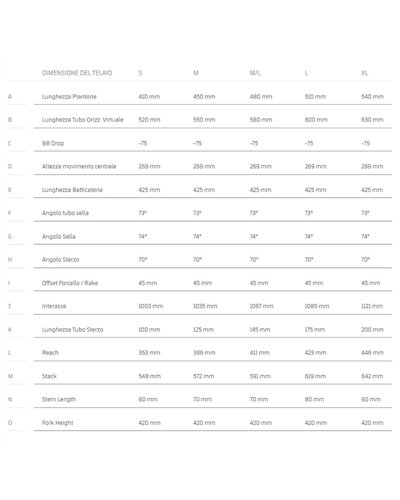

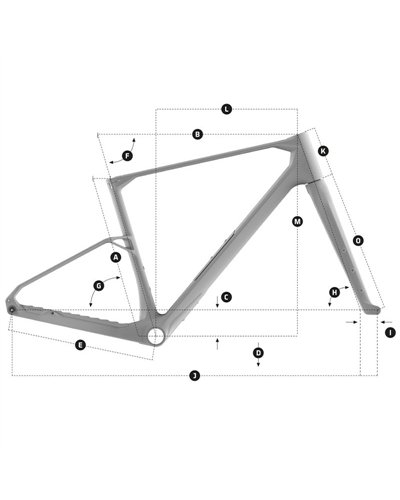

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Grips: Fizik Terra Solocush Tacky Bartape
Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake: Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake lever: Shimano GRX RX825, contact point adjustment, tooled reach adjust, aluminium lever.
Rims: Fulcrum Sharq GR, Carbon 2-Wave Rim, 47-52mm height, 30mm internal width, Hooked Rim
Spokes: Fulcrum A3RO 3mm
Front hub: Fulcrum, 12x100mm, Steel Cup & Cone Bearings, Centerlock
Rear hub: Fulcrum, 12x142mm, Steel Cup & Cone Bearings, Centerlock, MS Freehub
Front tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Crankset: Shimano GRX RX820, S size: 170mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings: Shimano 40T, alloy
Bottom bracket: Token T47 BSA sealed bearings, 85,5mm
Chain: Shimano XT CN-M8100, 12s, Quick-Link
Rear derrailleur: Shimano GRX RX827 DI2, 12s
Shift levers: Shimano GRX RX825 DI2 dual lever
Casette: Shimano XT CS-M8200 ,10-51T, Hyperglide+, 12s
Derailleur hanger: Sram UDH
010.27115AT
Data sheet
- Diameter
- 700
- Gender
- Men
Women - Material
- Carbon
- Code
- MDK27-AGG210726
- Shifting
- Electronic
- Brakes
- Hydraulic disc
- Groupset
- Shimano GRX
- Suspension
- Rigid
- Type
- Gravel
No customer reviews for the moment.
Related Products ( 16 other products in the same category )
- -25.09%
- -10%
- -20%
- Out-of-Stock
- -33.16%
- Out-of-Stock
- -10%
- -20%
- Out-of-Stock
- -10%
- -20%
- -10%
- -10%
- Out-of-Stock
- -15%
Who it is for and how to use it
Ideal for
Technical gravel with electronic shifting
Designed for riders looking for a gravel bike with Shimano GRX Di2 12v, a carbon frame and a stiff setup. Handling remains precise on fast rides and mixed surfaces.
Those wanting a carbon frame for gravel
Suitable for riders focused on an Arid Stealth Air Carbon frame and a light structure for long rides. The platform is built for gravel riding.
Riders looking for a bike ready for sport use
Suitable for those wanting Shimano GRX brakes, Fulcrum Sharq GR wheels and a coherent set-up for sporty gravel riding. The configuration favours control and consistent pedalling.
Use cases
Ideal
Gravel rides on hard-packed dirt
The stiff base and Shimano GRX Di2 12v groupset help maintain pace and riding precision. This is a set-up designed for fast gravel riding.
Gravel · Gruppo elettronico · Telaio in carbonio · Freni a disco
Very suitable
Mixed routes with asphalt and dirt sections
Fulcrum Sharq GR wheels and Shimano GRX brakes support smooth riding across changing surfaces. The bike remains oriented towards sporty riding.
Ruote Fulcrum · Shimano GRX · Freni a disco · Uso misto
Suitable
Long training rides on gravel
The carbon frame and Shimano GRX Di2 12v drivetrain support an efficient setup on longer rides. The geometry remains focused on control.
Allenamento · Carbonio · Di2 · Gravel
Who it is for
Experienced gravel rider
- Looks for
- Cerca una bici in carbonio con trasmissione elettronica e componenti specifici per il gravel.
- Why
- This build combines Shimano GRX Di2 12v, an Arid Stealth Air Carbon frame and Shimano GRX brakes in a technical, coherent package.
Frequently asked questions
What groupset does this bike use?
It is equipped with Shimano GRX Di2 12v. This is an electronic groupset designed for precise shifting on gravel.
What is the frame made from?
The frame is made from Arid Stealth Air Carbon. The structure is carbon, so it is designed to keep overall weight down.
What brakes does it use?
It is equipped with Shimano GRX. The specification listed is hydraulic disc brakes.
What type of use is it intended for?
It is designed for gravel. The geometry and components are set up for rides on mixed and unpaved surfaces.
What frame sizes are available?
The frame sizes are S: 410 mm, M: 450 mm, ML: 480 mm, L: 510 mm and XL: 540 mm.
Show all (6)
What wheels does it use?
It is fitted with Fulcrum Sharq GR wheels. These are wheels designed for technical gravel use.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
