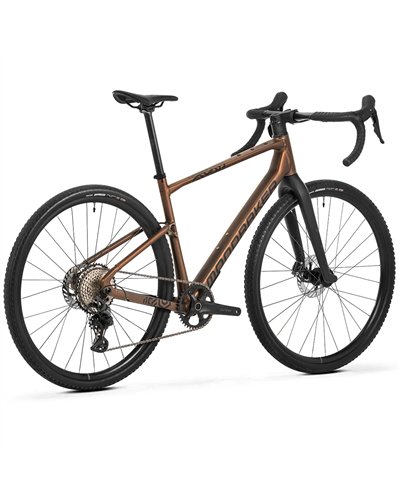

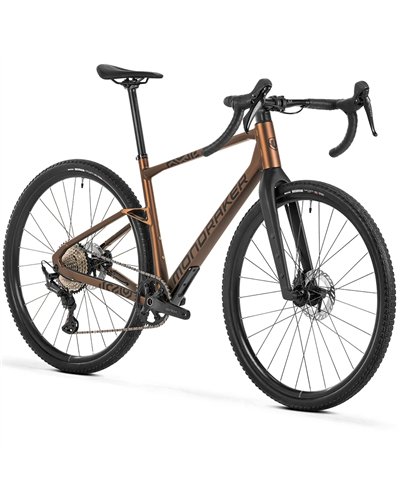

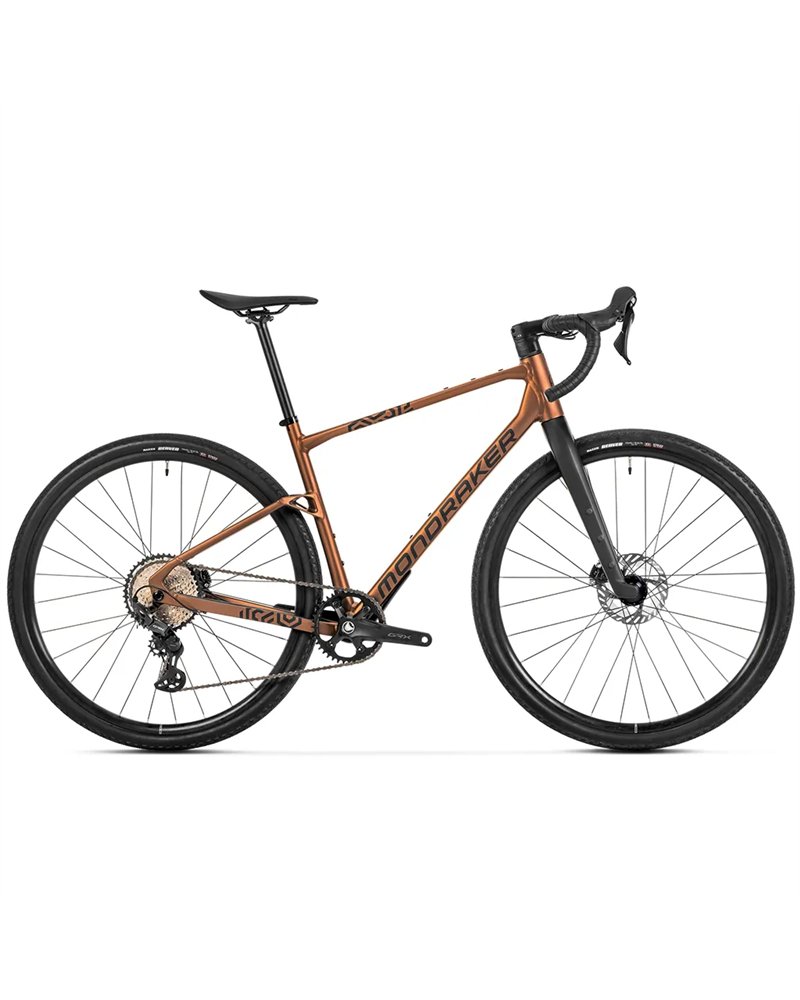

Mondraker Arid S 700 Shimano GRX 12sp, Bronze MY26
Mondraker Arid S 700 Shimano GRX 12sp, Bronze MY26
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

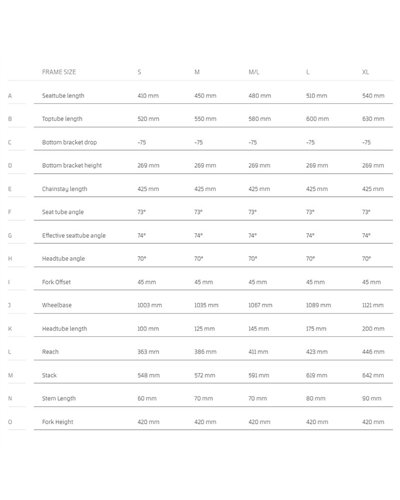

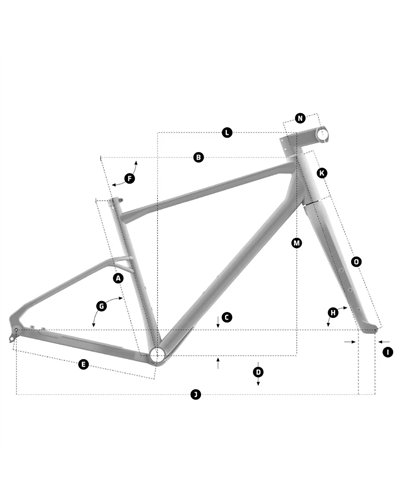

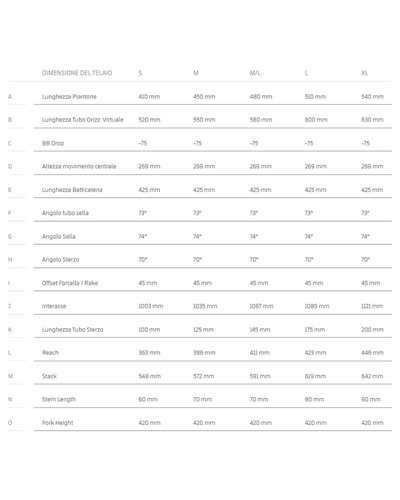

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Grips: OnOff HEX Bartape
Seatpost: Onoff S3 0-R, diameter 27.2mm, length 400mm
Saddle: FIZIK Terra Argo X5 140mm
Front brake: SRAM Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Rear brake: Sram Apex AXS, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes: Mavic Steel double butted flat spokes
Front hub: Mavic, 12x100mm, IS 6 bolts
Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset: SRAM Apex 1 Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain: Sram Apex, 12s, Powerlock
Rear derrailleur: Sram Apex XPLR AXS D1 12s,
Shift levers: Sram Apex AXS D1 12s,
Casette: Sram PG-1231 11-44, 12s
Derailleur hanger: Sram UDH
Weight: 10,6 kg
Data sheet
No customer reviews for the moment.
For those looking for a rigid, precise gravel bike
Designed for those who want a gravel bike with an Arid Alloy frame, carbon fork and rigid setup. The structure prioritises direct response on compact off-road terrain and tarmac.
For those who want a 1x drivetrain for gravel
Suitable for those who prefer a Shimano GRX drivetrain with a 1X setup and dedicated gravel use. The configuration reduces complexity and remains well suited to mixed rides.
For those looking for a light gravel bike
Suitable for those who want to keep weight down without giving up hydraulic disc brakes and Mavic Allroad Disc wheels. The 10,9 kg weight makes it suitable for dynamic rides.
Ideal
Fast gravel rides on mixed surfaces
Performs well on mixed stretches thanks to the Arid Alloy frame, carbon fork and Mavic Allroad Disc wheels. The geometry remains focused on precise handling.
Lega Arid · Forcella in carbonio · Ruote Mavic Allroad Disc
Very suitable
Long rides at a steady pace
Suitable for longer gravel rides with a rigid setup and hydraulic disc brakes. The combination of Shimano GRX and UST rims helps maintain control and consistency.
Shimano GRX · Freni a disco idraulico · Cerchi UST
Suitable
Technical routes on compact gravel
Performs well on compact gravel thanks to the Maxxis Reaver 700x45 tubeless ready tyres and the rigid frame structure. The response is direct when changing line.
Maxxis Reaver 700x45 · Tubeless ready · Sterrato
Suitable
Sport riding with braking control
The Shimano GRX RX-610 brakes with CL-800 Ice Tech 160 mm rotors help with braking control. It is a consistent solution for those seeking technical feel on gravel.
Shimano GRX RX-610 · CL-800 Ice Tech 160 mm · Freni a disco idraulico
Experienced gravel rider
Sportive rider alternating tarmac and gravel
It uses Shimano GRX, with a Shimano GRX RX-822-GS rear derailleur and 12 speeds. It is a configuration designed for gravel use.
It uses Shimano GRX RX-610 hydraulic disc brakes with CL-800 Ice Tech 160 mm rotors. This means technical, controlled braking for gravel use.
Mavic Allroad Disc, UST wheels are fitted, with 25 mm internal width and hookless construction. The structure is designed for gravel use with tubeless ready tyres.
The weight without pedals is 10,9 kg. This is consistent with a gravel bike focused on responsiveness.
The frame sizes are S: 410 mm, M: 450 mm, ML: 480 mm, L: 510 mm and XL: 540 mm. Size selection should be made based on the geometry shown in the spec sheet.
