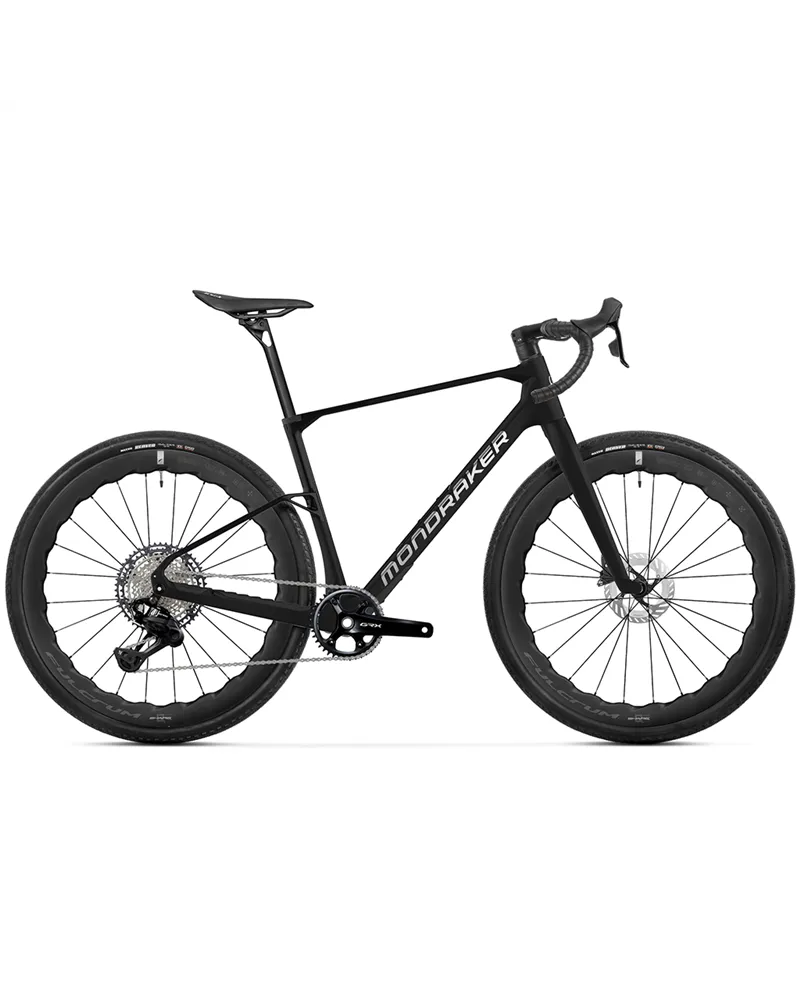

Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Superblack MY27

Mondraker Arid Carbon RS 700 Shimano GRX Di2 12sp, Superblack MY27

Reference 010.27115BK

€5,399.00

VAT included

Pagamento a rate con

Calcola la rata

Frame Size: M (Contact Us)

S (Contact Us)
M (Contact Us)
M/L (Contact Us)
L (Contact Us)
XL (Contact Us)

Quantity

Add to Wishlist

Add to Compare

Availability: Check sizes

FREE SHIPPING IN ITALY FROM 129,99 EUROS*

100% SECURE CHECKOUT

N.1 in Italy in the Bike and E-Bike Shops

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

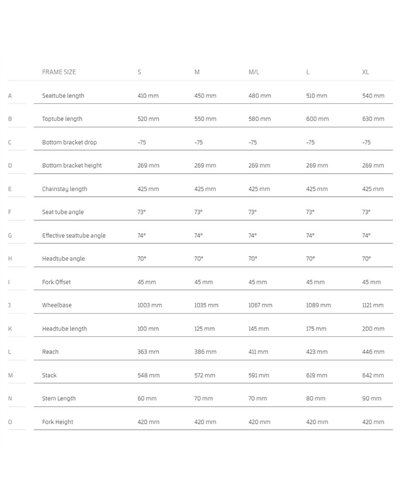

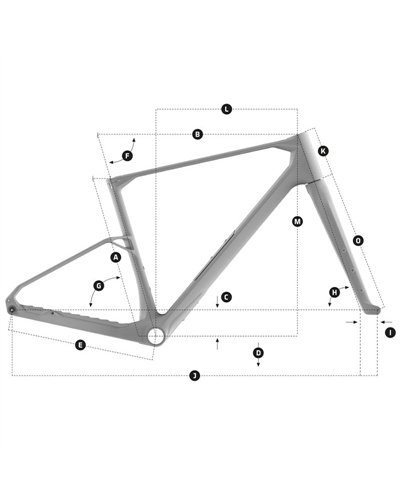

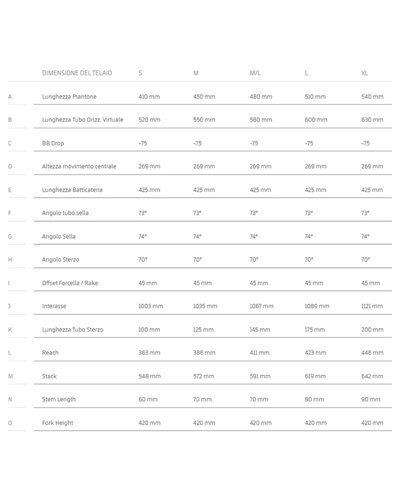

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes: S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
Grips: Fizik Terra Solocush Tacky Bartape
Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Rear brake: Shimano GRX RX825, RX820 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake lever: Shimano GRX RX825, contact point adjustment, tooled reach adjust, aluminium lever.
Rims: Fulcrum Sharq GR, Carbon 2-Wave Rim, 47-52mm height, 30mm internal width, Hooked Rim
Spokes: Fulcrum A3RO 3mm
Front hub: Fulcrum, 12x100mm, Steel Cup & Cone Bearings, Centerlock
Rear hub: Fulcrum, 12x142mm, Steel Cup & Cone Bearings, Centerlock, MS Freehub
Front tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead
Crankset: Shimano GRX RX820, S size: 170mm M size: 170mm ML size: 170mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings: Shimano 40T, alloy
Bottom bracket: Token T47 BSA sealed bearings, 85,5mm
Chain: Shimano XT CN-M8100, 12s, Quick-Link
Rear derrailleur: Shimano GRX RX827 DI2, 12s
Shift levers: Shimano GRX RX825 DI2 dual lever
Casette: Shimano XT CS-M8200 ,10-51T, Hyperglide+, 12s
Derailleur hanger: Sram UDH
