Mondraker Summum RR Mullet 27.5/29 Sram Eagle AXS 7sp, Silver Flash MY26
Mondraker Summum RR Mullet 27.5/29 Sram Eagle AXS 7sp, Silver Flash MY26
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

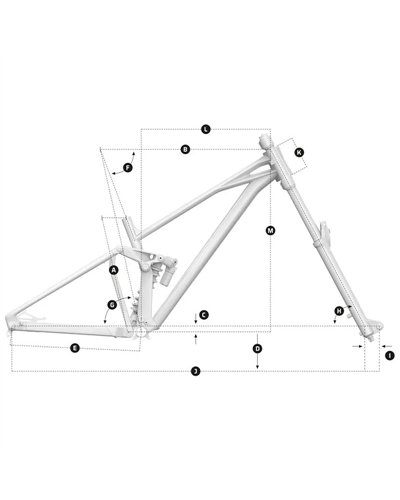

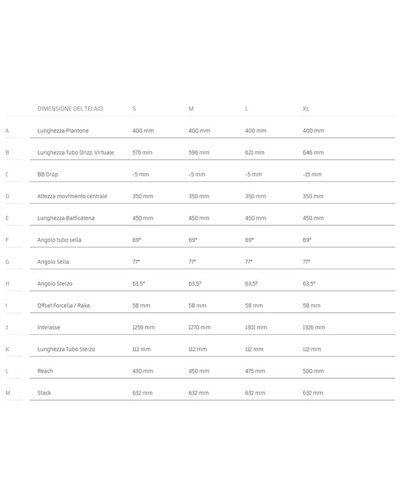

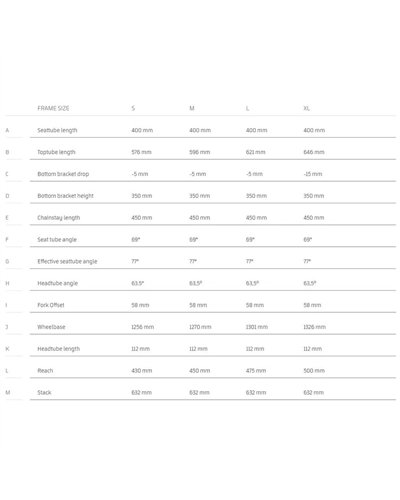

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.
Sizes: M / L / XL
Rear shock: Rock Shox Vivid Coil Ultimate, 225x75mm, Linear rebound, Medium compression, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
Fork: Rockshox Boxxer Ultimate 29,Charger 3.2 RC2, 200mm, DebonAir+, 1-1/8” steerer tube, Boost 20x110mm axle, offset 52mm. Settings: low-speed compression, rebound, air preload
Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)
Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm
Saddle: Ergon SM10 DH Black
Front brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Ultimate , SwingLink and lever pivot bearings, tools-free reach adjust
Rims: DT Swiss EX1700 Classic 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes front, 32 spokes rear
Spokes: DT Competition, straightpull
Front hub: DT 350, Boost 20x110mm, IS 6 bolts
Rear hub: DT 350 Classic with 72T Ratchet DEG System, Boost 12x157mm, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead
Rear tire: Maxxis Minion DHR II 27'5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead
Crankset: Sram XX DH T-Type, DUB axle, Direct mount chain ring, 160mm CL 56´5
Rings: 36T, Aluminium T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 83mm
Chain: Sram X0 Eagle T-Type, Powerlock
Derailleur hanger: E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Front derrailleur: Sram XX DH AXS, T-type, 7s
Rear derrailleur: Sram Eagle AXS Pod
Shift levers: Sram XS 797 10-24T, 7s
Derailleur hanger: *Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout
Weight: 18,9 kg
Data sheet
No customer reviews for the moment.
Downhill riding on demanding trails
Designed for those seeking a downhill mountain bike with an aluminium frame, 200 mm travel suspension and a Mullet 27.5/29 geometry. The 18.9 kg weight places it in a build focused on downhill control.
Those wanting a DH bike with electronic transmission
Suitable for riders focused on a Sram XX DH AXS, T-type, 7s groupset and Sram Maven Ultimate brakes. The configuration prioritises shifting precision and braking management in downhill use.
Those looking for a DH platform ready for aggressive wheels and setup
Recommended for riders who want a downhill bike with DT Swiss EX1700 Classic 29 wheels and M / L / XL sizes. The component mix is consistent with technical and intense riding.
Ideal
Downhill racing and training
The setup is centred on downhill use, with 200 mm travel suspension and Sram Maven Ultimate brakes. It is suitable when continuous control on descents is required.
Downhill · 200 mm travel · Hydraulic disc brakes
Very suitable
Technical trails with heavy stress
The Summum MX 6061 Alloy Stealth Evo frame and DT Swiss EX1700 Classic 29 wheels support aggressive riding on demanding trails. The frame is designed to absorb and handle hard use.
Aluminium frame · DT Swiss wheels · Technical use
Suitable
DH setup with electronic shifting
The Sram XX DH AXS, T-type, 7s groupset provides electronic transmission control in a downhill context. It is a coherent choice for those seeking precise operation.
Electronic shifting · Sram XX DH AXS · 7-speed
Suitable
Mullet 27.5/29 setup
The Mullet 27.5/29 combination suits riders who want a downhill bike with a specific focus on front-end control and rear-end manoeuvrability. The geometry is part of the bike's setup.
Mullet 27.5/29 · Downhill · Geometry
Experienced downhill rider
It is a downhill mountain bike, so it is designed for descents and technical trails. The overall setup is consistent with this use.
The frame is made from Summum MX 6061 Alloy Stealth Evo, so it is Aluminium. It is a structure specifically for downhill use.
It uses a Sram XX DH AXS, T-type, 7s. It is an electronic transmission with a specific downhill setup.
It uses Sram Maven Ultimate brakes. The specification lists a hydraulic disc brake system with components dedicated to downhill riding.
It uses DT Swiss EX1700 Classic 29. The wheel configuration is designed for technical downhill use.
The weight is 18.9 kg without pedals. This is a useful figure for assessing the bike's overall setup.
The frame sizes available are M / L / XL. The choice should be made according to the frame geometry chart.
