Mondraker Raze Carbon RR 29 Sram X01 Eagle12s, Deep Purple MY23
Mondraker Raze Carbon RR 29 Sram X01 Eagle12s, Deep Purple MY23
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

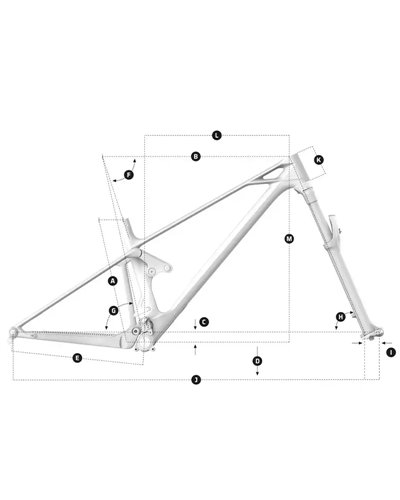

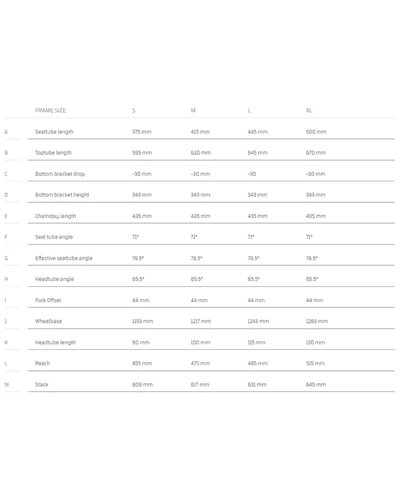

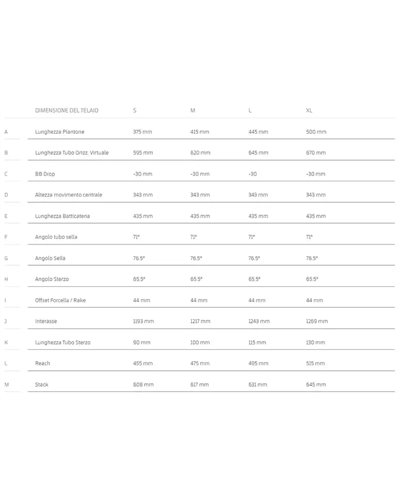

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock: Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem: ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar: ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: ONOFF Desert, 1lock-on, 135mm
Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm
Saddle: Fizik Antares R7
Front brake: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram G2 RS, SwingLink, tool-free reach adjust
Rims: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes: 24 straight-pull double butted spokes
Front hub: Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub: Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram GX Eagle, 12s, Powerlock
Rear derrailleur: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Casette: Sram XG-1275, 10-52T, 12s
Derailleur hanger: Sram UDH
Weight: 13,1 kg
Data sheet
