Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

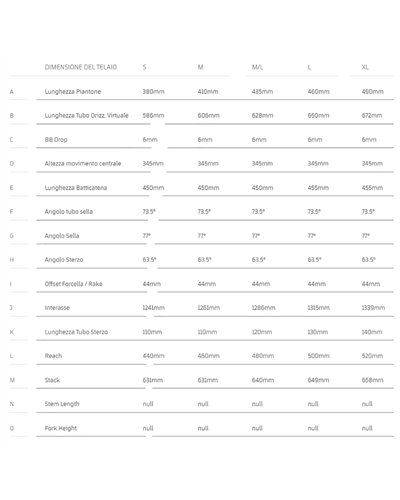

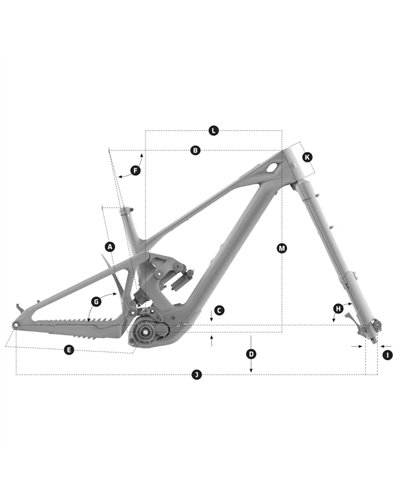

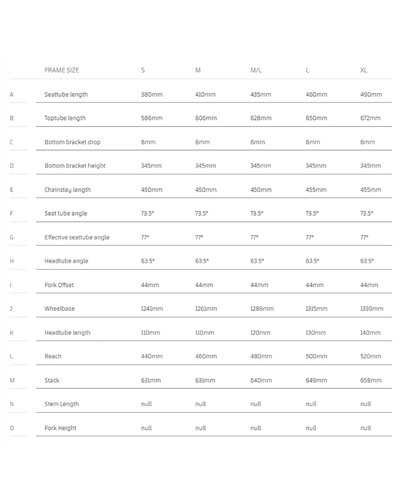

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings: CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.
Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
Seatpost: RockShox Reverb AXS, diameter 31.6mm, w/AXS Pod Controller Rocker Paddle. S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm.
Saddle: Ergon SM10 E-Mountain Black.
Front brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Ultimate, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Ultimate , Carbon lever, SwingLink and lever pivot bearings, tools-free reach adjust
Rims: DT Swiss Hybrid HXC 1500 Spline, Carbon, 30mm internal width, tubeless ready, 28 spokes.
Spokes: DT Swiss Straightpull spokes, DT Hybrid II, black
Front hub: DT Swiss 350, 20x110mm Boost, Disc IS (6-bolt).
Rear hub: DT Swiss 350 Classic with 72T Ratchet DEG System, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear tire: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset: e*thirteen Helix Race Carbon e*spec. All sizes: 155mm
Rings: Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derrailleur: Sram X0 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
Casette: Sram XS 1275, 10-52T, T-Type, 12s
Others: Sram AXS Extension Cord / Avinox 12A Charger
Weight: 23.1 Kg
Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor: Avinox M2S
Battery: Avinox 800Wh Battery

Reference 010.27216

Data sheet

Diameter: 29"
Gender: Men
Women
Material: Carbon
Code: MDK27-AGG100426
Shifting: Electronic
Brakes: Hydraulic disc
Groupset: SRAM X0
Motor: Avinox
Suspension: Full suspension
Type: MTB
Battery capacity: 800 Wh

No customer reviews for the moment.

Mondraker Zendit RR S...

Full

€10,499.00

Mondraker Zendit RR S Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike Size M, Hunter Green MY27

-19.42%

Merida eOne-Sixty 6000 Low...

Full

€7,490.00 -19.42% €6,035.34

The Merida eOne-Sixty 6000 Low Key Green (Black) MY24 is a Merida e-bike full suspension mountain bike built on the eONE-SIXTY CF4 III frame with...

-32%
Out-of-Stock

Santa Cruz Heckler SL 1.1...

MTB

€8,499.00 -32% €5,779.32

Santa Cruz Heckler SL 1.1 Mullet 27.5/29 Sram 90 Eagle 12sp e-MTB, Gloss Mustard Yellow

-15%
Out-of-Stock

Cube Stereo Hybrid One44...

MTB

€5,099.00 -15% €4,334.15

Trails, your way.

-20.8%

Whistle e-MTB B-Rush C8.4 Shimano XT 12sp Bosch CX 750Wh, Black/Red

Atala Whistle e-MTB B-Rush...

MTB

€5,640.00 -20.8% €4,466.88

Atala Whistle e-MTB B-Rush C8.4 Shimano XT 12sp Bosch CX 750Wh, Black/Red

-22.29%

Whistle e-MTB B-Rush A5.2X LT 12sp Bosch CX 625Wh Size 40, Black Matt/Orange

Atala Whistle e-MTB B-Rush...

MTB

€3,199.00 -22.29% €2,485.94

Atala Whistle e-MTB B-Rush A5.2X LT 12sp Bosch CX 500Wh, Black Matt/Orange

-24.17%

Merida eOne-Eighty 500...

Full

€5,790.00 -24.17% €4,390.83

The Merida eOne-Eighty 500 River Clay (Black) MY26 is a Merida e-bike full suspension mountain bike built on the eONE-EIGHTY LITE frame with 29"...

Mondraker Zendit XR Mullet...

Full

€12,499.00

Mondraker Zendit XR Mullet 27.5/29 Sram X0 Eagle AXS 12sp Avinox M2S - 800Wh e-Bike, Vortex Grey MY27

-10%
Out-of-Stock

Atala Whistle e-MTB AXR...

MTB

€5,999.00 -10% €5,399.10

Atala Whistle e-MTB AXR C8.6 Shimano Deore XT Di2 12sp Avinox 800Wh, Anthracite/Titanium

-10%
Out-of-Stock

Santa Cruz Vala 1 CC Mullet...

MTB

€12,999.00 -10% €11,699.10

Santa Cruz Vala 1 CC Mullet 27.5/29 Sram XX Eagle AXS 12sp Reserve e-MTB, Gloss Midnight Green

-20%

Whistle e-MTB B-Rush A7.1E Sram SX Eagle12sp Bosch CX 625Wh Size 44, Dark Blue Matt/Chrome

Atala Whistle e-MTB B-Rush...

MTB

€3,799.00 -20% €3,039.20

Atala Whistle e-MTB B-Rush A7.1E Sram SX Eagle12sp Bosch CX 625Wh, Dark Blue Matt/Chrome

-19.41%

Merida eOne-Sixty 575 Earth...

Full

€5,690.00 -19.41% €4,585.62

The Merida eOne-Sixty 575 Earth Powder (Black) MY25 is a Merida e-bike full suspension mountain bike built on the eONE-SIXTY LITE IV frame with 29"...

-15%
Out-of-Stock

Atala Whistle e-MTB B-Rush...

MTB

€4,999.00 -15% €4,249.15

Atala Whistle e-MTB B-Rush A8.5 Shimano XT 12sp Bosch CX 800Wh, Chrome/Red

-20.8%

Whistle e-MTB B-Rush C4.4 Shimano Deore 12sp Bosch CX 625Wh, Black/Black

Atala Whistle e-MTB B-Rush...

MTB

€4,529.00 -20.8% €3,586.97

Atala Whistle e-MTB B-Rush C4.4 Shimano Deore 12sp Bosch CX 625Wh, Black/Black

-20%
Out-of-Stock

Focus Jam² 6.7 Shimano Cues...

MTB

€4,699.00 -20% €3,759.13

Focus Jam² 6.7 Shimano Cues 10sp - Bosch Performance CX 600Wh, Slate Grey/Magic Black

-31.25%

Atala Whistle e-MTB S-Rush...

MTB

€4,470.00 -31.25% €3,073.13

Atala Whistle e-MTB S-Rush C8.4 Shimano XT 12sp EP800 720Wh, Black Matt/Blue Anthracite Glossy

Who it is for and how to use it

Ideal for

Male MTB rider looking for a carbon e-bike

Designed for MTB use and MTB discipline, with a carbon frame and full suspension setup. Suitable for riders who want a stiff platform and a technical off-road setup.

Those who want Avinox M2S motor and 800 Wh battery

Suitable for riders looking for electric assistance with an Avinox M2S motor and range support from an 800 Wh battery. The spec also lists an Avinox DP100 display and Avinox BC100 Wireless Controller (L&R).

Those looking for an MTB with SRAM X0 electronic transmission

Designed for riders who want SRAM X0 transmission with electronic shifting and hydraulic disc brakes. The combination suits technical trail riding and demanding descents.

Use cases

Ideal

Technical trails and singletrack

Full suspension and the MTB setup make it suitable for demanding trails and technical sections. The Zendit Stealth Air full Carbon frame helps keep overall weight down.

Full suspension · Carbon frame · Technical MTB

Very suitable

Long rides with electric support

The Avinox M2S motor and 800 Wh battery are designed for long rides on mixed terrain. The 23.1 kg weight helps define the bike's overall character.

Avinox M2S motor · 800 Wh · 23.1 kg weight

Very suitable

Descents with powerful braking

The Sram Maven Ultimate 4-piston brakes with 220 mm HS2 rotors at the front and 200 mm at the rear are intended for strong braking performance off-road.

Hydraulic disc brakes · 4 pistons · HS2 rotors

Suitable

Use on 29" wheels

The spec lists 29" wheels and a Maxxis Assegai 29x2.5WT front tyre. This is a setup that suits riders prioritising rolling efficiency and off-road control.

29" wheels · Maxxis Assegai · Tubeless ready

Who it is for

Experienced rider focused on enduro and technical riding

Looks for: A carbon e-bike with full suspension, electronic transmission and powerful braking system.
Why: The spec combines a Zendit Stealth Air full Carbon frame, Avinox M2S, SRAM X0 Eagle AXS T-Type and Sram Maven Ultimate brakes.

Frequently asked questions

Which motor is fitted to this e-bike?

It is fitted with an Avinox M2S. It is paired with an Avinox DP100 display and Avinox BC100 Wireless Controller (L&R).

What battery capacity does it have?

The battery is an Avinox 800 Wh Battery, equal to 800 Wh.

What type of drivetrain is fitted?

The drivetrain is SRAM X0, with a Sram X0 Eagle AXS T-Type rear derailleur, 12s.

Which brakes are fitted?

The bike is fitted with Sram Maven Ultimate hydraulic disc brakes, with 4 pistons and HS2 rotors, 220 mm at the front and 200 mm at the rear.

What kind of suspension does it have?

The spec lists Full suspension and an Updated Zero Suspension System with 165 mm travel.

Show all (6)

Which frame sizes are available?

The frame sizes are S: 380 mm, M: 410 mm, ML: 435 mm, L: 460 mm and XL: 490 mm.

Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
