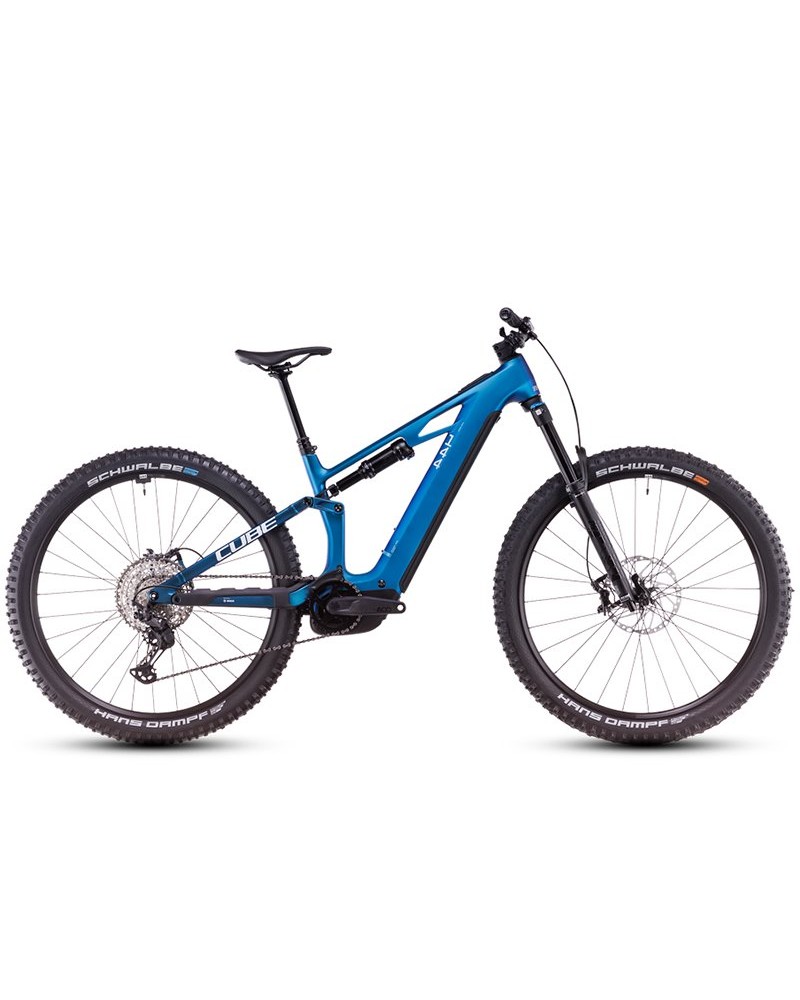

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly. We advise you to refer to the technical sheet below. For any questions please contact us.

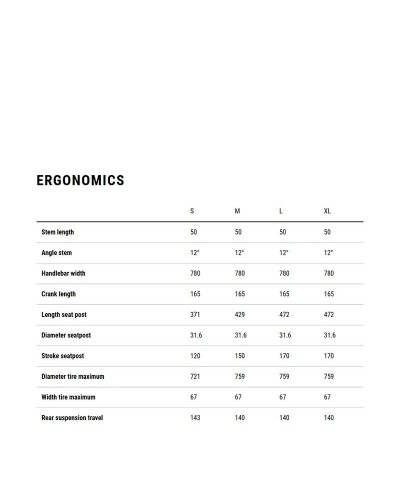

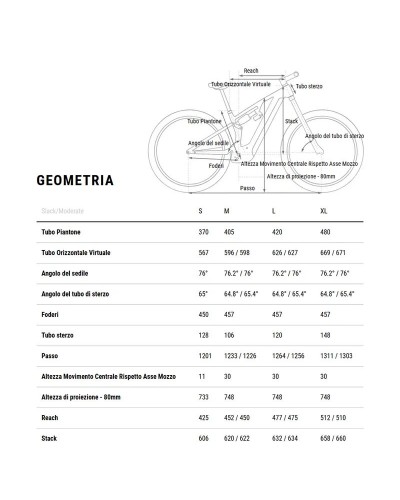

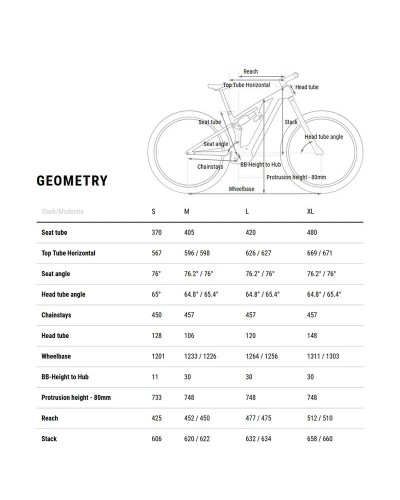

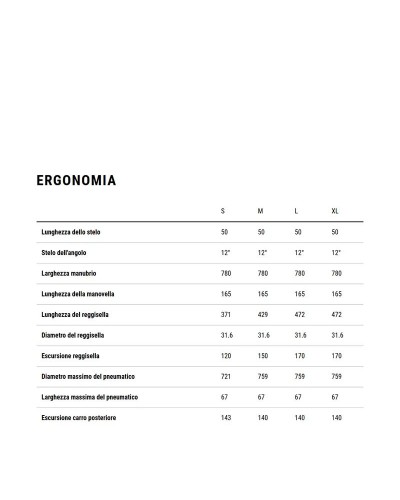

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

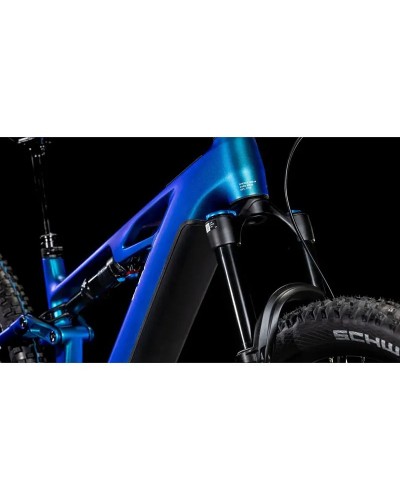

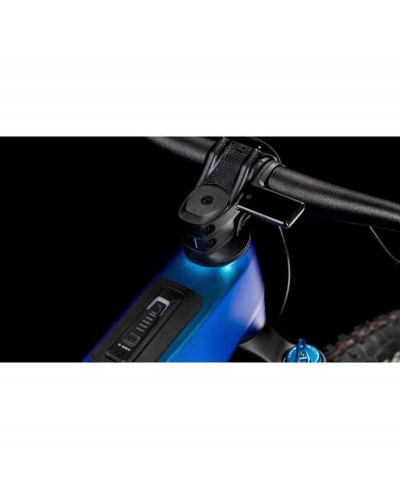

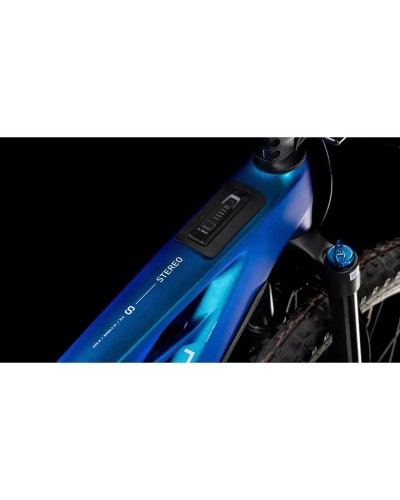

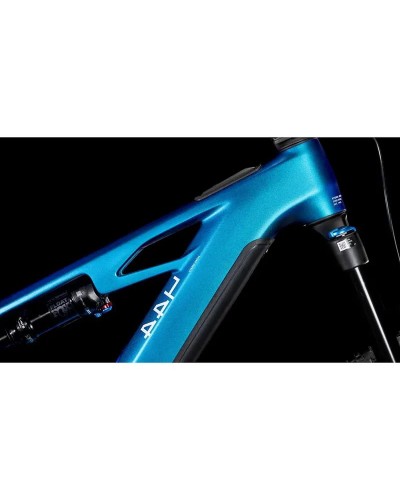

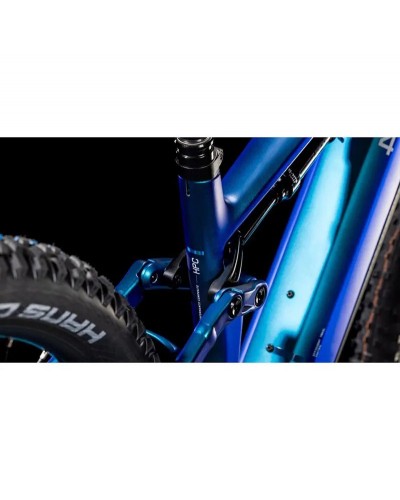

A great bike is all about the detail, and the Stereo Hybrid ONE44 HPC's frame is chock full of clever details. You'll notice the Integrated Cable Routing because it so neatly complements the High Performance Carbon main triangle's clean lines, as well as helping to reduce maintenance. The angle-adjustable headset means you can tailor the handling to your specific requirements. A direct mount chainguard keeps the gears on the straight and narrow, and the neatly integrated Bosch top tube display shows you what's going on with the powerful Bosch CX drive and 800 Wh PowerTube battery at a glance. With a 150mm fork and 140mm of rear-wheel travel, it's ready to take on the toughest of trails. The UDH dropout means it's future-proof, too. And, with Size Split, there's a wide range of sizes to suit most riders.
TECH SPECS
Frame
Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension
Suspension fork: Fox 36 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm

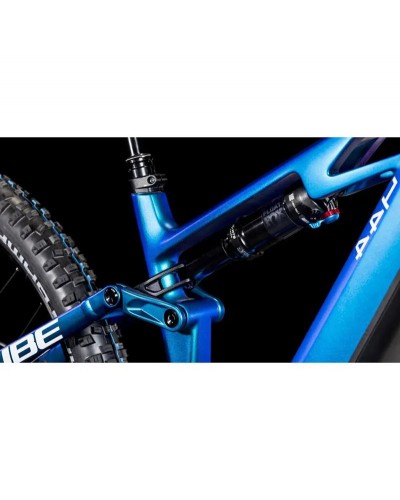

Shock: Fox Float Performance, 230x60mm (27.5: 210x55mm), Open/Firm Mode
Shock hardware: Front: 30x8mm, Rear: DU-Bushing 12,7mm
E-bike system
Drive unit: Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Remote: Bosch System Control, incl. Mini Remote
Battery: Bosch PowerTube 800
Display: Bosch Purion 400
Charger: Bosch 4A
Drivetrain & brakes
Brake system: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano XT SL-M8100-IR, Direct Attach
Crankset: ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12
Chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt
Wheels
Wheelset: Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
Front tyre: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6
Rear tyre: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
Finishing kit
Saddle: ACID Venec EMTB Trail 140
Seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Product information
Weight: 24,4 kg
More Information
Bike category of use: 4
Maximum rider weight: 125 kg
The rider weight refers to the weight of the rider including clothing and any equipment worn on the body.
