Mondraker F-Podium R 29 Sram S1000 Eagle AXS 12sp, Team Issue MY26

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

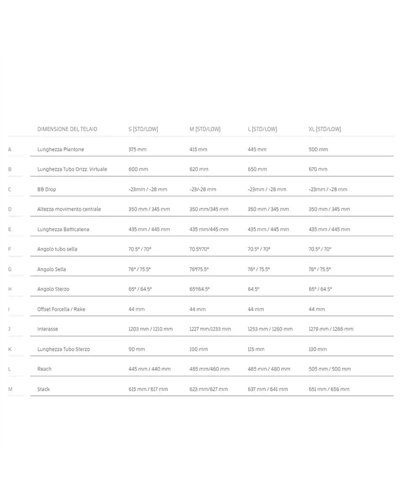

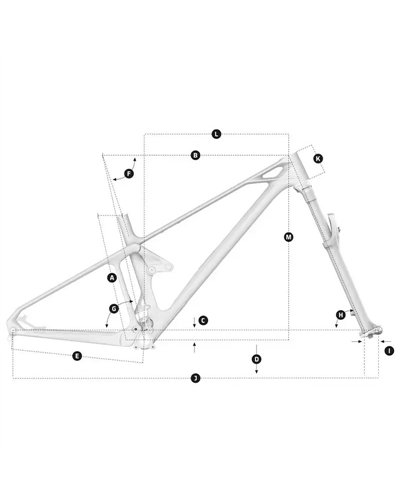

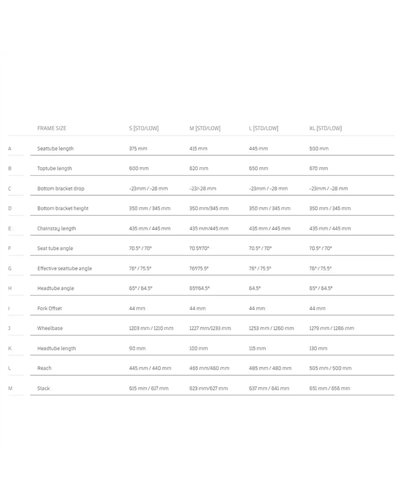

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard, postmount rear brake mount.
Sizes: S: 410mm / M: 440mm / L: 470mm / XL: 500mm
Rear shock: Rockshox SID Luxe 3P Remote in Pull DebonAir, 165x45mm. Settings: 3 position remote,, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: R57 rebound, C33 compression, 1 Token
Fork: Rockshox SID Base 3P Remote 29, 120mm, DebonAir, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: 3 position remote, Low-speed rebound, air preload
Fork remote: RockShox TwistLoc Base FullSprint 125 B1 3 Position (7mm + 7mm), Twist to lock, Twist to unlock
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Stem: Onoff S6 7050 T6 Alloy + CNC, 31.8mm barbore, rise: -7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff S6 0.2 7050 alloy, rise: 5mm, width: 760mm, 8º backsweep, 4º upsweep, 31.8mm barbore
Grips: Rock Shox Twistloc grips
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle: Fizik Vento Argo X5 140mm
Front brake: Sram Motive Bronze 4P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Motive Bronze 4P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Motive Bronze, tools-free reach adjust, lever pivot bearings
Rims: Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes: Mavic straight-pull double butted, contactless lacing
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Crankset: Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm, M size: 165mm, L size: 170mm XL size: 170mm, CL 55
Rings: 34T, CNC-machined alloy, T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm, wide
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram S1000 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod, 12s
Casette: Sram XS-1270, 10-52T, T-Type 12s
Weight: 12,2 kg
