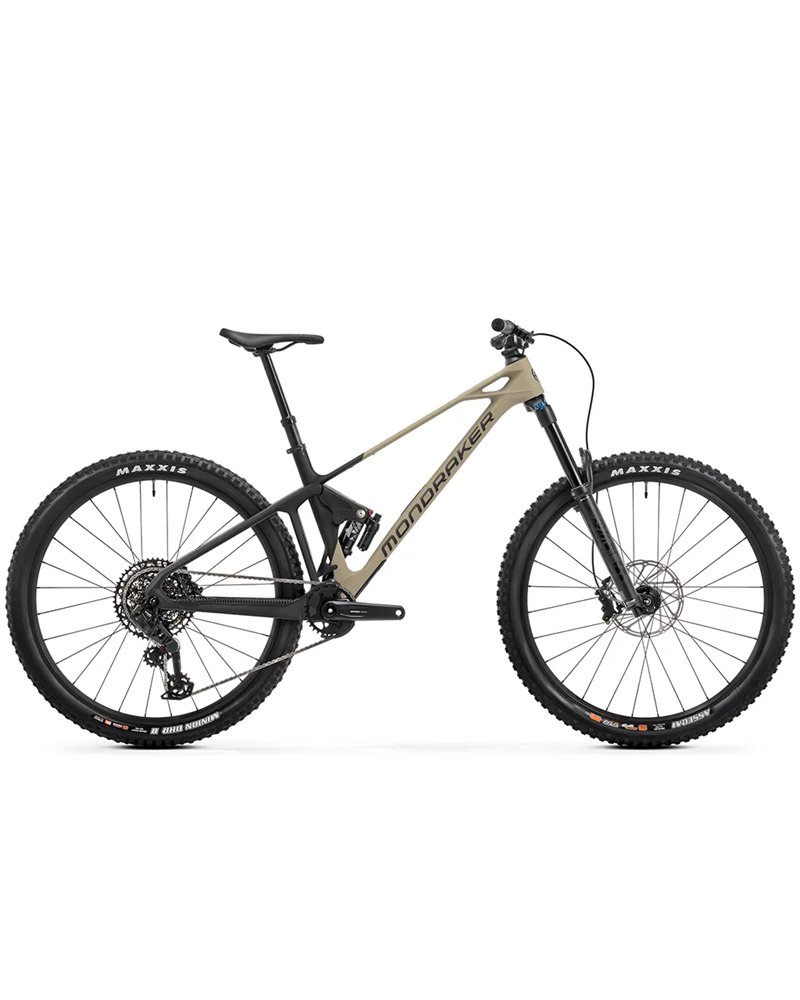

Mondraker Foxy Carbon R 29 Sram S1000 Eagle AXS 12sp, Desert Grey MY26

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

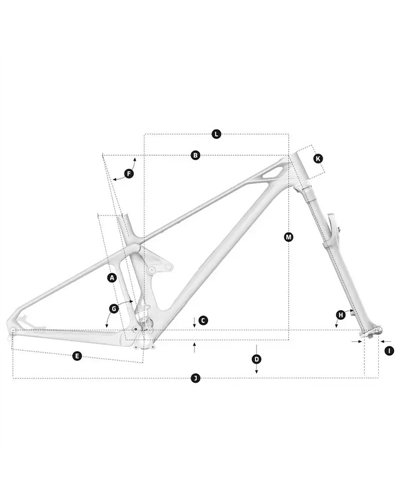

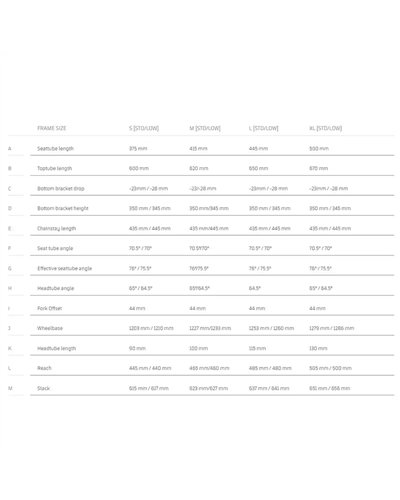

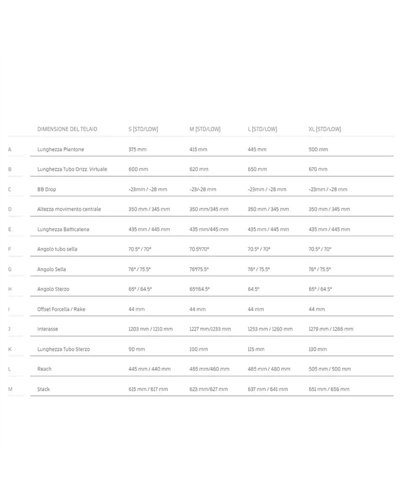

Frame geometry on the attached sheet.

Before proceeding with the purchase, please contact us for availability of your size.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

TECHNICAL SPECIFICATIONS
Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes: S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle: Ergon Enduro SPS20
Front brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust
Rims: DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes
Spokes: DT Champion, straightpull
Front hub: DT 370, Boost 15x110mm, IS 6 bolts
Rear hub: DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts, HG freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C Maxx Terra compound, EXO+ protection, 60TPI, folding bead
Crankset: Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm, CL 55
Rings: 32T, CNC-machined alloy, T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm, wide
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram S1000 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod, 12s
Casette: Sram XS-1270, 10-52T, T-Type 12s
Weight: 14,8 kg
