The natural step up in performance: upgraded components to make the most of every trail. Greater response on climbs and descents. For riders looking to refine their skills in the ebike world.
The natural step up in performance: upgraded components to make the most of every trail. Greater response on climbs and descents. For riders looking to refine their skills in the ebike world.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

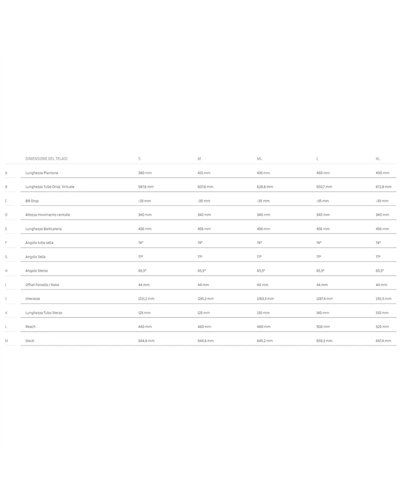

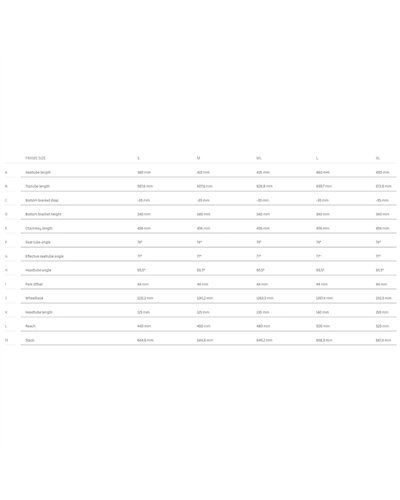

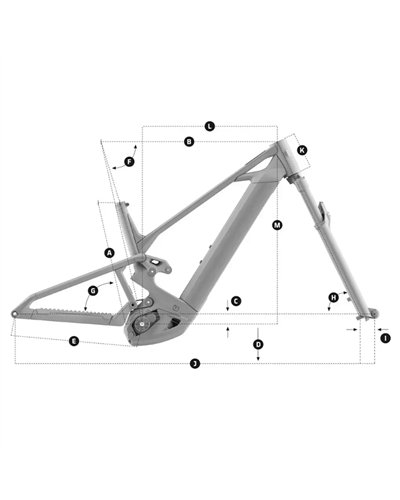

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float Rhythm EVOL 165x45mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: LCM compression, LRM rebound, CMF, 0.8 volume spacer
Fork: Fox 36 29 Float Rhythm, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: GRIP Sweep-Adjust
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
Saddle: Ergon SMC10 Gel
Front brake: Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram DB6, tool reach adjust, lever pivot bushings
Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Superboost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire: Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
Crankset: E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings: Sram Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur: Sram 70 Eagle, T-Type, 12s
Shift levers: Sram Trigger 70, 12s, T-Type Actuation
Casette: Sram XS-1270, 10-52T, 12s
Weight: 25,6 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery: Bosch Powertube 800Wh
Data sheet
No customer reviews for the moment.
Anyone looking for a full-suspension aluminium e-mountain bike
Designed for riders who want an e-mountain bike with a 6061 aluminium frame, full suspension and 29" wheels. The setup focuses on stable handling and support from the Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y) motor.
Anyone who wants high capacity and a T-Type drivetrain
Suitable for those looking for a Bosch Powertube 800 Wh battery and a Sram 70 Eagle, T-Type, 12s drivetrain. The combination is designed for long rides and modern shifting on an e-bike.
Anyone prioritising control on descents and trail grip
Recommended for riders who want Sram DB6 brakes with 4-piston callipers, 130 mm suspension travel and Maxxis Dissector 29x2.6 tubeless ready tyres. The configuration helps with control on technical terrain.
Ideal
Technical trails and mountain bike descents
The 130 mm Zero Suspension system, Sram DB6 4-piston brakes and Maxxis Dissector 29x2.6 tyres provide a setup suited to demanding trails.
130 mm suspension · disc brakes · 29x2.6 tyres
Very suitable
Long rides with electric support
The Bosch Powertube 800 Wh battery and Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y) motor support extended rides on mixed terrain.
800 Wh · Bosch CX motor · e-bike
Suitable
Climbs and accelerations on trails
The Sram 70 Eagle, T-Type, 12s drivetrain with Sram XS-1270 10-52T cassette handles changes in pace well on climbs and varied sections.
12-speed · 10-52T cassette · SRAM Eagle group
Experienced e-MTB rider
It is fitted with the Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU384Y). This motor is designed for e-MTB use, with support suited to off-road routes.
The battery is a Bosch Powertube 800 Wh. This figure indicates a high capacity for long e-bike rides.
It uses the Zero Suspension system with 130 mm travel. It is a full-suspension solution designed for mountain biking.
The bike is fitted with Sram 70 Eagle, T-Type, 12s. The configuration includes a Sram XS-1270 10-52T cassette and a Sram 70 T-Type, 12s Flattop, PowerLock chain.
It comes with Sram DB6 brakes with 4-piston callipers front and rear. The rotors are 200 mm with IS 6-bolt mounting.
It uses 29" wheels with e*thirteen Grappler Core, IW30 Hookless rims. The tyres are Maxxis Dissector 29x2.6 tubeless ready.
Frame sizes are S: 380 mm, M: 410 mm, ML: 435 mm, L: 460 mm and XL: 490 mm. The technical sheet also lists these measurements for the frame.
The stated weight is 25.6 kg without pedals. This is the figure to consider for the overall evaluation of the bike.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
