Mondraker Chrono DC 29 Sram SX Eagle 12s, Graphite Grey MY24
Mondraker Chrono DC 29 Sram SX Eagle 12s, Graphite Grey MY24
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

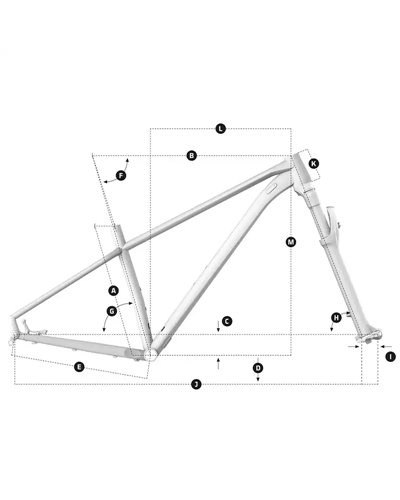

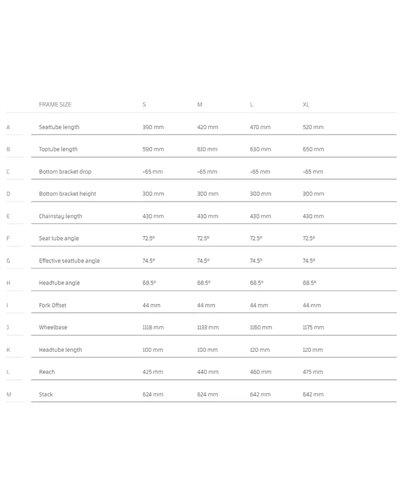

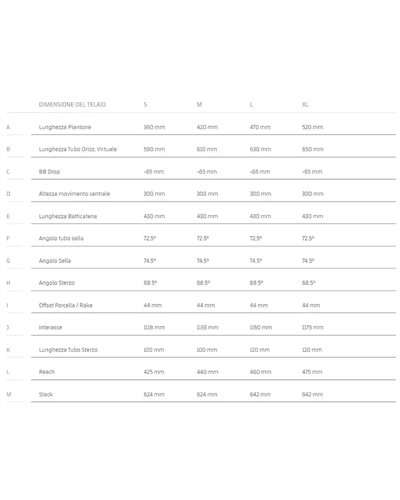

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork: RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 51mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload
Fork remote: RockShox PopLoc
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Saddle: Mondraker XC Series, steel rail
Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings: 34T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 13,6 kg
Data sheet
No customer reviews for the moment.
Cross-country and light trail
Designed for those looking for an aluminium MTB Front with Alloy 6061 Xtralite frame, low weight and a modern setup for XC rides and fast dirt tracks.
Cyclists who want a 1x12 drivetrain
Suitable for those seeking the simplicity of the SRAM SX Eagle, 12s drivetrain with 11-50T cassette and SRAM Level hydraulic disc brakes.
Men and women on 29" wheels
Suitable for those who want a 29" MTB with S, M, L and XL sizes and geometry designed for MTB use.
Ideal
XC rides on mixed terrain
The combination of 29" wheels, Alloy 6061 Xtralite frame and Front suspension makes it suitable for fast-paced XC use on mixed terrain.
Ruote 29" · Alluminio · Sospensione Front
Very suitable
Technical routes without extreme difficulty
The RockShox Judy Silver TK 120 mm fork and SRAM Level brakes help on more demanding sections.
Forcella 120 mm · Freni a disco · MTB
Suitable
Training on trails and dirt tracks
The 13.6 kg weight and SRAM SX Eagle, 12s drivetrain make it suitable for training sessions on trails and dirt tracks.
13,6 kg · 12 velocità · Sterrato
Technical MTB rider
The intended use is MTB. It is therefore designed for off-road rides and trails.
The frame is made of Alloy 6061 Xtralite, with aluminium as the main material.
It is equipped with SRAM SX Eagle, 12s, with SRAM SX Eagle shifter and rear derailleur.
It is equipped with SRAM Level hydraulic disc brakes, with a 180 mm front rotor and 160 mm rear rotor.
The wheels are MDK-XP1 29 TLR, with 25 mm internal width, tubeless ready and 32 spokes.
The frame sizes are S: 395 mm, M: 430 mm, L: 470 mm and XL: 520 mm.
