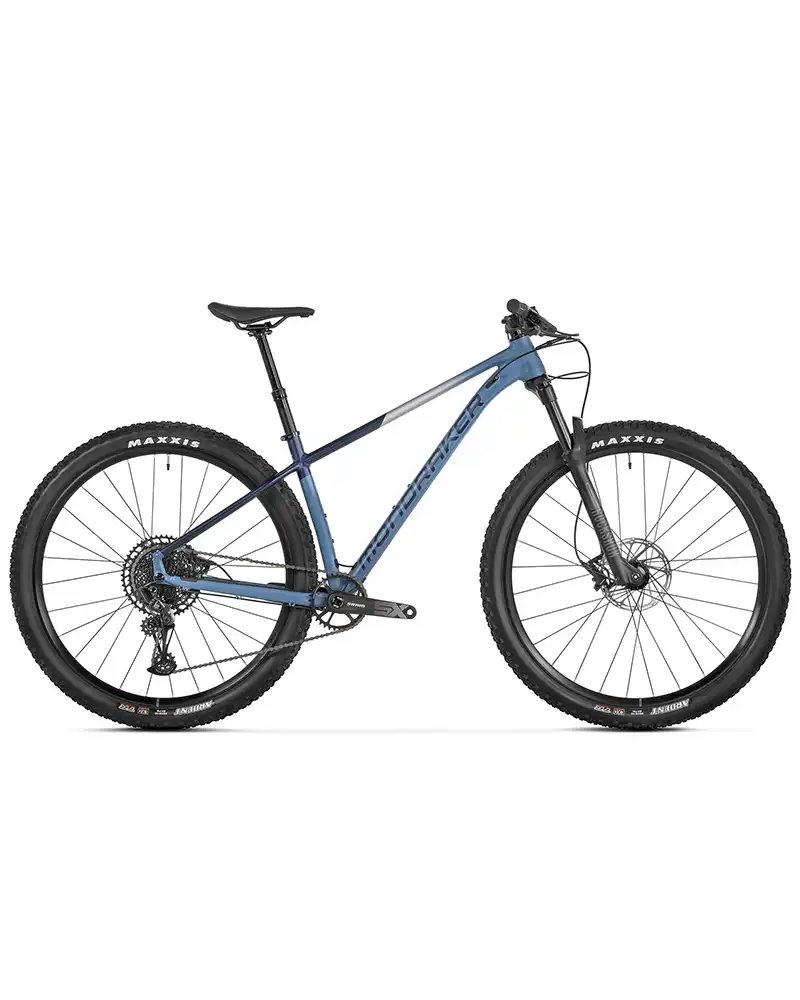

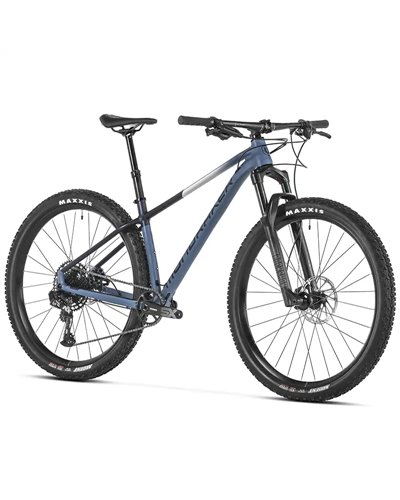

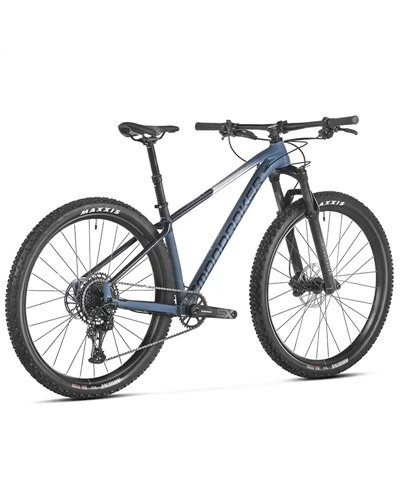

Mondraker Chrono DC R 29 Sram NX Eagle 12s, Denim Blue MY24
Mondraker Chrono DC R 29 Sram NX Eagle 12s, Denim Blue MY24
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

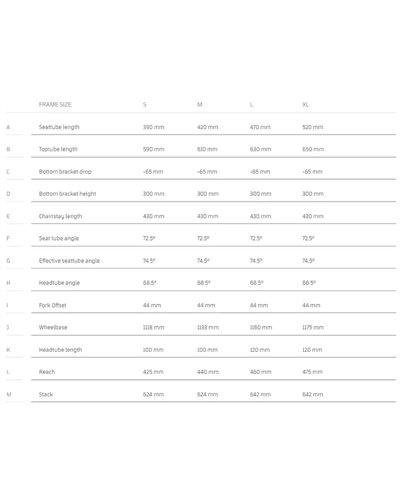

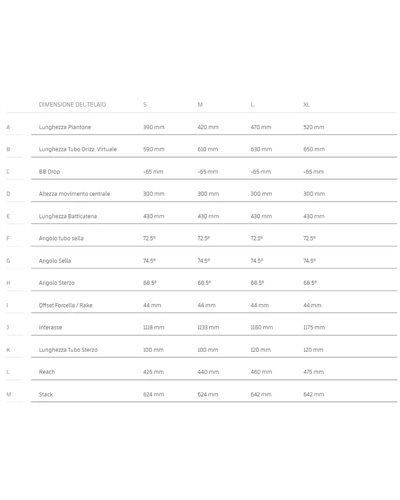

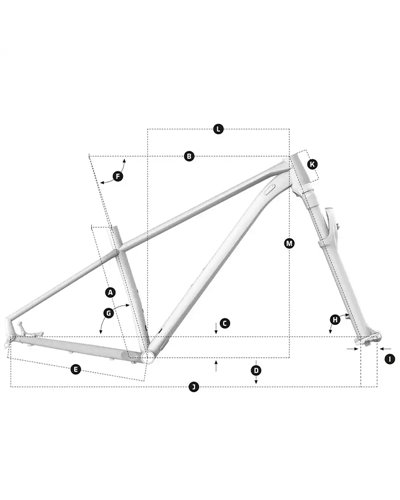

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork: RockShox Recon Silver RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Fork remote: RockShox PopLoc
Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever S size: 405x95-125mm, M size: 405x95-125mm, L size: 458x120-150mm, XL size: 458x120-150mm
Saddle: Mondraker MDK Series, SRX, steel rail
Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes: Mavic J-bemd steel round spokes
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Rings: 34T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 13,9 kg
Data sheet
No customer reviews for the moment.
XC rider on a 29" front suspension bike
Designed for XC with an aluminium frame, SRAM NX Eagle 12v drivetrain and RockShox 120 mm fork. The weight is 13.9 kg and the wheel size is 29".
For those looking for a front suspension MTB with technical spec
Suitable for anyone wanting a front suspension MTB with a Spessore Alloy 6061 Xtralite frame, SRAM Level brakes and Mavic CrossRide 29 wheels. The set-up is aimed at XC use.
Rider wanting a bike ready for light trail and fast rolling terrain
Suitable for riders on fast routes looking for a bike with a 1x12 drivetrain, wheels with 30 mm internal width and an internal dropper post. Frame size is available in S, M, L and XL.
Ideal
XC rides on fast trails
The geometry and build are designed for XC, with an aluminium frame, RockShox 120 mm fork and SRAM NX Eagle 12v drivetrain.
XC · 120 mm fork · 1x12 drivetrain
Very suitable
Rides on compact gravel and climbs
The SRAM NX Eagle 12v groupset and SRAM Level brakes make the bike suitable for climbs and fast stretches on compact gravel.
Compact gravel · SRAM NX Eagle 12v · Disc brakes
Suitable
Sport use with 29" wheels
The Mavic CrossRide 29 wheels with 30 mm internal width provide good support for sporty use on mixed, fast-rolling routes.
29" wheels · 30 mm internal width · Sport use
Experienced XC rider
Sporty rider wanting a modern front suspension MTB
It is fitted with a SRAM NX Eagle 12v groupset. It is a 1x12 drivetrain designed for XC use.
It uses SRAM Level brakes with a one-piece Centerline brake rotor, 180 mm at the front and 160 mm at the rear. Reach adjustment is done with tools.
It is fitted with Mavic CrossRide 29 wheels with 30 mm internal width. The setup is tubeless ready.
The stated weight is 13.9 kg without pedals.
The available frame sizes are S, M, L and XL, with measurements of 395 mm, 430 mm, 470 mm and 520 mm.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
