Mondraker Chrono Carbon DC 29 Sram NX Eagle 12s, Flame Red MY24
Mondraker Chrono Carbon DC 29 Sram NX Eagle 12s, Flame Red MY24
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

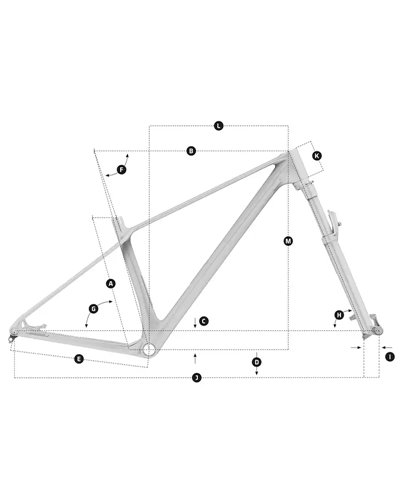

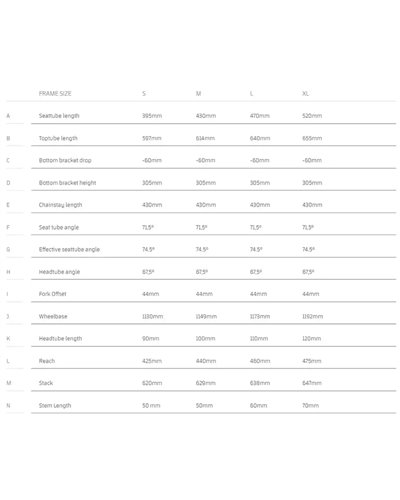

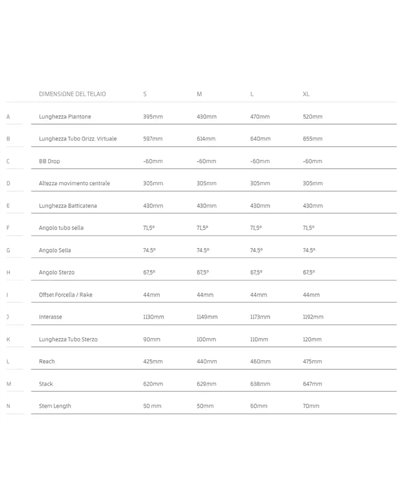

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork: RockShox Recon Gold RL Remote 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 42mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Fork remote: RockShox OneLoc
Headset: Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle: Mondraker MDK Series, SRX, steel rail
Front brake: Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: Mavic CrossRide 29, 30mm internal width, sleeved rim, hookless, tubeless ready, 28 spokes
Spokes: Mavic J-bemd steel round spokes
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings: 34T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1230, 11-50T, 12s
Derailleur hanger: Sram UDH
Weight: 12,2 kg
Data sheet
No customer reviews for the moment.
XC and trail on a front-suspension bike
Designed for those looking for a carbon MTB with a front-end setup and low weight. The Chrono 29 Stealth full Carbon frame and the SRAM NX Eagle groupset make it suitable for sporty rides and fast routes.
Cyclists who want a responsive hardtail
Suitable for those wanting an MTB with 29" wheels, SRAM Level brakes and a setup focused on rolling efficiency. The Carbon structure helps keep the weight at 12.2 kg without giving up a technical build.
Men and women looking for a technical MTB
Suitable for those who want an MTB with multiple sizes and components with a consistent technical level. The XC geometry and 1x12 transmission make it suitable for riders who pedal at a steady pace on mixed terrain.
Ideal
Fast, continuous XC rides
This is the most suitable scenario for this bike. Carbon frame, 29" wheels and the SRAM NX Eagle groupset help maintain pace and smooth pedalling.
Telaio in Carbonio · Ruote 29" · SRAM NX Eagle
Very suitable
Rides on singletrack and compact dirt
The front-end setup and SRAM Level brakes make it suitable for well-defined trails and frequent changes of pace. The Mavic CrossRide 29 wheels with 30 mm internal width support use with 2.40 tyres well.
Sospensione front · Freni a disco · Mavic CrossRide 29
Suitable
Technical training on mixed terrain
The 1x12 drivetrain and the 120 mm RockShox Recon Gold RL Remote 29 fork help with climbing and accelerations. It is a bike designed to work precisely with cadence and pace.
1x12 · Forcella 120 mm · Allenamento
XC rider focused on performance
Sport rider wanting a technical hardtail
The weight is 12.2 kg without pedals. It is a useful figure for those looking for a lightweight MTB to push on fast routes.
The frame is Chrono 29 Stealth full Carbon. This solution is intended to reduce weight while maintaining a stiff XC MTB setup.
It uses SRAM NX Eagle with a 1x12s setup. In practice, it offers simple gear management on mixed terrain.
It uses SRAM Level brakes with 180 mm Centerline discs at the front and 160 mm at the rear. This system is designed for precise control on an MTB.
It uses Mavic CrossRide 29 wheels with 30 mm internal width. This size matches the use of Maxxis Ardent 29x2.40 tyres.
The available sizes are S: 395 mm, M: 430 mm, L: 470 mm and XL: 520 mm. Size selection should be based on the stated frame measurement.
Information prepared by the BSA team with the support of AI, based on the manufacturer's specifications.
