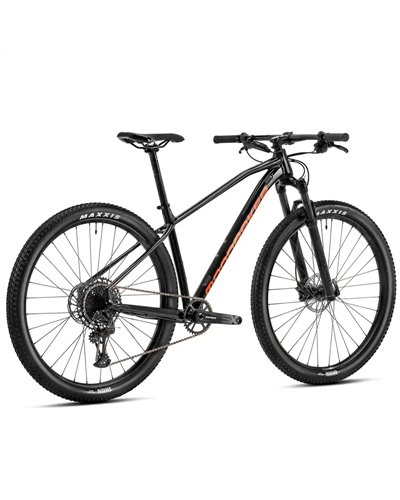

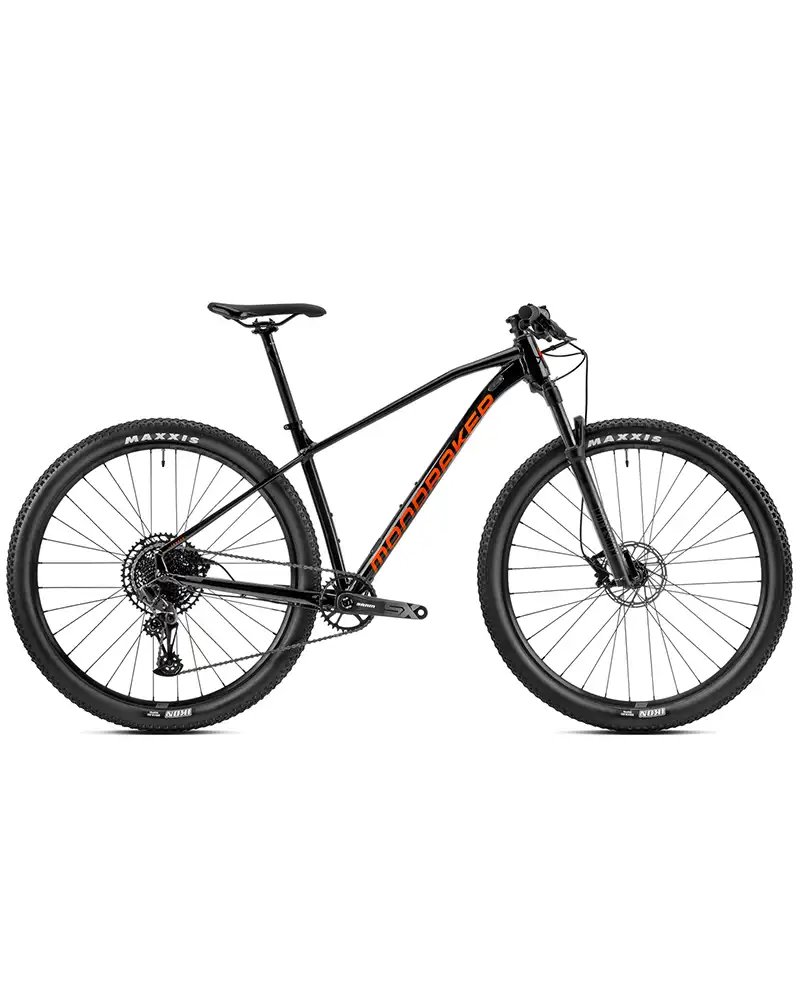

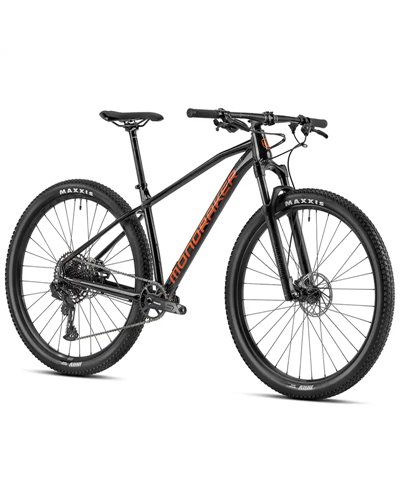

Mondraker Chrono 29 Sram SX Eagle 12s, Black MY23
Mondraker Chrono 29 Sram SX Eagle 12s, Black MY23
The price has not been reduced in the last 30 days. The recommended price is set by the manufacturer and is shown for reference only.
FREE SHIPPING IN ITALY FROM 129,99 EUROS*
100% SECURE CHECKOUT
N.1 in Italy in the Bike and E-Bike Shops
Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

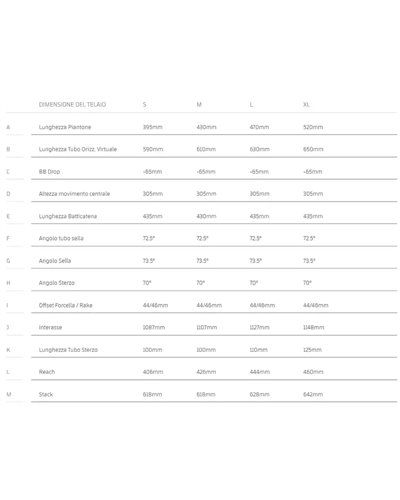

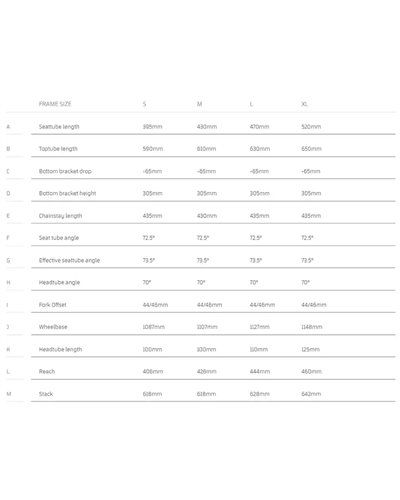

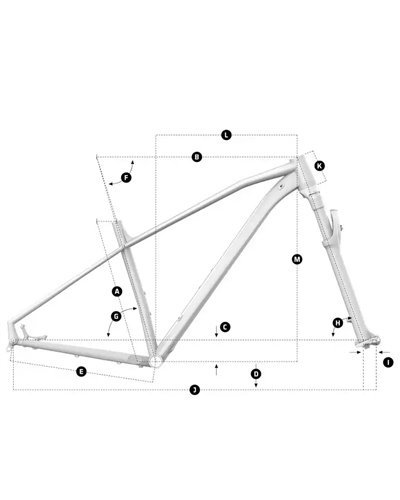

Frame geometry on the attached sheet.
Before proceeding with the purchase, please contact us for availability of your size.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
TECHNICAL SPECIFICATIONS
Frame: Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork: RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload
Fork remote: RockShox PopLoc
Headset: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm
Handlebar: ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: ONOFF Twin, 1lock-on, 135mm
Seatpost: ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Saddle: Mondraker XC Series, steel rail
Front brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level, tooled reach adjust, lever pivot bushings
Rims: MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear hub: Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts, MS freehub
Front tire: Maxxis Ikon 29x2.20, 60TPI, wire bead
Rear tire: Maxxis Ikon 29x2.20, 60TPI, wire bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings: 34T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 12,9 kg
Data sheet
No customer reviews for the moment.
XC on a lightweight front MTB
Designed for riders looking for an XC MTB with a front-end setup and low weight. The Chrono 29 Stealth Alloy frame and 29" wheels support efficient riding on fast trails.
Male cyclist wanting a simple, direct build
Suitable for riders looking for a men's bike with a Sram SX Eagle 12v mechanical drivetrain and hydraulic disc brakes. The configuration is geared towards control and practicality in MTB use.
Sport riding on trails and smooth off-road tracks
Suitable for riders tackling XC routes who want a stiff aluminium platform with front fork and 29" wheels. The XC geometry helps maintain an efficient, pace-oriented ride.
Ideal
Fast XC rides
The XC geometry and 29" wheels make it suitable for fast-paced rides on smooth trails.
Geometria XC · Ruote 29" · MTB
Very suitable
Climbing and accelerating in MTB
The 12.9 kg weight and the Sram SX Eagle 12v drivetrain help with pace management and changes in tempo.
12,9 kg · Sram SX Eagle 12v · MTB
Suitable
Technical rides with brake control
The hydraulic disc brakes provide precise braking control on more demanding sections.
Freni a disco · Idraulico · Controllo
XC rider looking for an aluminium hardtail
MTB user wanting an essential, technical bike
It is an MTB designed for XC. The geometry and build are aimed at sporty use on fast routes.
It uses a Sram SX Eagle 12v. It is a mechanical 1x12s drivetrain with a Sram PG-1210 11-50T cassette.
It uses Sram Level hydraulic disc brakes with 160 mm Centerline rotors. This helps maintain precise braking on MTB rides.
The bike uses 29" wheels. This format is consistent with XC use on MTB.
The frame sizes are S: 395 mm, M: 430 mm, L: 470 mm and XL: 520 mm.
The frame is made from Chrono 29 Stealth Alloy. The main material specified is aluminium.
