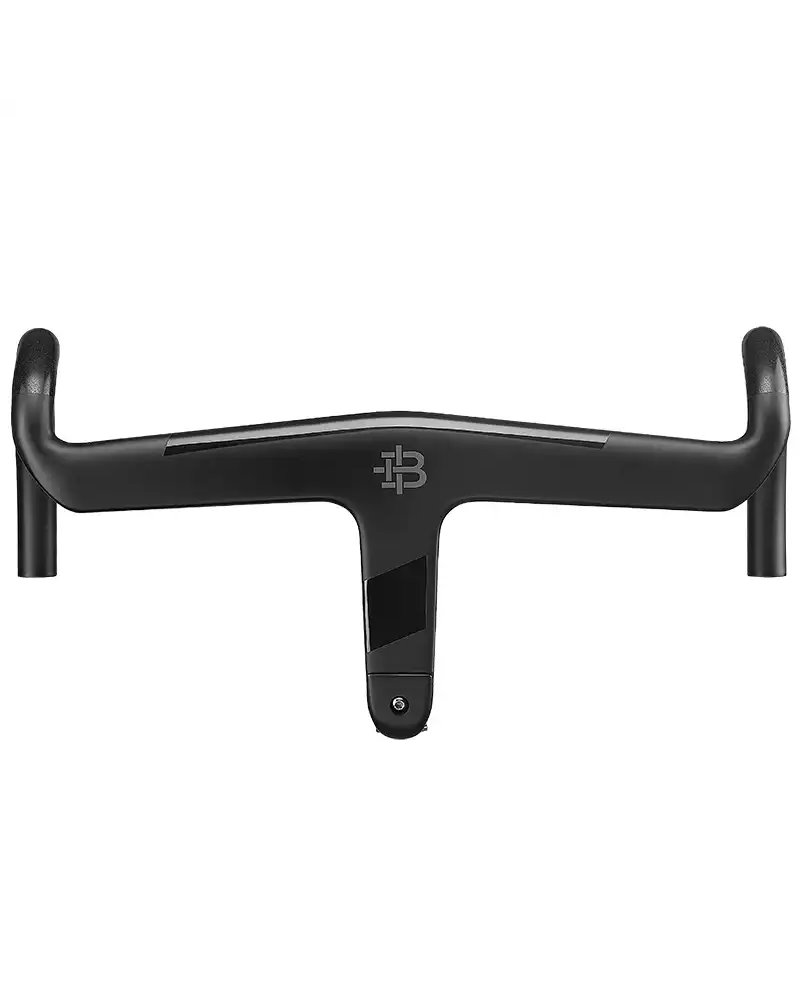

Black Inc Integrated Aero Carbon Barstem 100/400mm, Black

The Integrated Aero Barstem is the new benchmark aero barstem for road and gravel, combining leading aerodynamics with refined ergonomics and a feathery weight. Its progressive shape, with drops flared by 30mm, boosts control and slashes the drag of the combined bike and rider, while increasing wrist clearance and comfort.

AERO
The Integrated Aero Barstem achieves its speed in two ways: 1, it enables the rider to achieve a much more aero position; 2, it slices the air more efficiently. Both the rider and the bike’s handlebar meet undisturbed airflow at the front of the bike, so these are big opportunities to reduce drag.

You can achieve a more aero position on the Integrated Aero Barstem thanks to the narrower hoods. This is now a popular feature across aero road bikes with good reason – it works. With your hands on the horns of the levers and your forearms flat, your frontal area is reduced and you go faster.

The mid-depth profile of the top section was selected to compliment the OSTRO VAM and to balance aero against weight and the need for the tops to be comfortable. Following extensive research and development, a 40mm profile depth was chosen. Variations were assessed in CFD (computational fluid dynamics software) first and then prototypes of the best shapes were tested in a wind tunnel. When we returned to the tunnel with the final version to run it against the best rival products, we were so shocked at the results that we repeated the tests. The outcome was the same – the Integrated Aero Barstem decimates the competition.

ERGONOMICS
Every aspect of the Integrated Aero Barstem is refined to maximize comfort and confidence. The tops sweep back at 3 degrees for a more natural wrist angle, the chamfered corners add wrist clearance when sprinting, and the mid-depth aero profile fits naturally when climbing on the tops even for smaller hands. The upper radius of the drop is tightened to bring the brake lever approximately 5mm closer to the drop to account for the greater length of the latest Shimano and SRAM shifter bodies. This is the attention to detail that makes the difference.

The drops flare out at 7 degrees and measure 29mm wider than the shifter. This carefully judged angle provides a narrow position on the hoods in typical road sizes and, for gravel use in a wider size, it gives confident control in the wider drops while keeping the shifters at an optimal angle.

SIZING FOR ROAD & GRAVEL USE
The perfectly judged 7-degree flare, placing the drops 29mm wider than the hoods, is how the Integrated Aero Barstem can pull double-duty as both a road and a gravel bar. For the road, size your bar at the drops and benefit from narrower hoods placing you in a more aero position; for gravel use, size your bar at the hoods and enjoy the added control of wider drops when the terrain demands it.

COMPATIBILITY, CABLE ROUTING AND ACCESSORY MOUNTING
Fully internal cable routing is supported for electronic and disc brake groupsets only.

SPECS
WEIGHT: 398 g (42 cm x 110 mm)
MATERIAL: Carbon Fiber
ANGLE: -6°
DROP: 120 mm
REACH: 80 mm
STACK: 39 mm
FLARE (DROP SECTION): 7°
BACKSWEEP (TOP SECTION): 3°
STEERER DIAMETER: 1-1/8"
FINISH: UD matte and glossy
INTERNAL CABLE ROUTING: Electronic and Disc Brake systems only
EXTERNAL CABLE ROUTING: n/a
ACCESSORIES INCLUDED: Black Inc Computer Mount (V10)

SUPP. REFERENCE: FA19BLI35Z74908020
