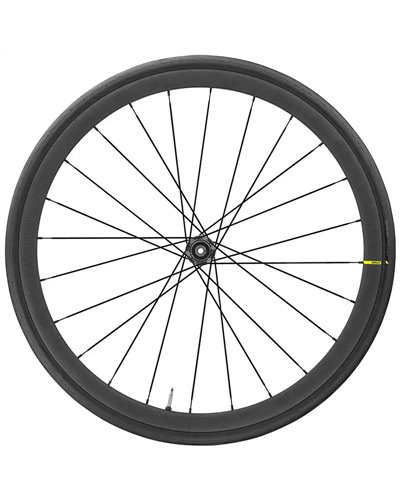

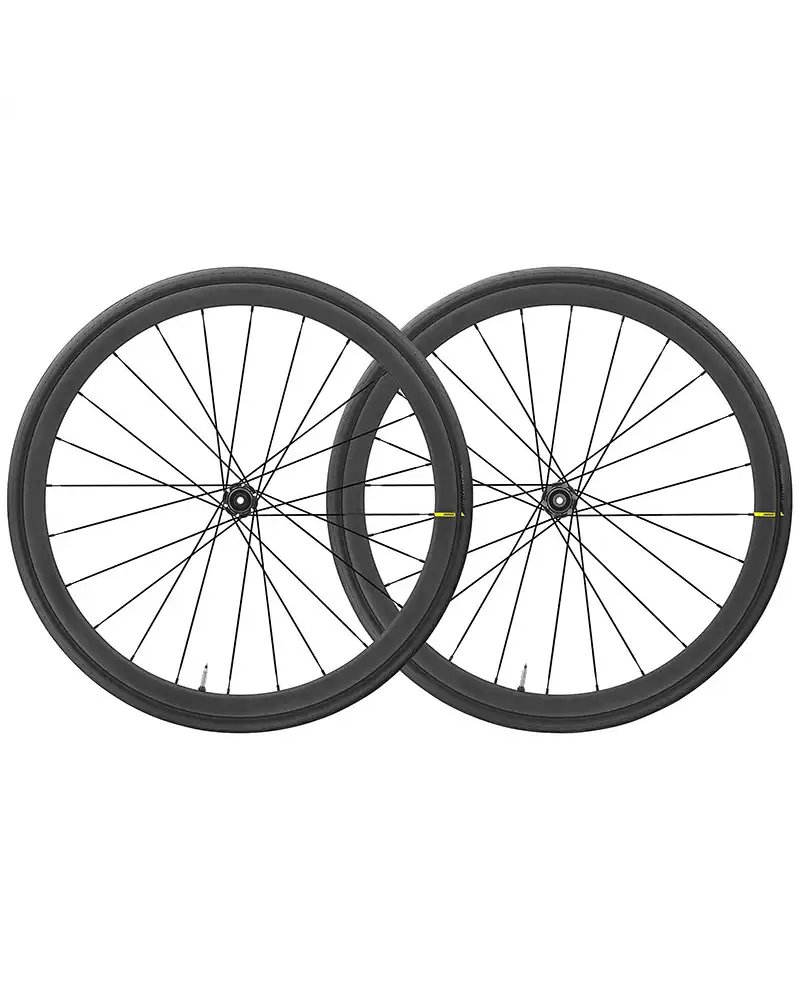

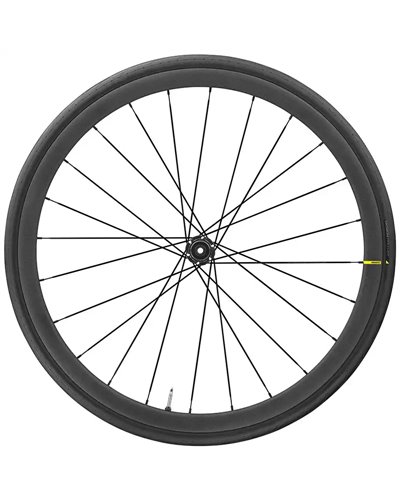

Mavic Ksyrium Pro Carbon SL UST 19 DCL Wheelset M-28

KEY BENEFITS

Superlight optimized for disc brakes for instant acceleration and fast climbing.
Super low weight 32mm NACA rim profile.
21mm internal width, optimized for 28mm tires to deliver the best ride quality.
32mm aero optimized only possible when removing the constraint of the brake track.
New slick 12mm only front hub.

Super high efficiency optimized for disc brakes.
Low friction durable bearings with automatic play adjustment.
Reactive Instant Drive 360 freewheel system.
Optimized spoke lacing.

Roll faster and smoother with a reduced risk of punctures.
Specific rim width for disc brake bikes improves ride quality.
Mavic Road UST increases rolling efficiency and reduces chances of flats.
Rim and tire are made for each other: easy to install and repair.

Now we’ve added our UST Road Tubeless technology to make the Ksyrium Pro Carbon SL UST even faster. Eliminating the tube also eliminates friction, so you roll faster with greater efficiency. And now you can run lower tire pressures in the Yksion Pro UST Tubeless tires for increased comfort and a reduced risk of flats. As a bonus, the UST system including sealant weighs less than a traditional tube and tire system.
This disc brake specific version benefits from an increased width to 21mm (internal). As the air volume increases, rolling resistance decreases and comfort is improved. The specific outer shape was defined according to the NACA requierement: 26mm external width for 32mm depth provide the best balance of low weight and rotational mass for easier faster climbing, and aerodynamics for fast downhills and valley transitions.
The spokes are using our patented elliptical bladed shape for increased aerodynamics. Being double butted they are light and improves the ride quality. Using 24 spokes front rear creates high stiffness, low weight and long-term reliability.
The Ksyrium Pro Carbon SL UST Disc also includes our new Instant Drive 360 freewheel system hubs for fast engagement, high axle stiffness and great durability. And if you need to service it, the tool-free design makes it simpler than ever.
The front hub is convertible from 12mm thru-axle to quick release while the rear wheel comes with a 12x142 thru-axle and is convertible to quick release.
The freewheel system is compatible with Shimano/SRAM and can be converted to Campagnolo or SRAM XD with optional driver bodies.

SPECIFICATIONS
Compatibility
Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies
ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)
ID360 XD-R freewheel body (LV2580100)
ID360 Campagnolo freewheel body (LV3440100)
ID360 Shimano / Sram Light freewheel body (LV3850100)
12x135 rear axle adapters (LV2510900)
12 to 9mm rear adapter for quick release (LV2510800 - Delivered with the wheel)
12x142 rear axle adapters (LV2510700 - Delivered with the wheel)
15mm axle (LV2373500)
12 to 9mm front adapter for quick release (LV2680300 - Delivered with the wheel)

Weight
Pair without tyre: 1495 grams
Front without tyre: 685 grams
Rear without tyre: 810 grams

Hubs
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum

Intended Use
Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Recommended tyre sizes: 25 to 32 mm

Rims
ETRTO size: 622x21TC ROAD
Height: 32mm
Use with Mavic Tubeless Tape
Material: 3K carbon fibers
Drilling: traditional
Internal width: 21 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype

Spokes
Shape: straight pull, aero, double butted
Nipples: aluminum, ABS
Material: steel
Lacing: front crossed 2, rear Isopulse
Count: 24 front and rear

Tyre
Dimensions: 28-622 (700x28c)
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Breaker: Polyamide, from bead to bead
Casing: 127 TPI

Versions
Disc standard: Center Lock(R) only
Color: Black only

DELIVERED WITH
Tyre sealant syringe
Rear QR adapters for Instant Drive 360
Mavic tyre sealant (rear wheel)
Tubeless rim tape
Front QR adapters
UST valve and accessories
User guide
