BMC Teammachine SLR01 Four - Shimano Ultegra Di2 12sp, Carbon Black

Image relating to wheels and groups is for indicative purposes only, may not match to the actual bike assembly.
We advise you to refer to the technical sheet below. For any questions please contact us.

Please contact us for availability of your size and expected delivery times.

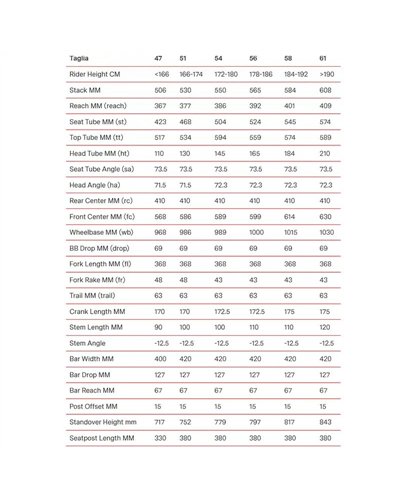

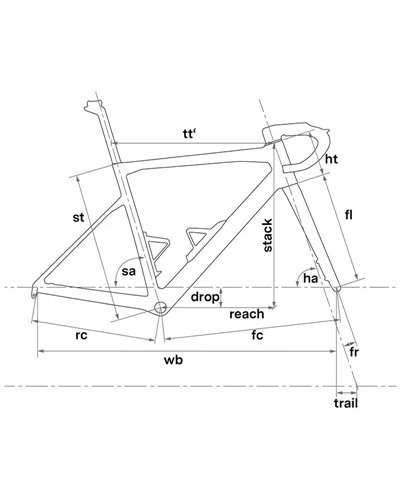

Frame geometry on the attached sheet.

Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.

Redefine Gravity with the all new Teammachine SLR 01. With a "01 carbon layup", BMC's lightest frameset provides you with high stiffness score to transform every single watt into speed. More speed you ask? We built superior aerodynamics making it almost as fast as a Teammachine R 01. All this comes with no compromise: our Impec Lab engineers made sure we had a full BMC ride feel including TCC Race compliance, sharp handling and a bike geometry that fit your needs. Fitted with the SHIMANO Ultegra Di2 groupset, 4iiii powermeter, our ICS Carbon Evo one-piece cockpit and premium CR 40 SL wheelset. Mountain passes are waiting for you!

SPECIFICATIONS

Frameset
Frame: Teammachine SLR 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork: Teammachine SLR 01 Premium Carbon | ICS Technology Stealth Cable Routing | TCC Race Compliance Level | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle | 48mm offset Size 47-51 43mm offset Size 54-61

Cockpit

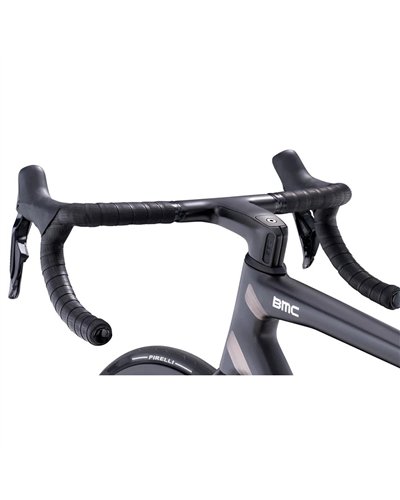

Handlebar: ICS Carbon Evo | One Piece Full Carbon Cockpit | 127mm drop, 70mm reach, 8° flare

Seat
Seatpost: Teammachine SLR 01 Premium Carbon Aero Shaped Seatpost | 10mm Offset
Saddle: Fizik Argo Vento R3 | 140mm

Drivetrain
Crankset: SHIMANO Ultegra (FC-R8100)
Chainrings: 52-36T
Power Meter: 4iiii Precision Gen3+ Power Meter (Non-Drive Side)
Cassette: SHIMANO Ultegra (CS-R8100 or CS-R8101)
Cassette Size: 11-30T
Chain: SHIMANO CN-M8100
Front Derailleur: SHIMANO Ultegra Di2 (FD-R8150)
Rear Derailleur: SHIMANO Ultegra Di2 (RD-R8150)
Shifters: SHIMANO Ultegra Di2 (ST-R8170)
Gears: 2 x 12
Bottom Bracket: SHIMANO Press Fit SM-BB72

Brakes
Brake Levers / Calipers: SHIMANO Ultegra (BR-R8170)
Rotors: SHIMANO Ultegra (RT-CL800)
Rotor Size (F/R): 160 / 160mm

Wheels
Rims: CR 40 SL Carbon | Tubeless Ready | 40mm
Hubs (F/R): TXC-812 & TXC-240 Centerlock
Tires: Pirelli P Zero Race TLR | 26mm
Tubeless Information: Tubeless Rim | Tubeless Tires

Accessories
In the Box: Aerocore Bottle Cages

Additional Information
Tire Clearance: 32mm
Weight without Pedals: 7.1kg | Size 54 with all accessories
ASTM Classification: Level 1
System Weight Limit: 110kg
