Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.

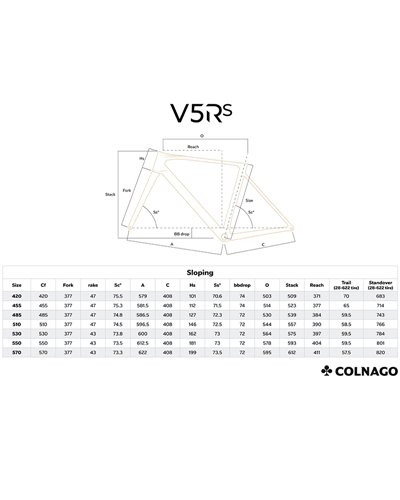

Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
KIT V5RS DISC:
#001: Groupset Campagnolo Super Record WRL - Wheels Bora Ultra WTO 45
#002: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5
#003: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5 - PowerMeter for Shimano Dura Ace Di2
#004: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50
#005: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50 - PowerMeter for Shimano Dura Ace Di2
#006: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45
#007: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45 - PowerMeter for Shimano Dura Ace Di2
#008: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Fulcrum Sharq 57
#009: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Vision SC45
#010: Groupset Sram Red AXS E1 - Wheels Vision SC45 - PowerMeter for Sram Red eTap AXS
#011: Groupset Sram Force AXS E1 - Wheels Vision SC45
SIZE: 420 - 455 - 485 - 510 - 530 - 550 - 570
The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.
To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.
FEATURES
The lightest Colnago ever
The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.
Thinner profiles
The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.
Narrow frontal area
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.
Stiff and responsive
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.
More precise steering
The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.
Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.
The V5Rs has been designed to improve every aspect of riding: weight, aerodynamics, rigidity and handling, taking into account the real needs of racing. The only goal: to win.
TECHNICAL DETAILS
Weigth
Weigth: Size 485 unpainted frame: 685g
Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg
Frame kit
Frame (material): Colnago V5Rs Monocoque carbon frame
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.
Headset: 1"1/8 and 1"1/4 - SLT Treated Bearings
Seatpost: Standard Option: Carbon seatpost, 15mm offset - Sold separately: Carbon seatpost, 0 mm offset
Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
Data sheet
No customer reviews for the moment.
Road racing professionals
It is designed for riders seeking a stiff, lightweight and responsive road racing bike with a race-focused setup. The Colnago V5Rs Monocoque carbon frame and the 685 g weight point in the same direction.
Those who want maximum efficiency uphill and on the flat
The combination of carbon, low weight and a reduced frontal area helps maintain high efficiency on the road. The structure is designed to make the most of power at every stage of the pedal stroke.
Cyclists focused on precise handling and a racing setup
The carbon fork, hydraulic disc brakes and 32 mm tyre clearance support precise, controlled handling. It is suited to riders who prioritise feel and immediate frame response.
Ideal
High-intensity road racing
It is designed for road racing use, where light weight, responsiveness and aerodynamics matter. The Shimano Dura-Ace groupset and hydraulic disc brakes complete a competition-ready setup.
Strada · Shimano Dura-Ace · Freni a disco
Very suitable
Fast routes with imperfect surfaces
The 32 mm tyre clearance allows the use of wider tyres, with benefits in grip and handling. On less regular tarmac it helps maintain control and speed.
Tire clearance 32 mm · Pneumatici larghi · Strada
Very suitable
Technical and intense training
The frame stiffness and the front-end response make it suitable for demanding training sessions. The geometry and construction are aimed at direct, stable handling.
Rigidità · Carbonio · Allenamento
Suitable
Custom setup with different wheelsets
The spec includes several configurations with Bora Ultra WTO 45, ENVE SES 4.5, Fulcrum Sharq 57 and Vision SC45 wheels. This allows the setup to be matched to the type of route.
Ruote Bora Ultra WTO 45 · Ruote ENVE SES 4.5 · Ruote Fulcrum Sharq 57 · Ruote Vision SC45
Professional road racer
Athlete looking for a modern racing platform
It is a carbon road bike designed for professionals and road use. The spec defines it as lightweight, aerodynamic and stiff.
The frame weight is 685 g, referring to the 485 size unpainted frame. It indicates a very light structure for racing use.
The spec lists Shimano Dura-Ace as the groupset. This is consistent with the model’s race-oriented setup.
It uses hydraulic disc brakes. This solution is intended to provide powerful, easily modulated braking on the road.
The fork is carbon, for disc brakes, with integrated cable routing and a Semi-Circular section. It is a choice aimed at precision and a clean front end.
The frame sizes are 420, 455, 485, 510, 530, 550 and 570. The choice should be checked according to the required configuration.
No, the spec states Without motor. It is therefore a non-assisted road bike.
Tyre clearance is 32 mm. This allows the use of wider tyres, which is useful for grip and control on the road.
