Before proceeding with the purchase, please contact us for availability of your size and chosen set-up.
Frame geometry on the attached sheet.
Bikes will be delivered assembled. However, may need a cycling mechanic for an optimally setup.
KIT V5RS DISC:
#001: Groupset Campagnolo Super Record WRL - Wheels Bora Ultra WTO 45
#002: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5
#003: Groupset Shimano Dura Ace Di2 R9270 - Wheels ENVE SES 4.5 - PowerMeter for Shimano Dura Ace Di2
#004: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50
#005: Groupset Shimano Dura Ace Di2 R9270 - Wheels Shimano Dura Ace C50 - PowerMeter for Shimano Dura Ace Di2
#006: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45
#007: Groupset Shimano Dura Ace Di2 R9270 - Wheels Vision SC45 - PowerMeter for Shimano Dura Ace Di2
#008: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Fulcrum Sharq 57
#009: Groupset Shimano ULTEGRA Di2 R8170 - Wheels Vision SC45
#010: Groupset Sram Red AXS E1 - Wheels Vision SC45 - PowerMeter for Sram Red eTap AXS
#011: Groupset Sram Force AXS E1 - Wheels Vision SC45
SIZE: 420 - 455 - 485 - 510 - 530 - 550 - 570

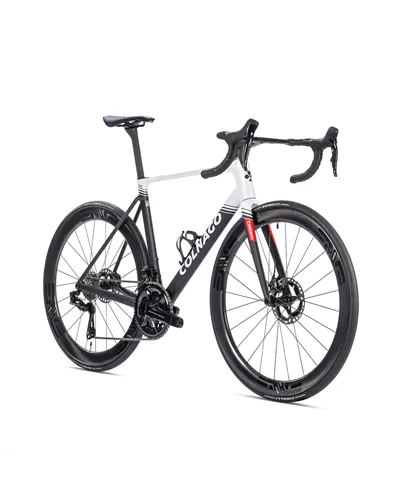

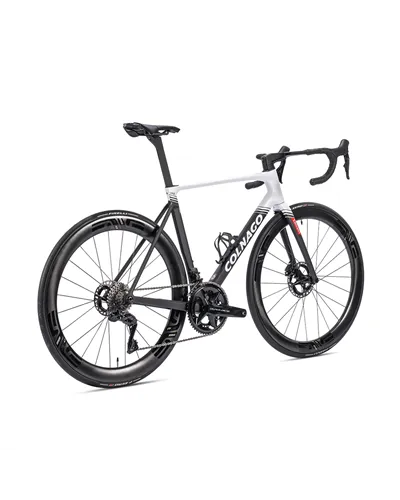

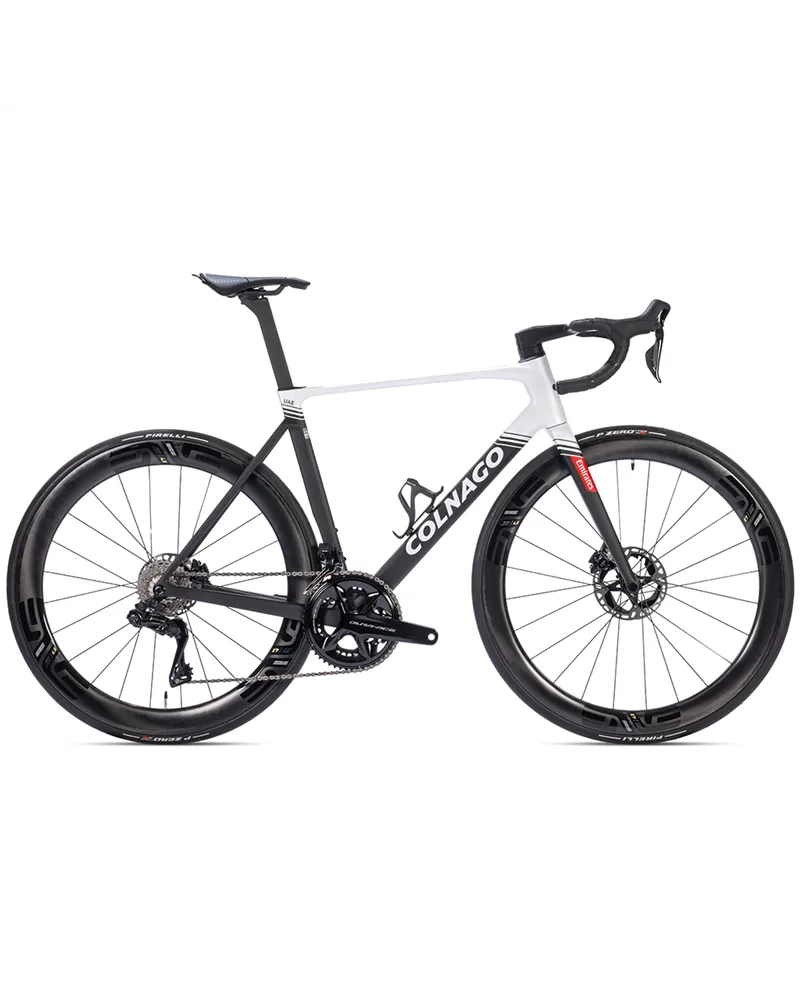

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogačar and his team-mates.
To obtain a winning bike, several factors must be balanced. It's not just a question of lightness, but also of aerodynamics, responsiveness and handling. The V5Rs is the result of the perfect balance of these elements - all performed with a single objective: to win.
FEATURES
The lightest Colnago ever
The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.
Thinner profiles
The experience gained with the Y1Rs has allowed us to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.
Narrow frontal area
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.
Stiff and responsive
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.
More precise steering
The V5Rs has a new fork that is lighter and more precise. The tyre clearance of 32 mm allows the use of wider tyres: more grip, better handling and speed on uneven terrain.
Absolute carbon quality.
Thanks to new lamination techniques, the arrangement of carbon fibres is studied and controlled in every area of the frame. The result is a lightweight, resistant and long-lasting structure.
The V5Rs has been designed to improve every aspect of riding: weight, aerodynamics, rigidity and handling, taking into account the real needs of racing. The only goal: to win.
TECHNICAL DETAILS
Weigth
Weigth: Size 485 unpainted frame: 685g
Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg
Frame kit
Frame (material): Colnago V5Rs Monocoque carbon frame
Fork (material, section notes): Carbon fork for disc brakes, integrated cables, Semi-Circular section.
Headset: 1"1/8 and 1"1/4 - SLT Treated Bearings
Seatpost: Standard Option: Carbon seatpost, 15mm offset - Sold separately: Carbon seatpost, 0 mm offset
Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
Data sheet
No customer reviews for the moment.
Professional road cyclist
Designed for road racing and seeking a very light, stiff and responsive carbon frame. The geometry and construction are oriented towards racing use.
Anyone wanting a carbon road bike
Suitable for those looking for a road bike with a Colnago V5Rs Monocoque carbon frame and hydraulic disc brakes. The structure is stiff and without a motor.
Anyone wanting greater precision and handling
Recommended for those prioritising precise steering, responsiveness and a reduced frontal area. The 32 mm tire clearance also helps with wider tyres.
Ideal
Road racing
Designed for road racing, with a lightweight and aerodynamic setup. The frame stiffness supports responsive handling.
Strada · Gara · Telaio in carbonio
Very suitable
Fast routes with wider tyres
The 32 mm tire clearance allows wider tyres. This helps grip and handling on rougher surfaces.
Tire clearance 32 mm · Pneumatici larghi · Guida precisa
Very suitable
Professional-spec build
The frame is designed for professionals and for advanced sporty use. The configuration with hydraulic disc brakes and a stiff frame follows this approach.
Professionisti · Freni a disco idraulico · Telaio rigido
Road professional
Experienced cyclist looking for a high-performance frame
It is a road racing bike for the Road discipline. The specification indicates it for professionals and for racing use.
The frame is a Colnago V5Rs Monocoque carbon frame. The structure is carbon fibre.
The weight of the unpainted Size 485 frame is 685 g. This figure refers to the frame only.
It uses hydraulic disc brakes. This solution is suitable for sporty road use.
The suspension is rigid and the motor is none. The bike is therefore a traditional road bike.
