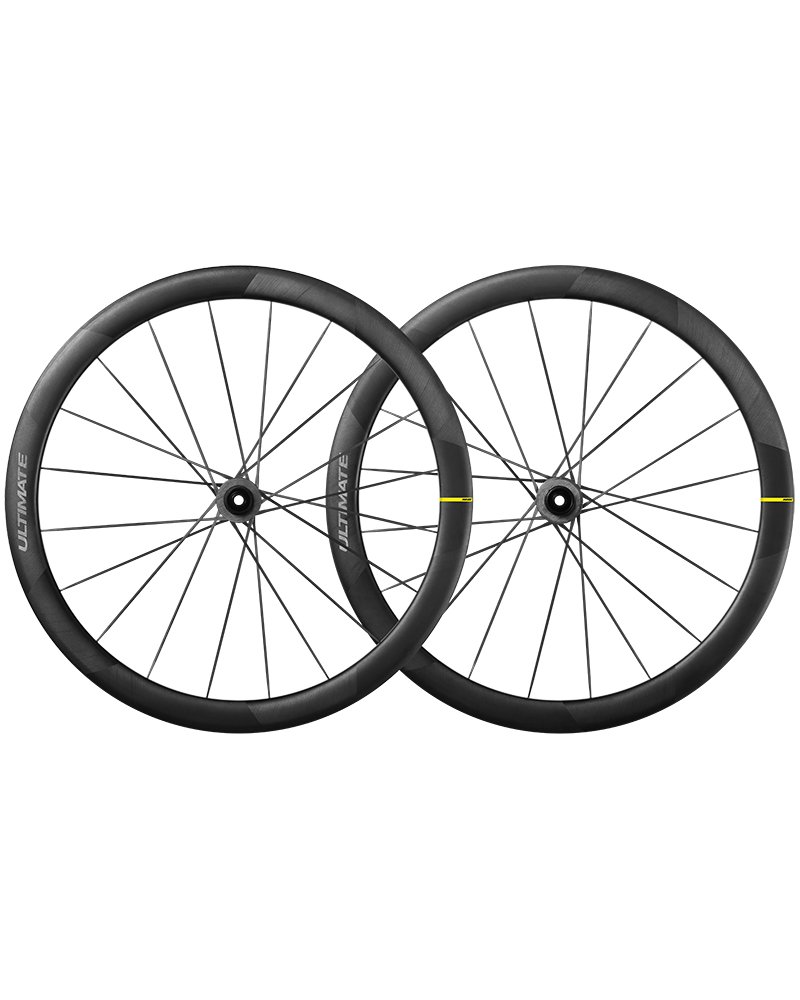

Mavic Cosmic Ultimate 45 UST DCL Wheelset

KEY BENEFITS

Ultralight and aero help you climb, sprint and accelerate faster?
Monobloc full carbon construction
45mm NACA rim profile seamlessly laced with elliptical spokes on high thin hub flanges

Stiffest wheel system in its class? with super low rolling resistance for high reactivity
Carbon spokes with high tensile resistance
Rim to rim (R2R) lacing system
Tapeless tubeless UST rim

Handmade in France
Manual molding and assembling process
Developed and manufactured in the Mavic carbon workshop in Annecy, France
Delivered with exclusive wheelbag

Ultimate is not just a name, it’s the word we reserve for pinnacle performance. And it’s now finally compatible with tubeless and clincher tyres and for disc brake bikes.
At just 1255g, this wheelset is the ultimate balance of lightweight, stiffness and aerodynamics.

The rim is engineered with a NACA-inspired, full-carbon profile that’s 45mm deep and 27mm wide. It’s made from a complex lay up that optimizes the stiffness to weight ratio. Its external layer takes our distinctive UD² finish.
The rim is not drilled, so it doesn't require the use of a rim tape to become airtight: a guarantee for a hassle free tubeless use.

The 20 elliptical carbon fiber spokes and high, thin carbon hub flanges offer a proven aero advantage.

The spokes are made with unidirectional carbon fibers, so they don’t stretch. The spokes run continuously from one edge of the rim to the other, through the hubs (R2R technology), creating one single spoke instead of two. This adds wheel stiffness and eliminates the need to mechanically attach the spokes to the hub.

Inside the carbon hub shells, the axles are paired with automatically adjusted sealed cartridge bearings for perfect preload. At the back, the ID360 freewheel system provides instant engagement (40 points of engagement = 9°) and low friction. The hubs are thru-axle compatible (12x100 up front and 12x142 at the back) and made for Center Lock brake rotors.

These wheels are designed, engineered and patented by Mavic in Annecy, France, and are 100% handmade in France.
They benefit from a lifetime warranty and from a generous crash replacement policy (upon on-line registration at Mavic.com/care) .

SPECIFICATIONS

Rims
Material: 100% carbon fiber with UD external layer
Height: 45 mm
Drilling: co-molded Fore drilled inserts
Disc brake specific profile
Valve hole diameter: 65 mm
Tire: UST Tubeless and tubetype
Internal width: 19 mm
ETRTO size: 622x19TC

Spokes
Material: unidirectional carbon fiber
Count: 20 front and rear
Lacing: front and rear crossed 2
R2R carbon spoke technology

Hubs
Front and rear bodies: Carbon
Axle material: aluminum
Front: Quick release and 12x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Hub available for Center Lock brake rotors only
Instant Drive 360 freewheel technology
QRM Auto bearing preload technology

Versions
Color: Black only
Disc standard: Center Lock® only
Freewheel: -

Delivered with
Computer magnet (99624501)
User guide

Intended use
ASTM CATEGORY 1 : road only
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
Maximum tyre pressure: 675bar/97PSI with a 23mm tyre - 38bar/55PSI with a 62mm tyre
Recommended tire sizes: 25 to 32 mm
Max Pressure: see indication on wheel and tire If they differ, use the lowest of the 2

Information on specified weight
The weight of the wheels is announced at +/-5%, in XD/XD-R and Center Lock version, without quick release, nor valve, nor rim tape
